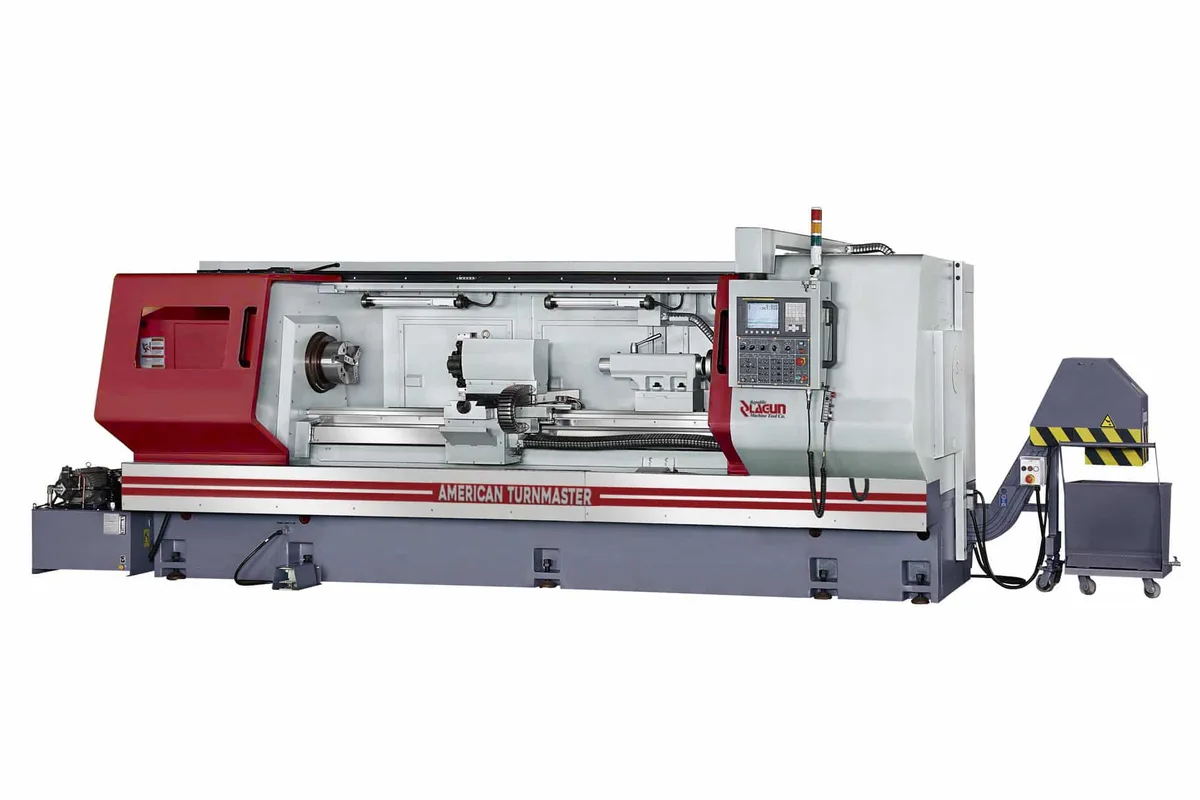

Republic Lagun AT-1860-G-TW-CNC
Image: lagun.com, Republic Lagun
Key Specifications
controlled axes
swing over bed
distance between centers
bed width
spindle bore
spindle speed range
How much does the Republic Lagun AT-1860-G-TW-CNC cost?
Price estimate
We do not have a price for the Republic Lagun AT-1860-G-TW-CNC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The longest of Republic Lagun's American Turnmaster CNC lathes, the AT-1860-G-TW-CNC has 57.08 in (1,450 mm) between centers under an 18.11 in (460 mm) swing. The maker presents it on one page with the shorter AT-1840-G-TW-CNC as a fully automated lathe with a two-range gear head.
Usable stroke is 53.15 in (1,350 mm) in Z with the 4 way tool post. Mounting the hydraulic P8 turret in the rear position brings it to 47.64 in (1,210 mm). The spindle runs 27-870 rpm in the low range and 871-2,500 rpm in the high, through a standard bore of Ø 2.36 in (60 mm) or an optional Ø 2.56 in (65 mm). The motor entry for this column does not agree with itself in the maker's table, so the rating is one to confirm; the AT-1840-G-TW-CNC is listed at 10 HP (7.5 kW) continuous.
What ships with the machine is spelled out: a rotating center MT.4, level pads, a tool set and box, a machine light, and the operation manual and parts list. The tailstock is manual, with a Ø 2.677 in (68 mm) quill and 6 in (153 mm) of travel, and the coolant pump is 1/4 HP (0.188 kW). A hydraulic oil pump of 1 HP (0.75 kW) or 2 HP (1.5 kW) appears only as an option, which matters if the turret or powered workholding is wanted.
On the floor this is a substantial lathe: 5,732 lb (2,600 kg) net and 6,834 lb (3,100 kg) gross on a bed 12 in (305 mm) wide. Rapid traverse is 394 ipm (10 m/min) in Z and 295 ipm (7.5 m/min) in X.
Full Specifications
| Parameter | Value |
|---|---|
| Controlled Axes | 2 axes |
| Swing Over Bed | 18.11 in (460 mm) |
| Distance Between Centers | 57.08 in (1,450 mm) (manual tailstock) |
| Bed Width | 12 in (305 mm) |
| Spindle Bore | STD. Ø 2.36 in (60 mm); OPT. Ø 2.56 in (65 mm) |
| Spindle Speed Range | L: 27-870 rpm / H: 871-2,500 rpm |
| Z Axis Travel | 53.15 in (1,350 mm) / 47.64 in (1,210 mm) (4 way tool post / Hyd. P8 turret, rear position) |
| Rapid Traverse X Z | 295 ipm (7.5 m/min) / 394 ipm (10 m/min) |
| Tailstock Quill Diameter | Ø 2.677 in (68 mm) |
| Tailstock Quill Travel | 6 in (153 mm) |
| Hydraulic Pump Motor | OPT. 1 HP (0.75 kW); OPT. 2 HP (1.5 kW) |
| Coolant Pump Motor | 1/4 HP (0.188 kW) |
| Machine Weight | 5,732 lb (2,600 kg) / 6,834 lb (3,100 kg) (net / gross, approx.) |
Specifications sourced from lagun.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 53.15 in (1,350 mm) of Z travel with the 4 way tool post
- Two geared ranges, 27-870 rpm and 871-2,500 rpm
- Supplied with rotating center, level pads, tool set, machine light and manuals
- Optional Ø 2.56 in (65 mm) spindle bore for larger bar
Limitations
- The maker's table gives no reliable motor rating or X travel for this column
- Manual tailstock on a 57.08 in (1,450 mm) center distance
- Top speed of 2,500 rpm limits small-diameter work
- 6,834 lb (3,100 kg) gross to rig and place
Best For
Frequently Asked Questions
01
53.15 in (1,350 mm) with the 4 way tool post, or 47.64 in (1,210 mm) with the hydraulic P8 turret in the rear position. Distance between centers with the manual tailstock is 57.08 in (1,450 mm).
02
The maker's list reads: CNC controller FANUC 0i Mate – TC, rotating center MT.4, level pads, tool set and box, machine light, and operation manual and parts list. The description on the same page mentions the FANUC CNC Series 0i-F Plus display with a 10.4 in screen.
03
Net weight is 5,732 lb (2,600 kg) and gross weight 6,834 lb (3,100 kg). The AT-1840-G-TW-CNC, on the shorter bed, is listed at 5,181 lb (2,350 kg) net.
04
The spindle has a low range of 27-870 rpm and a high range of 871-2,500 rpm, with a standard Ø 2.36 in (60 mm) bore and an optional Ø 2.56 in (65 mm) bore. The tailstock quill is Ø 2.677 in (68 mm) in diameter with 6 in (153 mm) of travel.
