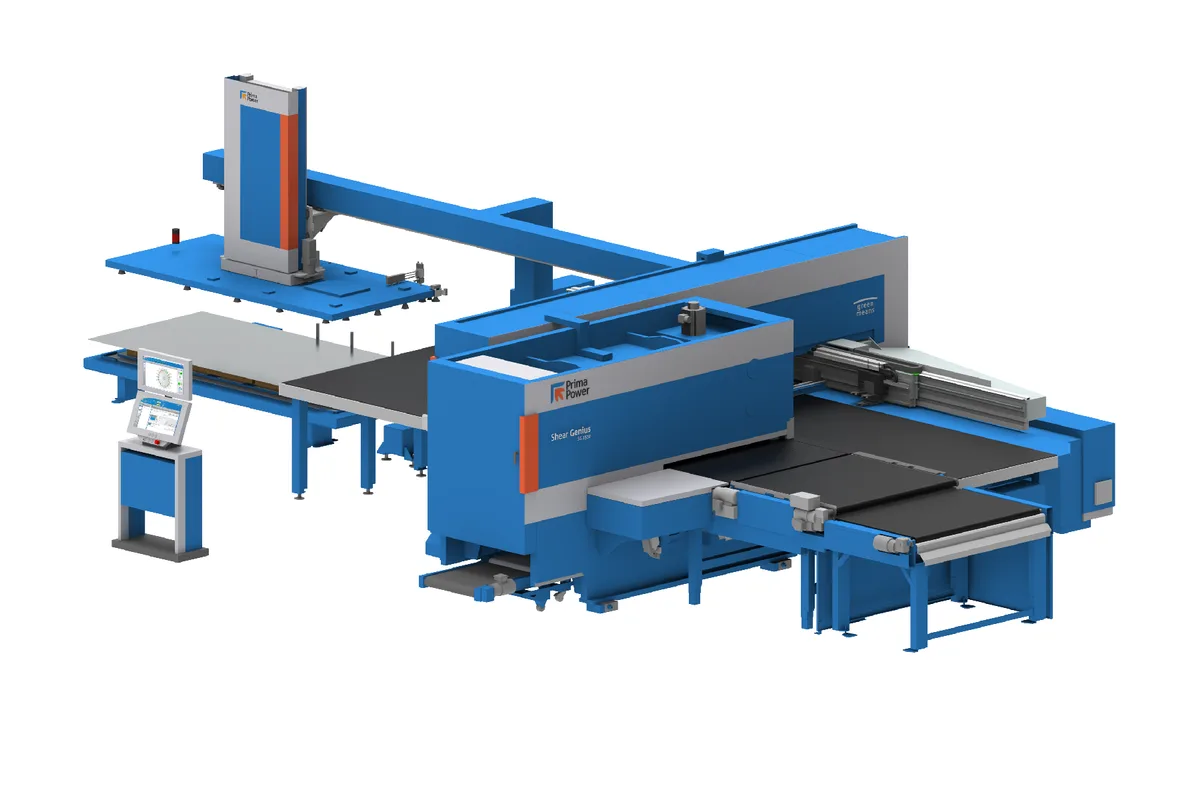

Prima Power Shear Genius 1530
Image: primapower.com, Prima Power
Key Specifications
max sheet size
max sheet thickness punching
max sheet thickness shearing
turret
max tools in turret
max index tools in turret
How much does the Prima Power Shear Genius 1530 cost?
Price estimate
We do not have a price for the Prima Power Shear Genius 1530 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Prima Power Shear Genius 1530 (SG1530) is a servo-electric turret punch press with an integrated right angle shear and automatic loading equipment. It takes sheet up to 3,074 mm x 1,565 mm (121.0 x 61.6 in) and turns it into finished rectangular parts: loaded, punched, formed, sheared and sorted in one process.
The thickness rows matter more here than on a plain punch press, because the shear has its own limits. Punching goes to 8 mm (0.31 in). Shearing is limited to 5 mm (0.20 in) in aluminium, 4 mm (0.16 in) in mild steel and 3 mm (0.12 in) in stainless steel. A part thicker than the shear limit can be punched but has to be separated another way.
Two performance levels are offered. SG Pure has a ram force of 250 kN (25 US Tons), a positioning speed of 127 m/min and an index tool rotation speed of 180 rpm. SG Dynamic has 300 kN (33 US Tons), 150 m/min and 250 rpm. Maximum hit speed is printed as 700 1/min for Pure and 1000 1/min for Dynamic.
The turret is customized, with a maximum of 400 tools and 384 index tools. Raw material is loaded with sheet edge measurement, and a trim strip destroyer keeps continuous production moving. Energy use is managed in three power modes: run, stand by and idle. Options can be installed later as upgrades, so equipment can be added after installation.
Full Specifications
| Parameter | Value |
|---|---|
| Max Sheet Size | 3,074 mm x 1,565 mm (121.0 x 61.6 in) |
| Max Sheet Thickness Punching | 8 mm (0.31 in) |
| Max Sheet Thickness Shearing | Aluminium 5 mm (0.20 in), Mild steel 4 mm (0.16 in), Stainless steel 3 mm (0.12 in) |
| Turret | Customized |
| Max Tools in Turret | 400 |
| Max Index Tools in Turret | 384 |
| Ram Force | SG Pure: 250 kN (25 US Tons); SG Dynamic: 300 kN (33 US Tons) |
| Max Hit Speed | SG Pure: 700 1/min; SG Dynamic: 1000 1/min |
| Positioning Speed | SG Pure: 127 m/min; SG Dynamic: 150 m/min |
| Index Tool Rotation Speed | SG Pure: 180 rpm; SG Dynamic: 250 rpm |
Specifications sourced from primapower.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Punching, forming, shearing and sorting in one process on 3,074 mm x 1,565 mm sheet
- SG Dynamic: 300 kN (33 US Tons), 150 m/min positioning and 250 rpm index rotation
- Customized turret with up to 400 tools and 384 index tools
- Raw material loading with sheet edge measurement
- Options can be installed later as machine upgrades
Limitations
- Shearing limited to 4 mm (0.16 in) in mild steel and 3 mm (0.12 in) in stainless steel
- SG Pure positions at 127 m/min and hits at 700 1/min
- The right angle shear cuts straight edges only
- The Pure ram force is printed as 250 kN (25 US Tons), two figures that do not convert to each other; confirm it
Best For
Frequently Asked Questions
01
Punching: up to 8 mm (0.31 in). Shearing: aluminium 5 mm (0.20 in), mild steel 4 mm (0.16 in) and stainless steel 3 mm (0.12 in). The shear limit is the one that governs parts that have to be cut loose.
02
SG Pure has a 250 kN (25 US Tons) ram, 127 m/min positioning speed and 180 rpm index tool rotation. SG Dynamic has 300 kN (33 US Tons), 150 m/min and 250 rpm. Hit speed is listed as 700 1/min against 1000 1/min.
03
A servo-electric turret punch press with integrated right angle shear and automatic loading equipment. The shear has programmable blade height and automatic stroke depth adjustment. The concept combines loading, punching, forming, shearing and part sorting.
04
The customized turret holds a maximum of 400 tools, and a maximum of 384 index tools. Prima Power builds its turrets in two constructions, 16 and 20 stations, with Multi-Tools and a rotating Auto-Index system.
