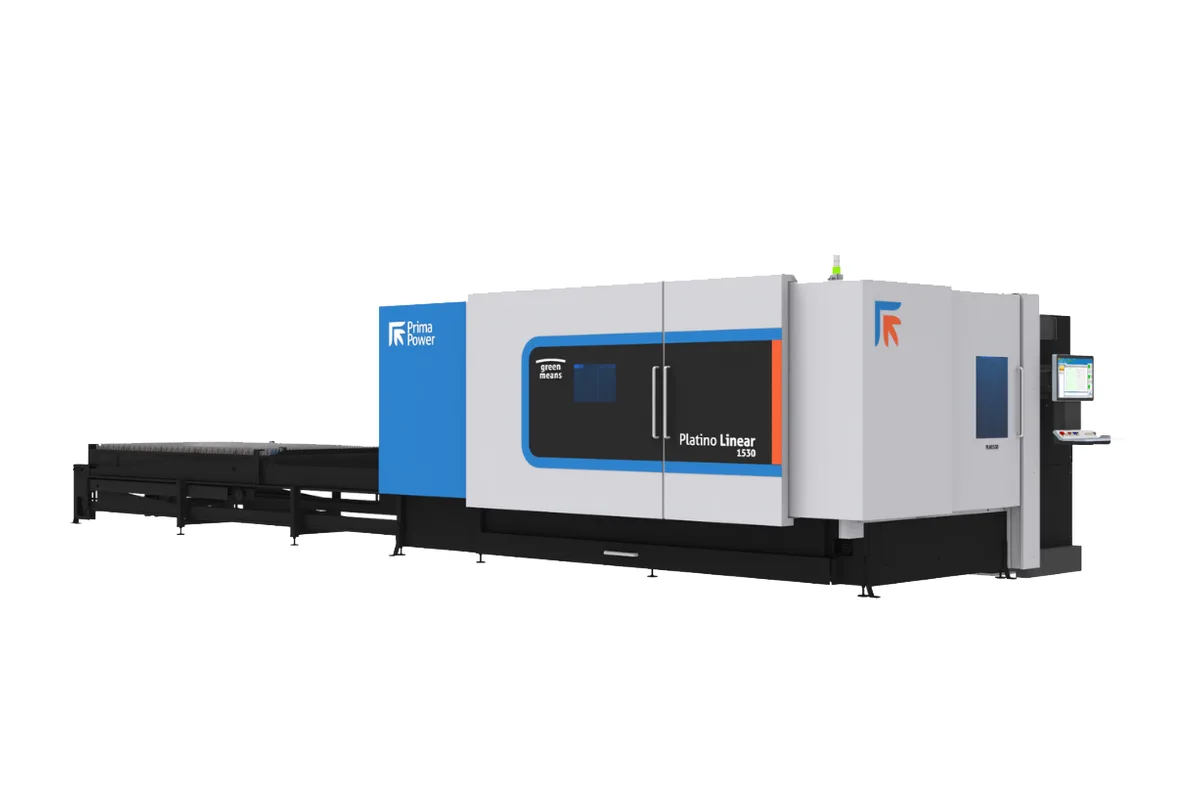

Prima Power Platino Linear 1530
Image: primapower.com, Prima Power
Key Specifications
x axis travel
y axis travel
z axis travel
axis speed
trajectory speed
positioning accuracy pa
How much does the Prima Power Platino Linear 1530 cost?
Price estimate
We do not have a price for the Prima Power Platino Linear 1530 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Prima Power Platino Linear 1530 is a 2D fiber laser cutting machine with a working area of X 3,048 mm (120.0 in), Y 1,524 mm (60.0 in) and Z 150 mm (5.9 in). Prima Power describes it as the latest addition to its 2D laser range, and the name gives away the main design decision: the axes are moved by a linear drive.
That drive is maintenance-free and, according to Prima Power, raises uptime compared with conventional drive systems, with the gain showing most on thin materials. Axis speed is 100 m/min and trajectory speed 140 m/min. Position accuracy (Pa) and repeatability (Ps) are both 0.03 mm to VDI/DGQ 3441. Three fiber sources are offered: 4000 W, 6000 W or 8000 W.
The frame is synthetic granite, chosen for vibration absorption and thermal stability, and the carriage is aluminum to keep the moving mass down. The cutting head is adaptive, with a single focusing lens for all materials. The cabin opens along the full length of the side for loading sheet, with a front door for maintenance.
Running costs are a stated aim. Prima Power quotes gas savings of up to 40% with the ECO-TOUCH Cut and Gas Mixer options, up to 96% sheet utilization, and a footprint reduced by 22%. Those two gas functions are options, so check what the quoted machine includes. The table gives no cutting thickness for any source; ask for cutting data at the power on the quotation. A larger Platino Linear 2040 takes 4,064 mm by 2,032 mm sheet.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,048 mm (120.0 in) |
| Y Axis Travel | 1,524 mm (60.0 in) |
| Z Axis Travel | 150 mm (5.9 in) |
| Axis Speed | 100 m/min |
| Trajectory Speed | 140 m/min |
| Positioning Accuracy Pa | 0.03 mm (VDI/DGQ 3441) |
| Repeatability Ps | 0.03 mm (VDI/DGQ 3441) |
| Laser Source | Fiber, 4000 W, 6000 W or 8000 W |
Specifications sourced from primapower.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Maintenance-free linear drive with 100 m/min axis speed and 140 m/min trajectory speed
- Position accuracy and repeatability of 0.03 mm to VDI/DGQ 3441
- Fiber sources of 4000 W, 6000 W or 8000 W
- Synthetic granite frame and aluminum carriage
- Cabin with full-length side opening for sheet loading and a front door for maintenance
Limitations
- No maximum cutting thickness is published for any of the three sources
- Source power stops at 8000 W
- Working area of 3,048 x 1,524 mm; larger sheet needs the Platino Linear 2040
- The ECO-TOUCH Cut and Gas Mixer gas-saving functions are options
Best For
Frequently Asked Questions
01
The working area is X 3,048 mm (120.0 in) by Y 1,524 mm (60.0 in), with 150 mm (5.9 in) of Z. Prima Power offers the machine in two sizes, 1530 and 2040; the Platino Linear 2040 has a working area of 4,064 mm by 2,032 mm.
02
Axis speed is 100 m/min and trajectory speed is 140 m/min. The axes use a highly dynamic, maintenance-free linear drive, which Prima Power says gives high productivity especially when processing thin materials.
03
Three fiber laser sources are listed: 4000 W, 6000 W and 8000 W. The technical data does not state a maximum thickness for any of them, so request cutting tables for the materials you run before choosing the power.
04
Yes. Prima Power describes it as a modular solution that can be integrated with a wide range of automation modules for loading, unloading, picking, sorting and stacking sheets and parts, and says different automation types can be added as production changes.
