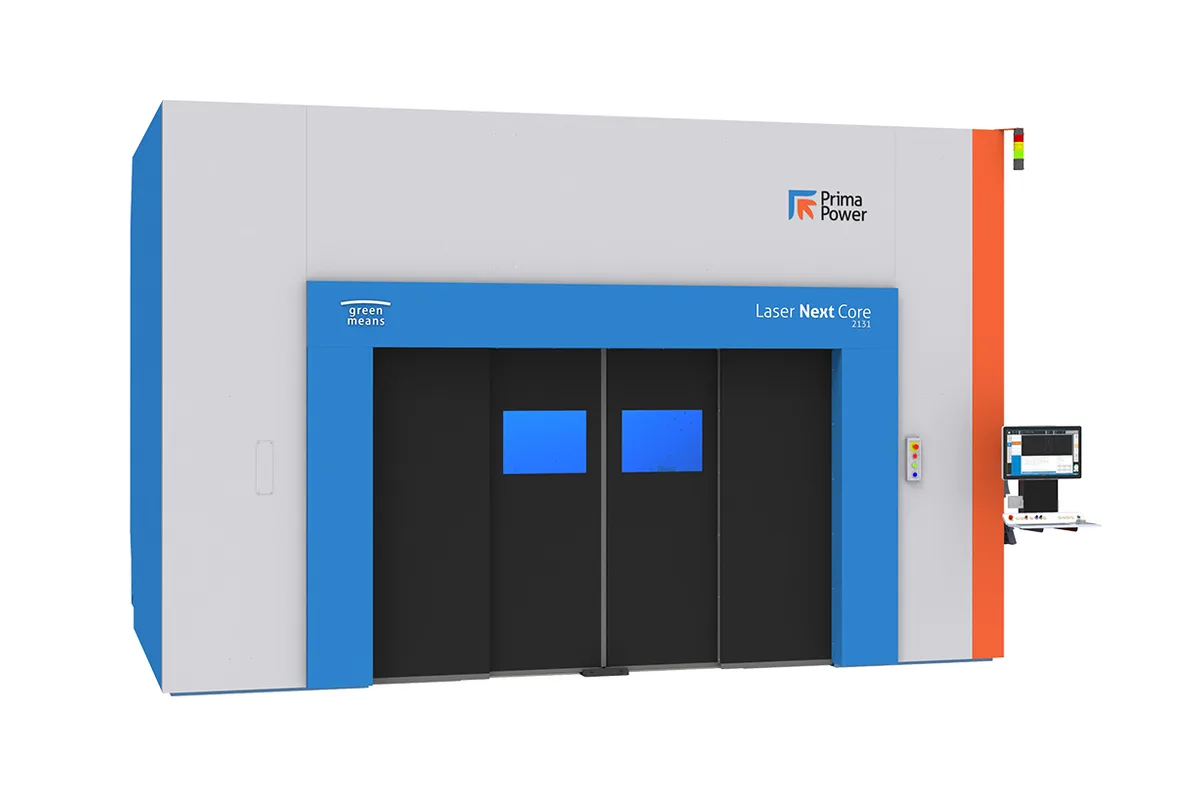

Prima Power Laser Next Core 2131
Image: primapower.com, Prima Power
Key Specifications
x axis travel
y axis travel
z axis travel
a axis range
b axis range
c axis stroke
How much does the Prima Power Laser Next Core 2131 cost?
Price estimate
We do not have a price for the Prima Power Laser Next Core 2131 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Prima Power Laser Next Core 2131 is the compact 3D fiber laser of the Laser Next line, aimed at job shops and small to medium batches. Axis strokes are X 3,160 mm (124.4 in), Y 2,100 mm (82.7 in) and Z 750 mm (29.5 in).
Where the larger Laser Next machines chase cycle time, this one is set up for quick changeovers. Programming is described as one-click from CAM, and the operator has a graphical teach panel beside the Prima Power HMI. Head offset is compensated automatically through the local C axis in the head, which has a stroke of ±12 mm (±0.47 in). The tables are height-adjustable with two positions, which helps when loading parts of different depth by hand.
Speeds are moderate: 90 m/min on X, Y and Z and 155.9 m/min on trajectory. The drives are maintenance-free linear drives with direct motors on the head. A is 360° and B ±135°. Accuracy (Pa, Ps) is 0.03 mm to VDI 3441.
The process range is wide for the size. Prima Power lists 2D and 3D laser cutting of stainless steel, aluminum and titanium, and an optional welding head for lap and butt joints. A safe cutting nozzle is said to save up to 30% nitrogen. The source is 3,000 W – 4,000 W. Prima Power also claims a working volume 58% larger than others in its class with a footprint reduced by 25%; it gives no floor dimensions on the page, so ask for the layout drawing.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,160 mm (124.4 in) |
| Y Axis Travel | 2,100 mm (82.7 in) |
| Z Axis Travel | 750 mm (29.5 in) |
| A Axis Range | 360° |
| B Axis Range | ±135° |
| C Axis Stroke | ±12 mm (±0.47 in) |
| Axis Speed Xyz | 90 m/min |
| Trajectory Speed | 155.9 m/min |
| Accuracy Pa Ps | 0.03 mm (VDI 3441) |
| Laser Source | Fiber, 3,000 W – 4,000 W |
Specifications sourced from primapower.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Axis strokes of 3,160 x 2,100 x 750 mm in a compact machine
- One-click programming by CAM and a graphical teach panel
- Automatic head-offset compensation by the local C axis
- Dual-position height-adjustable tables
- Optional welding head for lap and butt joints
Limitations
- Axis speed of 90 m/min, below the 120 m/min of the Laser Next 2141
- Z stroke of 750 mm (29.5 in), against 1,020 mm on the Laser Next 2141
- The welding head is an option
- The head axis speed is not printed in a usable unit on the maker's page
Best For
Frequently Asked Questions
01
X 3,160 mm (124.4 in), Y 2,100 mm (82.7 in) and Z 750 mm (29.5 in). The head axes cover A 360° and B ±135°, with a C stroke of ±12 mm (±0.47 in).
02
The Laser Next 2141 is larger and faster, with 4,140 mm of X, 1,020 mm of Z and 120 m/min axes. The Laser Next Core 2131 has 3,160 mm of X, 750 mm of Z and 90 m/min axes, and is aimed at job shops with small to medium batches.
03
Prima Power lists 2D and 3D laser cutting of stainless steel, aluminum and titanium. An optional welding head is available for lap and butt joint welding. The fiber laser source is 3,000 W – 4,000 W.
04
X, Y and Z move at 90 m/min, and trajectory speed is 155.9 m/min. The linear drives are maintenance-free, with direct motors on the head axes.
