HNK HPM-40H (40x100)
Key Specifications
Max Spindle
Spindle Taper
Table Size
Spindle Power
distance spindle nose to table
x axis travel
How much does the HNK HPM-40H (40x100) cost?
Price estimate
We do not have a price for the HNK HPM-40H (40x100) that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The HNK HPM-40H (40x100) is the largest die and mold machine HNK lists, with a 4,000 x 10,000 mm (157.5 x 393.7 in) table and 10,250 mm (403.5 in) of X travel. No other HPM-H model reaches ten metres.
Ten metres at 6,000 rpm is an unusual combination. Machines this long are normally heavy-duty types with slow, large spindles. This one is for long tools that need a fine surface: wing-skin and spar lay-up molds, wind-blade root tooling, rail-car side molds, and the largest stamping dies. The table carries 35,000 kg (77,160 lb).
Cross travel is 6,000 mm (236.2 in). The column-distance cell is not printed cleanly on the maker's page for either 40H model and is omitted. Height is the same as on every size from the HPM-30H up: 1,500 mm (59.1 in) of crossrail travel, 800 mm (31.5 in) of ram travel in a 400 x 400 mm (15.7 x 15.7 in) ram, and 2,000 mm (78.7 in) under the spindle, 2,350 mm (92.5 in) in braces.
Spindle taper is ISO No.50, spindle diameter Ø100 mm (3.9 in), and the motor 22/25 kW (29.5/33.5 hp), cont/30min, with 8,000 rpm shown in braces after the speed. Fanuc 31i-B and Siemens 840D are the controls.
Full Specifications
| Parameter | Value |
|---|---|
| Distance Spindle Nose to Table | 2,000 mm (78.7 in) {2,350 mm (92.5 in)} |
| X Axis Travel | 10,250 mm (403.5 in) |
| Y Axis Travel | 6,000 mm (236.2 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| W Axis Travel | 1,500 mm (59.1 in) |
| Table Size | 4,000 x 10,000 mm (157.5 x 393.7 in) |
| Max Table Load | 35,000 kg (77,160 lb) |
| Spindle Taper | ISO No.50 |
| Spindle Diameter | Ø100 mm (3.9 in) |
| Ram Size | 400 x 400 mm (15.7 x 15.7 in) |
| Max Spindle Speed | 6,000 rpm {8,000 rpm} |
| Spindle Motor Power | 22/25 kW (29.5/33.5 hp) (cont/30min) |
| CNC Control | Fanuc 31i-B, Siemens 840D |
Specifications sourced from en.hnkkorea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 10,250 mm (403.5 in) of X travel, the longest in the HPM-H series
- 4,000 x 10,000 mm (157.5 x 393.7 in) table
- 6,000 rpm on a ten-metre machine, 8,000 rpm in braces
- 35,000 kg (77,160 lb) table load
Limitations
- Column distance is not given cleanly in the maker's table
- Load is the same 35,000 kg as on the 40x80
- Finishing-class 22/25 kW (29.5/33.5 hp) motor
Best For
Frequently Asked Questions
01
The table is 10,000 mm (393.7 in) long and 4,000 mm (157.5 in) wide, and travels 10,250 mm (403.5 in) in X. The HPM-40H (40x80) has an 8,000 mm (315.0 in) table and 8,250 mm (324.8 in) of X.
02
The maximum allowable weight on the table is 35,000 kg (77,160 lb). It is a starred row in HNK's table, and starred rows can be changed according to the customer's requirements.
03
Yes. The HPM-40M (40x100) carries 60,000 kg (132,275 lb) with a Ø130 mm (5.1 in) spindle, and the HPM-40L (40x100) carries 80,000 kg (176,367 lb) with a Ø160 mm (6.3 in) spindle at 1,000 rpm.
04
6,000 mm (236.2 in), which is two metres more than the table width. Z on the ram is 800 mm (31.5 in) and W on the crossrail 1,500 mm (59.1 in).
More from HNK
Other Vertical Machining Centers (VMC)
Feeler SVW-2825

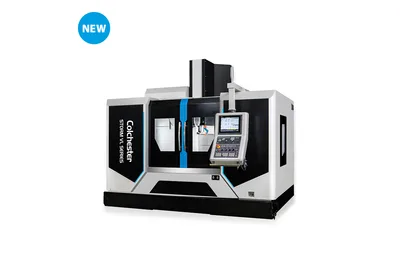

Colchester Storm VL-800
DN Solutions VCF 5500 UL
Makino PS105

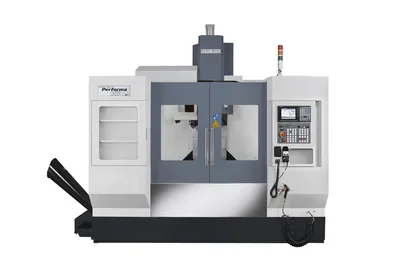

Akira Seiki V5XP
