Danobat Mikroturn 100

Specs verified 2026-10-05 · danobat.com Updated 2026-10-05

Key Specifications

Max Spindle

4,000 rpm

Accuracy

1 µm (hydrostatic guideways, controlled by linear scales)

Repeatability

0.2 µm (hydrostatic guideways, controlled by linear scales)

max turning diameter

380 mm (15 in) (without tailstock)

max turning capacity between centers

Ø200 x 350 mm (Ø7.8 x 13.7 in)

control

Siemens Sinumerik One

How much does the Danobat Mikroturn 100 cost?

Price estimate

Uncertain

We do not have a price for the Danobat Mikroturn 100 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

At 6.5 m² (70 sqft), the Danobat Mikroturn 100 has the smallest footprint of the six horizontal Mikroturn hard turning lathes. It turns hardened parts up to 380 mm (15 in) in diameter without a tailstock and Ø200 x 350 mm (Ø7.8 x 13.7 in) between centers, on a 4,000 rpm spindle under a Siemens Sinumerik One control.

Why would a shop hard turn instead of grind? Flexibility, mostly. A single-point tool follows any contour the program describes, and Danobat notes that ID and OD features can be combined in one clamping, which removes re-clamping error. Changeover and set-up take under 30 minutes in many cases by the maker's account. A grinder needs a wheel dressed to each form.

Hard turning only replaces grinding if the machine holds grinding-class accuracy, and that is what the hydrostatic design is for. Danobat guarantees a runout error of ≤ 0.1 µm on the main spindle. Slides float on hydrostatic guideways with 1 µm positioning and 0.2 µm repeatability, and the control resolves 0.01 µm. The base and spindle housing are natural granite, isolated from the metal frame by vibration absorbing mounts.

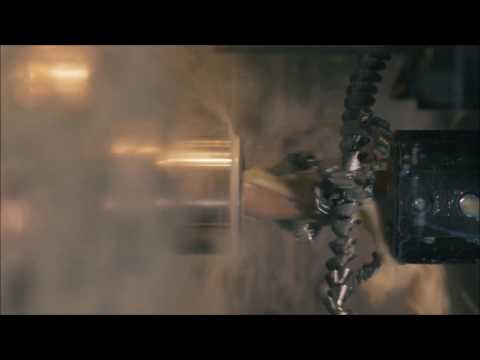

The range can be extended on the machine itself. Listed options include live tooling, a grinding spindle and stone finishing, a part probe, tool measurement, a tool wear measurement camera system and in-process tool life measurement. For larger discs the Mikroturn 100 XLD turns up to 610 mm (24 in), and for shafts the Mikroturn 100 XLS takes Ø240 x 1,000 mm (Ø9.4 x 39.3 in) between centers.

Full Specifications

Parameter	Value
Max Turning Diameter	380 mm (15 in) (without tailstock)
Max Turning Capacity Between Centers	Ø200 x 350 mm (Ø7.8 x 13.7 in)
Max Spindle Speed	4,000 rpm
CNC Control	Siemens Sinumerik One
Floor Space	6.5 m² (70 sqft)
Max Workpiece Hardness	up to 70 HRC
Main Spindle Runout	≤ 0.1 µm (hydrostatic main spindle, guaranteed)
Positioning Accuracy	1 µm (hydrostatic guideways, controlled by linear scales)
Repeatability	0.2 µm (hydrostatic guideways, controlled by linear scales)
Control Resolution	0.01 µm

Specifications sourced from danobat.com — verified 2026-10-05

Strengths & Limitations

Strengths

Smallest floor space in the horizontal range at 6.5 m² (70 sqft)
380 mm (15 in) turning diameter and 4,000 rpm in that footprint
Control resolution of 0.01 µm on Siemens Sinumerik One
Guaranteed main spindle runout error of ≤ 0.1 µm from a wear-free hydrostatic spindle
Changeover and set-up in under 30 minutes in many cases, according to Danobat
Options for live tooling, a grinding spindle and stone finishing on the same machine

Limitations

Between-centers capacity ends at Ø200 x 350 mm (Ø7.8 x 13.7 in), so long shafts need the Mikroturn 100 XLS
Chucking diameter of 380 mm (15 in) is well short of the 610 mm (24 in) of the Mikroturn 100 XLD
Tailstock, steady rest, probes and live tooling are customisation items
The page gives no spindle power, machine weight or utility data for planning the installation

Best For

Bearing rings, gears and bushes up to 380 mm (15 in) finished after hardening Small and medium batches that change over several times a shift Parts with complex contours or mixed ID and OD features in one clamping Cells where floor space is the binding constraint

Frequently Asked Questions

01 What are the capacities of the Mikroturn 100?

Maximum turning diameter without tailstock is 380 mm (15 in). Between centers the limit is Ø200 x 350 mm (Ø7.8 x 13.7 in). Spindle speed is 4,000 rpm, the control is Siemens Sinumerik One and the floor space is 6.5 m² (70 sqft).

02 What hardness can the Mikroturn 100 machine?

Danobat describes the Mikroturn as a machine for hardened workpieces up to 70 HRC and cites high material removal rates even in hardened steel or carbide. Tool grade and geometry for a given material are an application question; the page offers no cutting data.

03 Why is the Mikroturn 100 built with hydrostatic bearings?

A film of oil separates the moving elements, so there is no metal-to-metal contact in the spindle or the guideways. Danobat lists the results as no wear, good damping, high stiffness regardless of speed and good thermal stability. The measurable outcomes it publishes are ≤ 0.1 µm spindle runout, 1 µm positioning and 0.2 µm repeatability.

04 Can the Mikroturn 100 also grind?

A grinding spindle is listed under additional finishing options, together with stone finishing. For work where turning and grinding are both needed on every part, Danobat sells a dedicated hybrid: the MTG-100, with a 380 mm (14.9 in) turning diameter and Ø130 x 350 mm (5.1 x 13.8 in) grinding capacity.

05 Which Mikroturn should I choose for larger or longer parts?

For diameter, the Mikroturn 100 XLD turns up to 610 mm (24 in) at 2,000 rpm. For length, the Mikroturn 100 XLS handles Ø240 x 1,000 mm (Ø9.4 x 39.3 in) between centers. Each takes more floor: 8.6 m² (93 sqft) for the Mikroturn 100 XLD and 9.6 m² (103 sqft) for the Mikroturn 100 XLS.
