PAMA Speedram 2
This model was not found in PAMA's current lineup when we checked on 2026-10-03 . It may be a superseded or older model; the specifications below are as we last recorded them.
Key Specifications
X Travel
Y Travel
Z Travel
Spindle Power
Accuracy
spindle diameter
How much does the PAMA Speedram 2 cost?
Estimated price range
Our best estimate for a cnc boring machine in this class — not a quote from PAMA. Configuration moves it a long way.
Overview

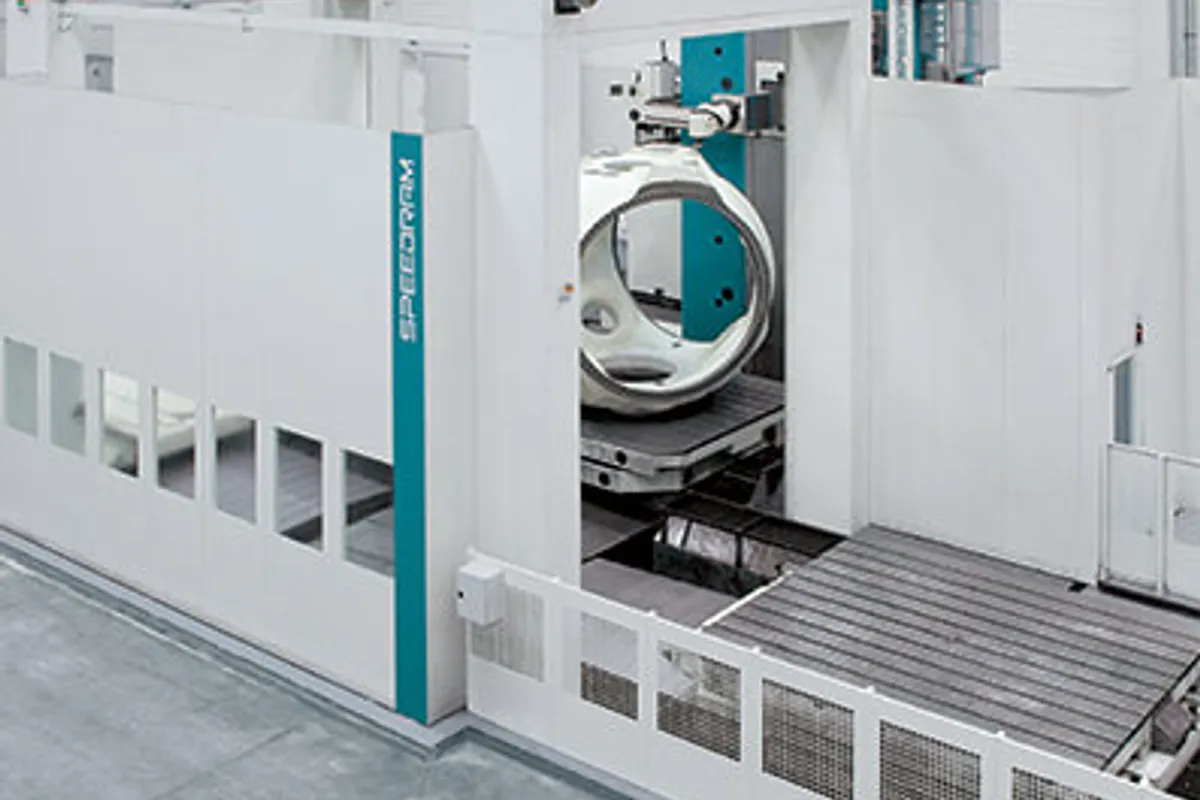

The PAMA Speedram 2 is a horizontal boring mill that works over floor plates, with hydrostatic guideways on all linear axes and a listed capacity of up to 60,000 kg (132,277 lb) on those plates. PAMA's current lineup does not include it, so this is a reference page for an older machine.
Hydrostatic guideways on every linear axis are the main thing the listed figures establish. The slides ride on an oil film with no metal-to-metal contact, which gives high damping under heavy boring and milling loads and little wear on the ways, at the cost of a hydraulic system that has to be kept clean and at temperature. On a machine of this age the condition of that system deserves an inspection of its own. Positioning accuracy is listed as +/-0.008 mm per 1,000 mm.
Work is carried on floor plates or on an optional rotary table of up to 4,000 x 4,000 mm. A facing head of up to 1,200 mm diameter is also optional. The tool magazine is configurable between 60 and 120 tools, Z travel between 1,500 and 3,000 mm (59.1 and 118 in), and the machine itself is listed at 75 T.
For the spindle and the main travels the listed figures disagree with themselves: spindle diameter, speed and power, X and Y travel and quill travel each appear with two different values. They are not repeated here. Anyone assessing a Speedram 2 should take those from the machine's nameplate and build documents.
Full Specifications
| Parameter | Value |
|---|---|
| Spindle Diameter | 130 mm (5.1 in) |
| Spindle Speed | 5 - 3,000 RPM |
| Spindle Motor Power | 37 kW (50 HP) |
| Spindle Quill Travel | 800 mm (31.5 in) |
| X-Axis Travel | 3,000 - 10,000 mm (118 - 394 in), configurable |
| Y-Axis Travel | 2,500 mm (98.4 in) |
| Z-Axis Travel | 1,500 - 3,000 mm (59.1 - 118 in), configurable |
| Guideway Type | Hydrostatic (all linear axes) |
| Rotary Table | Optional, up to 4,000 x 4,000 mm |
| Max Workpiece Weight | Up to 60,000 kg (132,277 lb) on floor plates |
| Facing Head | Optional, up to 1,200 mm diameter |
| Positioning Accuracy | +/-0.008 mm per 1,000 mm |
| CNC Control | Siemens SINUMERIK 840D sl |
| Tool Magazine | 60-120 tools (configurable) |
| Machine Weight | 75 T |
| Spindle Size | 6.2992" |
| X Horiz Tvl of Col | 433.07" |
| Y Vert Tvl of Head | 110.24" |
| Power | 87.2 hp |
| RPM | 1,800 RPM |
| Table W | 98.425" |
| Table L | 78.74" |
| Z Spdl Tvl | 27.559" |
| CNC Control | CNC (CNC SIEMENS 880) |
Specifications sourced from machinetools.com — verified 2026-03-28
Strengths & Limitations
Strengths
- Hydrostatic guideways on all linear axes for damping under heavy cuts
- Floor plates listed for workpieces up to 60,000 kg (132,277 lb)
- Optional rotary table of up to 4,000 x 4,000 mm
- Tool magazine configurable from 60 to 120 tools
- Listed positioning accuracy of +/-0.008 mm per 1,000 mm
Limitations
- Not in PAMA's current lineup; the listed figures describe an older machine
- The listed figures conflict on spindle diameter, speed and power and on X, Y and quill travel
- The rotary table and the facing head (up to 1,200 mm diameter) are options
- Hydrostatic guideways depend on a hydraulic supply that needs checking on any older machine
- At 75 T the machine needs a purpose-built foundation
Best For
Frequently Asked Questions
01
PAMA's current lineup does not include the Speedram 2, so it is best treated as an older model. The listed figures, such as hydrostatic guideways on all linear axes and floor plates for up to 60,000 kg (132,277 lb), should be confirmed against the individual machine.
02
Up to 60,000 kg (132,277 lb) on floor plates in the listed figures. An optional rotary table of up to 4,000 x 4,000 mm is listed as well, but no load rating is given for it, so the table capacity must be confirmed separately.
03
Hydrostatic guideways on all linear axes. The slides float on pressurised oil, which damps cutting vibration and avoids wear on the ways. The listed positioning accuracy is +/-0.008 mm per 1,000 mm.
04
The listed figures are inconsistent here. Spindle diameter, speed and power and the X, Y and quill travels each appear with two different values, so none is quoted on this page. Z travel is listed as 1,500 - 3,000 mm (59.1 - 118 in), configurable. Check the remaining values on the machine's nameplate and documentation.
