Danobat CG-1000

Q: How much does the Danobat CG-1000 cost?

The price estimate for the Danobat CG-1000 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/danobat-cg-1000#price; the request is passed to Danobat or an authorised dealer.

Specs verified 2026-10-05 · danobat.com Updated 2026-10-05

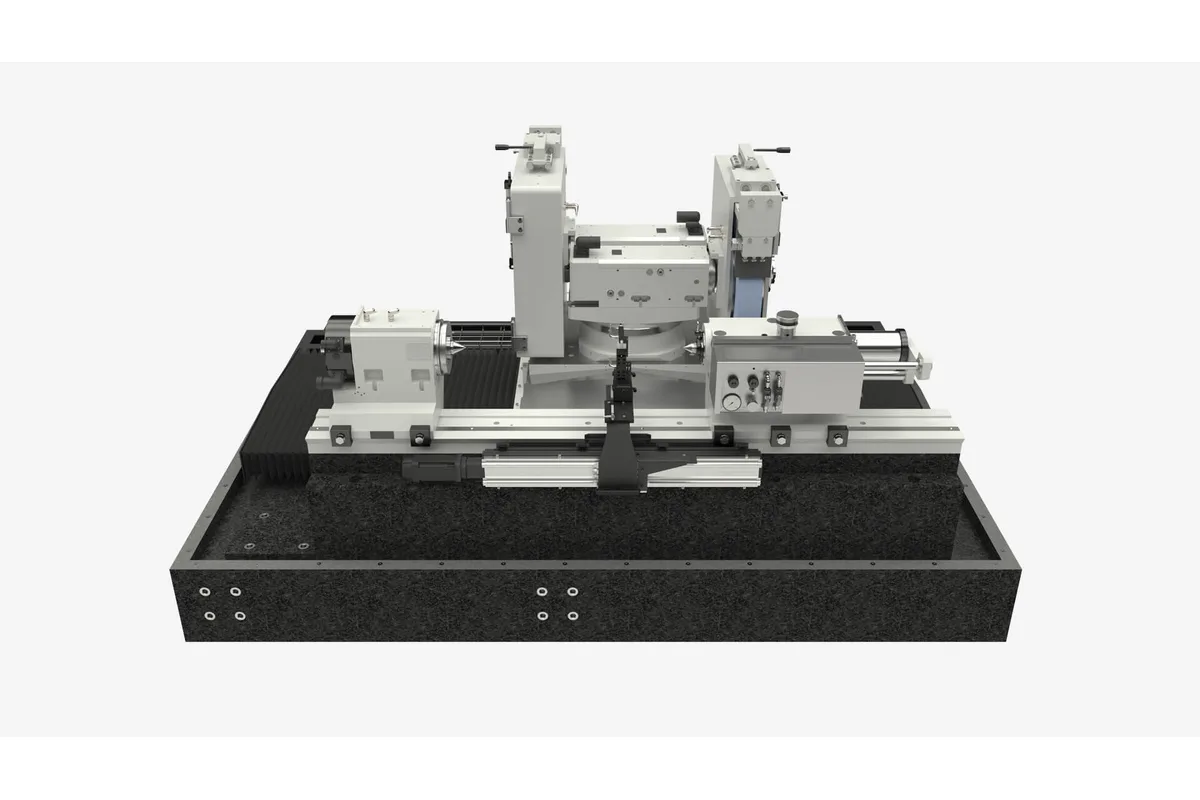

Danobat CG series cylindrical grinding machine, shown without enclosure

Image: danobat.com, Danobat

Key Specifications

distance between centers

1,000 mm (39.37 in)

max grinding diameter

440 mm (17 in)

max weight between centers

500 kg (1,100 lb)

wheel size

Ø610 x 160 mm (Ø24 x 6.29 in)

max wheel peripheral speed

80 m/s (15,750 sfpm)

wheelhead power

up to 25 kW (33.5 hp)

How much does the Danobat CG-1000 cost?

Price estimate

Uncertain

We do not have a price for the Danobat CG-1000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

One metre between centers puts the Danobat CG-1000 in the size most transmission and motor shafts need. It is the middle model of the CG production grinders: 1,000 mm (39.37 in) between centers, 440 mm (17 in) maximum ground diameter and 500 kg (1,100 lb) between centers.

The working parts are common to the family. The wheel can be as large as Ø610 x 160 mm (Ø24 x 6.29 in) and runs at up to 80 m/s (15,750 sfpm); Danobat's own summary of the CG wheel adds up to 25 kW (33.5 hp). So the choice between this machine and the CG-600 is purely one of length, and the choice between it and the CG-1800 is length plus diameter, since the longest model also grinds up to 540 mm (21 in).

What does the extra bed buy besides longer shafts? Room for workholding and gauging. Danobat mounts a measuring head on the W axis for automatic axial positioning, and offers dressers at the workhead, synchronous tailstocks and taper adjustment. On a 600 mm machine those compete with the part for space. Here a gearbox shaft or EV motor shaft, both on Danobat's list of CG workpieces, can sit between a driven workhead and a tailstock with the gauge and dresser still in reach.

Changeover is where the maker concentrates its claims: an automatic set-up cycle for dressing a new straight wheel, an automatic wheel changing cycle, and a Z axis reference block for wheel touch offset that avoids manual setting. Tailstock axes with strokes of up to 600 mm (23.6 in) are available. The structure is a natural granite bed carrying linear motor axes.

Full Specifications

Parameter	Value
Distance Between Centers	1,000 mm (39.37 in)
Max Grinding Diameter	440 mm (17 in)
Max Weight Between Centers	500 kg (1,100 lb)
Wheel Size	Ø610 x 160 mm (Ø24 x 6.29 in)
Max Wheel Peripheral Speed	80 m/s (15,750 sfpm)
Wheelhead Power	up to 25 kW (33.5 hp)
Tailstock Quill Range	80 to 170 mm (3.1 to 6.7 in)
Tailstock Axis Stroke	up to 600 mm (23.6 in), available
Mdm Gauge Accuracy	±1.5 μm accuracy and 1 μm repeatability (MDM in- and post-process gauge)

Specifications sourced from danobat.com — verified 2026-10-05

Strengths & Limitations

Strengths

1,000 mm (39.37 in) between centers with a 500 kg (1,100 lb) weight capacity
Takes the full Ø610 x 160 mm (Ø24 x 6.29 in) wheel at up to 80 m/s (15,750 sfpm)
Z axis reference block for wheel touch offset removes manual setting after a wheel change
Measuring head on the W axis positions itself axially along the shaft
Tailstock axes with strokes of up to 600 mm (23.6 in) are available for mixed part lengths

Limitations

Ground diameter is limited to 440 mm (17 in); only the CG-1800 reaches 540 mm (21 in)
Weight between centers does not rise with length: 500 kg (1,100 lb) on every CG model
Wheel power is quoted only as up to 25 kW (33.5 hp), without a figure per wheelhead configuration
Danobat's table for the CG lists five rows; travels, feed rates and machine weight are not published

Best For

Gearbox shafts, driveshafts and axle shafts up to 1,000 mm (39.37 in) EV motor and reducer shafts in volume production Ball screws and machine tool spindle shafts within a 440 mm (17 in) diameter Lines that change part reference often and need automatic wheel set-up

Frequently Asked Questions

01 How does the CG-1000 differ from the CG-600 and CG-1800?

By length, and at the top end by diameter. The CG-600 has 600 mm (23.62 in) between centers and the CG-1800 has 1,800 mm (70.9 in). All three carry 500 kg (1,100 lb) and the same Ø610 x 160 mm (Ø24 x 6.29 in) wheel. The CG-1800 alone grinds up to 540 mm (21 in) in diameter.

02 What is the maximum wheel speed of the CG-1000?

80 m/s (15,750 sfpm) is the maximum wheel peripheral speed in Danobat's table. The maker also lists constant peripheral wheel speed, so the spindle speeds up as the wheel wears to hold the cutting speed. Fully automatic wheel balancing is listed with it.

03 What does the CG-1000 offer to shorten changeovers?

Danobat lists an automatic set-up cycle for dressing a new straight grinding wheel, an automatic wheel changing cycle and a Z axis reference block for wheel touch offset. The tailstock quill ranges from 80 to 170 mm (3.1 to 6.7 in), and tailstock axes with strokes of up to 600 mm (23.6 in) are available.

04 What is the CG-1000 built on?

A natural granite bed, with coolant through the bed and grinding area. The axes use linear motors, which Danobat notes have no ball screws or belts to wear, and the workhead is direct driven. Clamping choices include three jaw, customised and hydraulic chucks.
