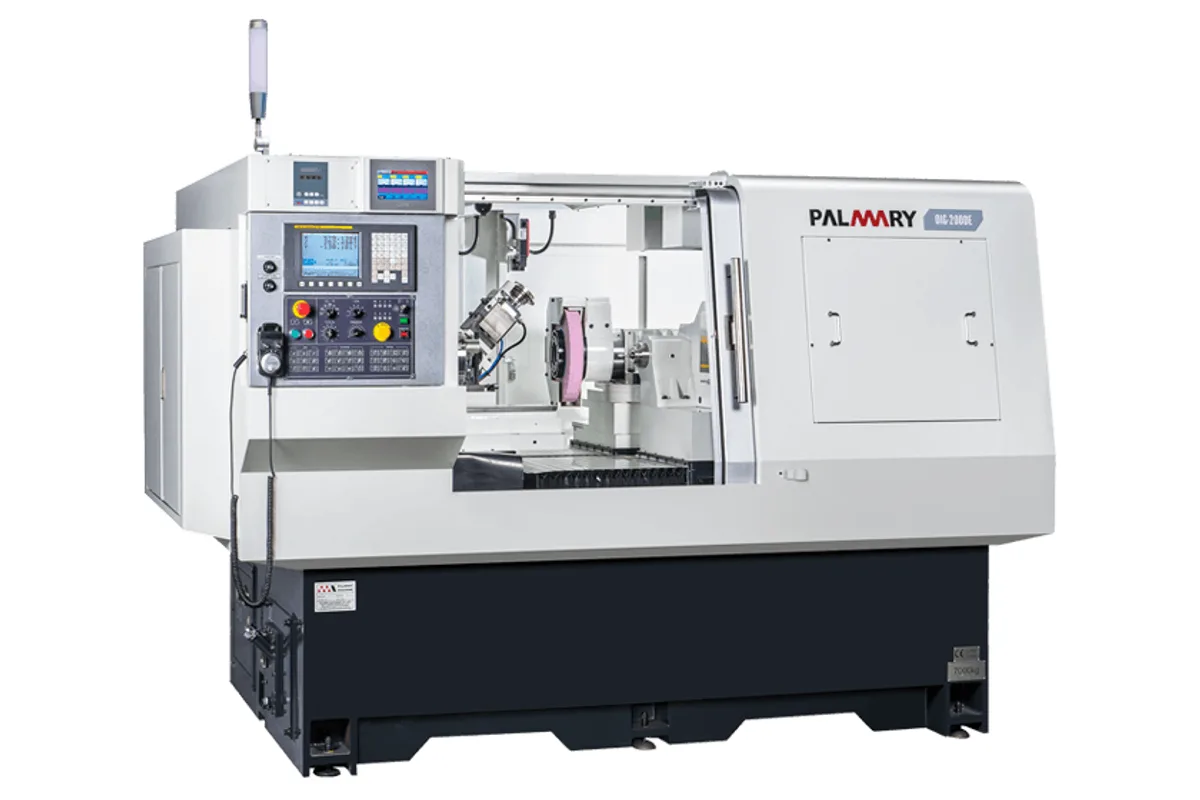

Palmary OIG-200DE
Image: palmary.com, Palmary
Key Specifications
Max Spindle
max chuck diameter
max internal grinding diameter
max workpiece length
wheel spindle diameter
y axis wheel peripheral speed
How much does the Palmary OIG-200DE cost?
Price estimate
We do not have a price for the Palmary OIG-200DE that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Palmary OIG-200DE is a CNC internal grinder that also carries an external grinding wheel. Palmary describes it as one internal wheel spindle plus one external wheel spindle, for grinding a bore, an end face and an outer diameter in one setting. Bore capacity is Ø150 mm (5.9 in) and workpiece length 200 mm (7.9 in).
The two spindles are very different machines. The internal one, on the Z axis, is a Ø90 mm (3.5 in) high-frequency type at 10,000 to 50,000 rpm with a 1.5 kW (2.0 hp) motor. The second, on the Y axis, turns at 1,880 or 2,090 rpm for a wheel speed of 30 m/s (5,906 ft/min) and has a 4 kW (5.4 hp) motor: a conventional external wheelhead in miniature. An external grinding wheel with flange is in the standard accessories.
For a part whose bore and outside diameter must run true to each other, such as a bearing sleeve, a gear with a ground journal or a collet body, grinding both in one chucking removes the error of a second setup. That is the reason to choose the DE over the two-internal-spindle OIG-200D.
Axis travels are 480 mm (18.9 in) on X, 450 mm (17.7 in) on Z and 310 mm (12.2 in) on Y, all at 10 m/min (394 ipm). The workhead swivels +7° to -8° and carries 35 kg (77 lb). FANUC control and enclosure are standard. Weight is 6,000 kg (13,228 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Max Chuck Diameter | Ø200 mm (7.9 in) |
| Max Internal Grinding Diameter | Ø150 mm (5.9 in) |
| Max Workpiece Length | 200 mm (7.9 in) |
| Wheel Spindle Diameter | Ø90 mm (3.5 in) |
| Max Spindle Speed | 10,000-50,000 rpm |
| Y Axis Wheel Peripheral Speed | 30 m/s (5,906 ft/min) |
| Y Axis Wheel Spindle Speed | 1,880 / 2,090 rpm |
| X Axis Rapid Traverse | 10 m/min (394 ipm) |
| X Axis Travel | 480 mm (18.9 in) |
| X Axis Min Setting Unit | 0.001 mm |
| Z Axis Rapid Traverse | 10 m/min (394 ipm) |
| Z Axis Travel | 450 mm (17.7 in) |
| Z Axis Min Setting Unit | 0.001 mm |
| Y Axis Rapid Traverse | 10 m/min (394 ipm) |
| Y Axis Travel | 310 mm (12.2 in) |
| Y Axis Min Setting Unit | 0.001 mm |
| Workhead Swivel Angle | +7°~-8° |
| Work Spindle Center Taper | MT 6 |
| Work Spindle Speed | 0-500 / 0-800 rpm |
| Max Load of Work Spindle | 35 kg (77 lb) |
| Wheel Spindle Motor | 1.5 kW (2.0 hp) |
| Y Axis Wheel Spindle Motor | 4 kW (5.4 hp) |
| Workhead Motor | 0.75 kW (1.0 hp) |
| X Axis Motor | 1.8 kW (2.4 hp) |
| Z Axis Motor | 1.8 kW (2.4 hp) |
| Y Axis Motor | 1.8 kW (2.4 hp) |
| Hydraulic Pump Motor | 0.75 kW (1.0 hp) |
| Coolant Pump Motor | 0.09 kW |
| Coolant Tank | 70 L (18.5 gal) |
| Machine Weight | 6,000 kg (13,228 lb) |
| CNC Control | FANUC CNC controller |
Specifications sourced from palmary.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Internal and external grinding spindles on one machine
- 4 kW (5.4 hp) external wheel spindle at 30 m/s (5,906 ft/min)
- Bore and outer diameter ground in one chucking for concentricity
- Workhead swivel of +7° to -8°
Limitations
- Y axis travel of 310 mm (12.2 in), shorter than on the OIG-200D
- Work spindle load of 35 kg (77 lb)
- No tailstock is listed, so external grinding is on chucked parts only
- Workpiece length limited to 200 mm (7.9 in)
Best For
Frequently Asked Questions
01
Yes. Palmary describes it as a model with one internal wheel spindle plus one external wheel spindle, capable of grinding internal hole, end face and outer diameter at one time setting. An external grinding wheel with flange is a standard accessory.
02
The Z axis spindle is a Ø90 mm (3.5 in) internal spindle at 10,000 to 50,000 rpm with a 1.5 kW (2.0 hp) motor. The Y axis spindle runs at 1,880 or 2,090 rpm with a 30 m/s (5,906 ft/min) wheel speed and a 4 kW (5.4 hp) motor.
03
The OIG-200D has two internal wheel spindles and 480 mm (18.9 in) of Y travel, at 5,700 kg (12,566 lb). The OIG-200DE replaces one of them with an external wheel spindle of 4 kW (5.4 hp), has 310 mm (12.2 in) of Y travel and weighs 6,000 kg (13,228 lb).
04
X axis table 480 mm (18.9 in), Z axis table 450 mm (17.7 in) and Y axis table 310 mm (12.2 in). Each has a 10 m/min (394 ipm) rapid feedrate, a 0.001 mm minimum setting unit and a 1.8 kW (2.4 hp) motor.
