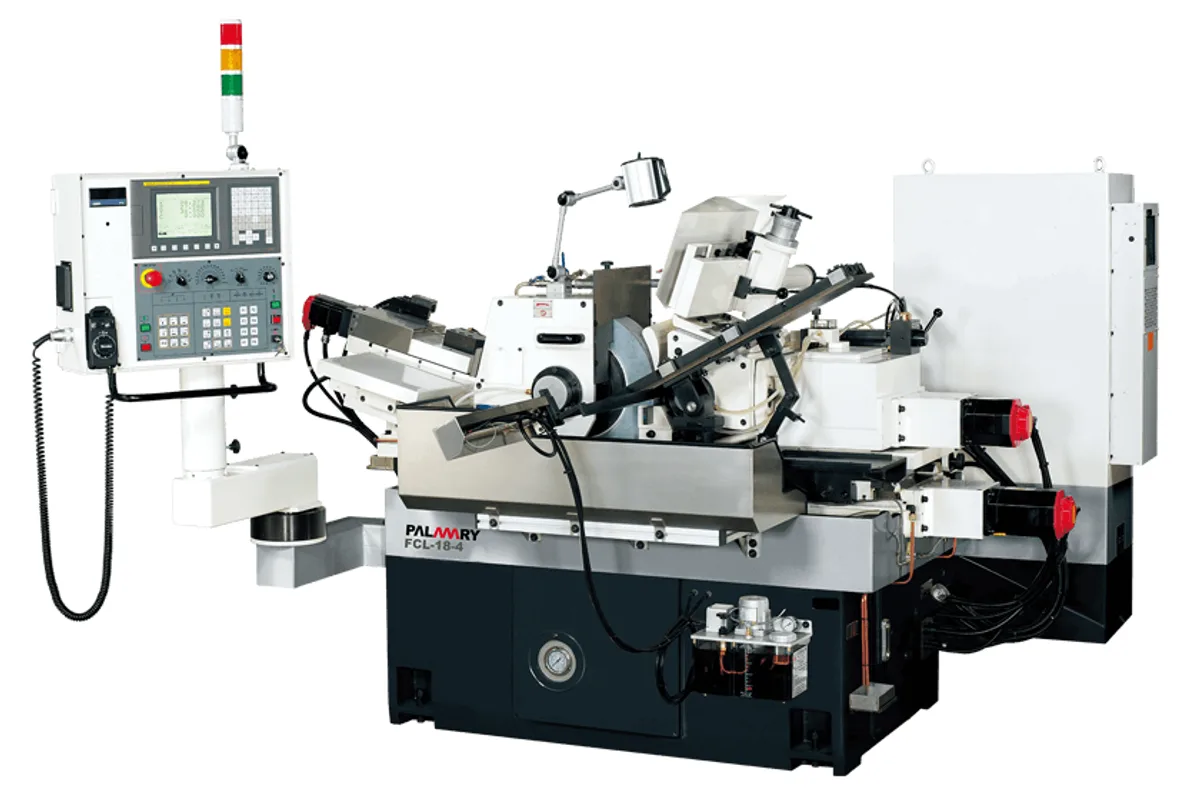

Palmary FCL-1810
Image: palmary.com, Palmary
Key Specifications
grinding diameter range
grinding diameter range special arrangement
wheel size
wheel peripheral speed
grinding wheel motor
regulating wheel size
How much does the Palmary FCL-1810 cost?
Price estimate
We do not have a price for the Palmary FCL-1810 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Palmary FCL-1810 is the wide-wheel version of the FCL-18 CNC centerless grinder. The grinding wheel is Ø455 mm by 255 mm and the regulating wheel Ø255 mm by 255 mm, where the FCL-18 has 205 mm wheels.
Width is the whole point, and it pays in two ways. In through-feed grinding a longer grinding zone lets the part travel faster for the same stock removal, or leaves more of the wheel for sparking out. In infeed grinding it sets the longest part that can be plunged in one hit. Buyers who grind bar or long pins all day are the ones who should pay for the extra width.
The drive is unchanged, which is worth knowing. The grinding wheel motor is still 15 HP (11 kW) and the regulating wheel servo 3 kW (4.0 hp), so a full-width infeed cut has less power per millimetre of wheel than on the narrower machine. Standard grinding range is Ø1 to Ø60 mm, or Ø40 to Ø150 mm with a special arrangement.
The regulating wheel runs from 10 to 300 rpm, tilts +5° to -3° and swivels ±5°. Lubrication is by an automatic electric lubricator. The tanks hold 170 L (44.9 gal) of coolant and 88 L (23.2 gal) of hydraulic oil. A FANUC CNC controller is standard and the machine weighs 3,000 kg (6,614 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Grinding Diameter Range | Ø1~Ø60 mm |
| Grinding Diameter Range Special Arrangement | Ø40~Ø150 mm |
| Wheel Size | Ø455 x 255 x Ø228.6 mm (17.9 x 10.0 x 9.0 in) |
| Wheel Peripheral Speed | 33 m/s (6,496 ft/min) |
| Grinding Wheel Motor | 15 HP x 4P (11 kW) |
| Regulating Wheel Size | Ø255 x 255 x Ø111.2 mm (10.0 x 10.0 x 4.4 in) |
| Regulating Wheel Speed | 10-300 rpm (variable speed) |
| Regulating Wheel Motor | 3 kW (4.0 hp) servo motor |
| Regulating Wheel Tilt Angle | +5°~-3° |
| Regulating Wheel Swivel Angle | ±5° |
| Hydraulic Pump Motor | 1 HP x 4P |
| Coolant Pump Motor | 1/4 HP x 2P |
| Lubrication | Auto. electric lubricator |
| CNC Control | FANUC |
| Coolant Tank | 170 L (44.9 gal) |
| Hydraulic Tank | 88 L (23.2 gal) |
| Lubrication Tank | 4 L (1.1 gal) |
| Machine Weight | 3,000 kg (6,614 lb) |
Specifications sourced from palmary.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 255 mm wide grinding and regulating wheels for a longer grinding zone
- Same 15 HP (11 kW) and 3 kW (4.0 hp) drives as the FCL-18 in a machine of 3,000 kg (6,614 lb)
- Servo regulating wheel with 10 to 300 rpm variable speed
- Large work rest for thrufeed grinding, 250 to 500 mm long, available as an option
Limitations
- Grinding wheel motor is not increased for the wider wheel
- Standard diameter range limited to Ø60 mm
- 33 m/s (6,496 ft/min) wheel speed
- Wheel dressing across 255 mm takes longer than on the narrow model
Best For
Frequently Asked Questions
01
Both wheels are 255 mm wide. The grinding wheel is Ø455 x 255 mm on a 228.6 mm bore and the regulating wheel Ø255 x 255 mm on a 111.2 mm bore. The grinding wheel runs at 33 m/s (6,496 ft/min).
02
No. Palmary's table gives the FCL-18 and the FCL-1810 the same 15 HP (11 kW) grinding wheel motor and 3 kW (4.0 hp) regulating wheel servo. The FCL-1810 differs in wheel width and in weight, 3,000 kg (6,614 lb).
03
Options include a large work rest for thrufeed grinding in lengths of 250 to 500 mm, a V type supporter for long bars of Ø2 to 14 mm, and an automatic loading attachment for thrufeed parts of Ø5 to 20 mm and up to 600 mm in length.
04
The FCL-20, with a Ø510 x 205 mm grinding wheel on a 20 HP (15 kW) motor and a 5 kW (6.7 hp) regulating wheel servo, at 3,700 kg (8,157 lb). Its standard range is the same Ø1 to Ø60 mm.
