Palmary OCD-3280P

Q: How much does the Palmary OCD-3280P cost?

The price estimate for the Palmary OCD-3280P is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/palmary-ocd-3280p#price; the request is passed to Palmary or an authorised dealer.

Specs verified 2026-10-05 · palmary.com Updated 2026-10-05

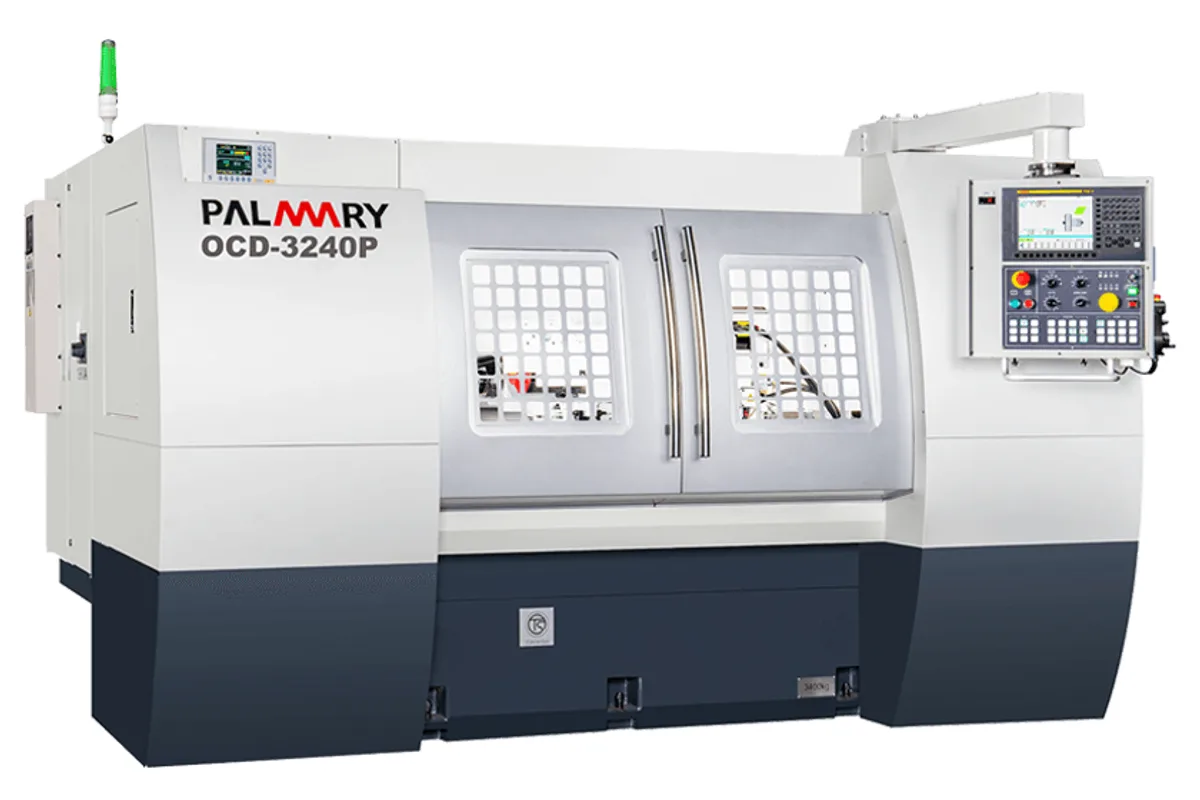

Palmary OCD-3220P / 3240P / 3280P series CNC plunge cylindrical grinder

Image: palmary.com, Palmary

Key Specifications

swing over table

Ø320 mm (12.6 in)

distance between centers

800 mm (31.5 in)

max grinding diameter

Ø300 mm (11.8 in)

max load between centers

150 kg (331 lb)

wheel size

Ø455~510 x 50~80 x Ø127 mm

wheel peripheral speed

33 m/s (6,496 ft/min)

How much does the Palmary OCD-3280P cost?

Price estimate

Uncertain

We do not have a price for the Palmary OCD-3280P that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

With 800 mm (31.5 in) between centers the Palmary OCD-3280P is the long model of the Ø320 mm (12.6 in) swing plunge grinders with angular wheelhead. It is a CNC machine for stepped shafts with several ground diameters and shoulders along their length.

Multi-diameter shafts are where plunge grinding and a long Z axis work together. The table strokes 1,308 mm (51.5 in), so the wheel can be indexed from seat to seat along an 800 mm part and still reach the tailstock-mounted diamond holder to dress. Rapid traverse is 10 m/min (394 ipm).

Two details change from the shorter P models. The workhead motor is 1.5 kW (2.0 hp), up from 1.0 kW on the OCD-3240P, and the table swivel becomes two-sided, -3° to +8°, which is useful for trimming out taper on a longer part. The wheel is unchanged: Ø455 to 510 mm, 50 to 80 mm wide, 5.5 kW (7.4 hp), in hybrid hydro-static bearings.

Maximum grinding diameter is Ø300 mm (11.8 in) and the centers carry 150 kg (331 lb). At 4,300 kg (9,480 lb) the machine weighs only slightly more than the OCD-3240P. A FANUC CNC controller, micro adjustment tailstock, linear scale for X and a fully enclosed splash guard are standard; steady rests, a hydraulic tailstock and in-process gauging are options.

Full Specifications

Parameter	Value
Swing Over Table	Ø320 mm (12.6 in)
Distance Between Centers	800 mm (31.5 in)
Max Grinding Diameter	Ø300 mm (11.8 in)
Max Load Between Centers	150 kg (331 lb)
Wheel Size	Ø455~510 x 50~80 x Ø127 mm
Wheel Peripheral Speed	33 m/s (6,496 ft/min)
X Axis Rapid Traverse	10 m/min (394 ipm)
X Axis Travel	260 mm (10.2 in)
X Axis Min Setting Unit	0.001 (0.0001) mm
Z Axis Rapid Traverse	10 m/min (394 ipm)
Z Axis Travel	1,308 mm (51.5 in)
Z Axis Min Input Increment	0.001 (0.0001) mm
Table Swivel Angle	-3°, +8°
Workhead Swivel Angle	-30°~+90°
Workhead Center Taper	M.T. No. 4
Work Spindle Speed	10-300 rpm
Max Load of Work Spindle	35 kg (77 lb) (max. length: 150 mm)
Tailstock Center Taper	M.T. No. 4
Tailstock Stroke	25 mm (1.0 in)
Tailstock Fine Adjustment Range	±0.03 mm (±0.0012 in)
Wheel Spindle Motor	5.5 kW (7.4 hp) (6P)
Workhead Motor	1.5 kW (2.0 hp) (4P) Frequency
Wheelhead Feed Motor	1.2 kW (1.6 hp)
Table Feed Motor	1.8 kW (2.4 hp)
Hydrostatic Pump Motor	0.37 kW (0.5 hp) (4P)
Wheel Spindle Lubrication Pump Motor	0.37 kW (0.5 hp) (4P)
Coolant Pump Motor	0.18 kW (0.2 hp) (2P)
Ballscrew Lubrication	Auto lubricator (LUBE)
Power Requirement	18 kVA
Wheel Spindle Lubrication Tank	31 L (8.2 gal)
Lubrication Tank	31 L (8.2 gal)
Hydraulic Tank	31 L (8.2 gal)
Ballscrew Lubrication Tank	0.7 L (0.2 gal)
Coolant Tank	120 L (31.7 gal)
Machine Weight	4,300 kg (9,480 lb)
CNC Control	FANUC CNC controller

Specifications sourced from palmary.com — verified 2026-10-05

Strengths & Limitations

Strengths

800 mm (31.5 in) between centers with 1,308 mm (51.5 in) of table stroke
Two-sided table swivel of -3° to +8°
1.5 kW (2.0 hp) workhead motor
Same large wheel as the short P models: Ø455 to 510 mm, up to 80 mm wide

Limitations

150 kg (331 lb) between centers over an 800 mm (31.5 in) length
Positive table swivel reduced to 8°
Steady rests and hydraulic tailstock are optional accessories
The OCD-32P group has no length between the OCD-3240P and this model

Best For

Multi-diameter shafts up to 800 mm (31.5 in) Gearbox and motor shafts with several bearing seats Plunge grinding at several stations along one part Stepped spindles up to Ø300 mm (11.8 in)

Frequently Asked Questions

01 How long a shaft fits the Palmary OCD-3280P?

800 mm (31.5 in) between centers, with a table stroke of 1,308 mm (51.5 in). The ground diameter can be up to Ø300 mm (11.8 in) and the part may weigh up to 150 kg (331 lb) between No. 4 Morse taper centers.

02 What changes between the OCD-3240P and the OCD-3280P?

The OCD-3240P has 400 mm (15.7 in) between centers, an 818 mm (32.2 in) table stroke and a 0° to 10° table swivel. The OCD-3280P has 800 mm (31.5 in) between centers, a 1,308 mm (51.5 in) stroke, a -3° to +8° swivel and a 1.5 kW (2.0 hp) workhead motor.

03 Does the OCD-3280P support in-process measuring?

As an option. Palmary's accessory list for this page includes an automatic in-process gauge and a touch probe gauge. The standard machine has a linear scale on the X axis and a 0.001 mm minimum setting unit.

04 How much does the OCD-3280P weigh?

4,300 kg (9,480 lb), against 4,250 kg (9,369 lb) for the OCD-3240P. Total power is 18 kVA, the coolant tank holds 120 L (31.7 gal), and the lubrication and hydraulic tanks hold 31 L (8.2 gal) each.
