Palmary OCD-32100E

Q: How much does the Palmary OCD-32100E cost?

The price estimate for the Palmary OCD-32100E is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/palmary-ocd-32100e#price; the request is passed to Palmary or an authorised dealer.

Specs verified 2026-10-05 · palmary.com Updated 2026-10-05

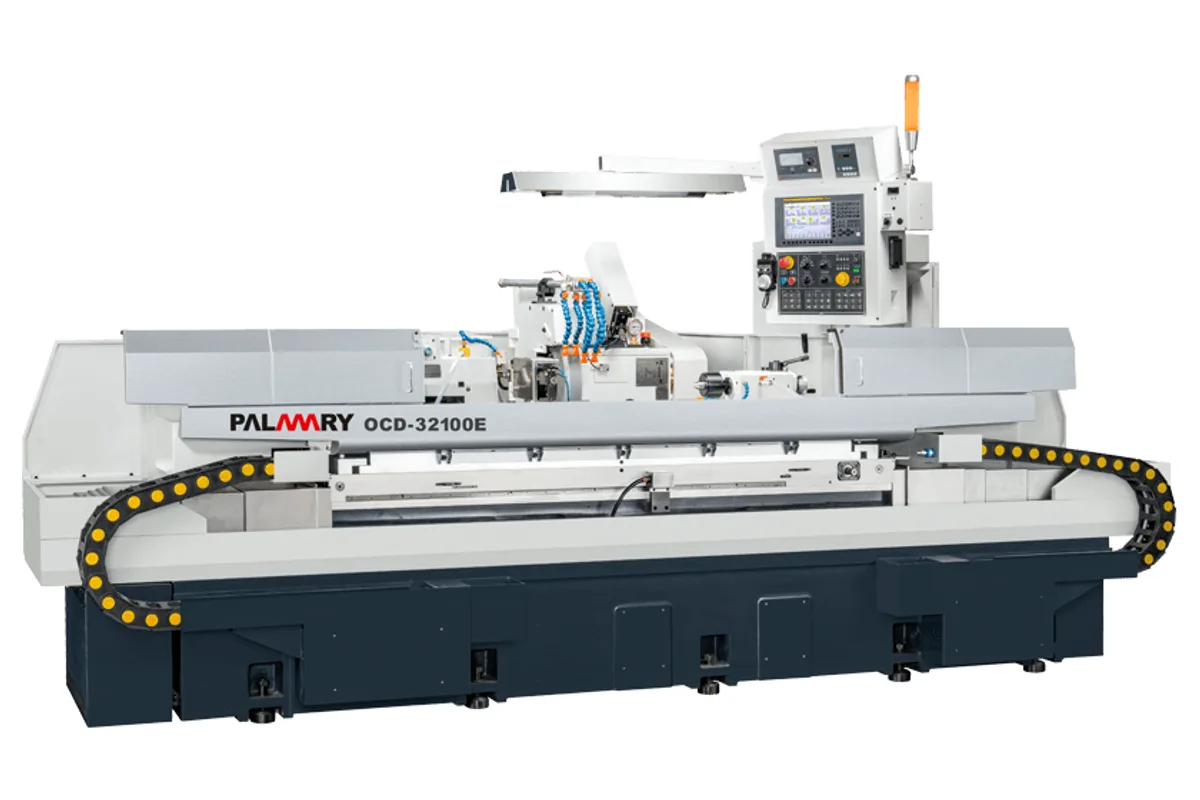

Palmary OCD-32100E CNC cylindrical grinder for spindles

Image: palmary.com, Palmary

Key Specifications

swing over table

Ø320 mm (12.6 in)

distance between centers

1,000 mm (39.4 in)

max grinding diameter

Ø300 mm (11.8 in)

max load between centers

500 kg (1,102 lb)

wheel size

Ø510 x 50 x Ø203.2 mm (20.1 x 2.0 x 8.0 in)

wheel peripheral speed

33 m/s (6,496 ft/min)

How much does the Palmary OCD-32100E cost?

Price estimate

Uncertain

We do not have a price for the Palmary OCD-32100E that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Palmary OCD-32100E is a special-purpose CNC cylindrical grinder for machine tool spindles. It has the Ø320 mm (12.6 in) swing and 1,000 mm (39.4 in) center distance of the standard OCD-32100, and almost nothing else in common with it.

Start with load. The OCD-32100 carries 150 kg (331 lb); the E version is rated for 500 kg (1,102 lb) between centers, and the table gives the same 500 kg for the work spindle. Palmary attributes this to slides that are widened, thickened and fully closed hydrostatic, on a bed with a lowered center of gravity.

Next, resolution and travel. Both axes have a 0.0001 mm minimum increment. The wheelhead strokes 400 mm (15.7 in) and the table 1,400 mm (55.1 in); Palmary says the strokes were increased to suit large-angle grinding, which is what a spindle taper needs. Rapid traverse is deliberately modest at 6 m/min (236 ipm). The table swivels from -2° to 9°, and the work spindle head is fixed.

The wheel is Ø510 mm in diameter and 50 mm wide on a 203.2 mm bore, driven by 7.5 kW and running in a hydro-static bearing. The tailstock stroke is 60 mm (2.4 in). Coolant capacity is only 60 L (15.9 gal), small for a machine of 4,500 kg (9,921 lb), so an external filtration unit from the option list is likely. Control is FANUC.

Full Specifications

Parameter	Value
Swing Over Table	Ø320 mm (12.6 in)
Distance Between Centers	1,000 mm (39.4 in)
Max Grinding Diameter	Ø300 mm (11.8 in)
Max Load Between Centers	500 kg (1,102 lb)
Wheel Size	Ø510 x 50 x Ø203.2 mm (20.1 x 2.0 x 8.0 in)
Wheel Peripheral Speed	33 m/s (6,496 ft/min)
X Axis Rapid Traverse	6 m/min (236 ipm)
X Axis Travel	400 mm (15.7 in)
X Axis Min Setting Unit	0.0001 mm
Z Axis Rapid Traverse	6 m/min (236 ipm)
Z Axis Travel	1,400 mm (55.1 in)
Z Axis Min Input Increment	0.0001 mm
Table Swivel Angle	-2°~9°
Workhead Swivel Angle	0° (Fixed Type)
Workhead Center Taper	M.T. No. 4
Work Spindle Speed	0-300 rpm
Max Load of Work Spindle	500 kg (1,102 lb)
Tailstock Center Taper	M.T. No. 4
Tailstock Stroke	60 mm (2.4 in)
Wheel Spindle Motor	7.5 kW (10 HP x 4P)
Workhead Motor	1.5 kW (2 HP x 4P)
Wheelhead Feed Motor	1.8 kW (2.4 hp) (β12-3000is)
Table Feed Motor	1.8 kW (2.4 hp) (β12-3000is)
Hydrostatic Pump Motor	0.37 kW (1/2 HP x 2P)
Ballscrew Lubrication	Auto lubricator (LUBE)
Wheel Spindle Lubrication Tank	31 L (8.2 gal)
Lubrication Tank	31 L (8.2 gal)
Hydraulic Tank for Optional Accessory	31 L (8.2 gal)
Coolant Tank	60 L (15.9 gal)
Machine Weight	4,500 kg (9,921 lb)
CNC Control	FANUC CNC controller

Specifications sourced from palmary.com — verified 2026-10-05

Strengths & Limitations

Strengths

500 kg (1,102 lb) between centers on a Ø320 mm (12.6 in) swing machine
0.0001 mm minimum increment on both the X and Z axes
400 mm (15.7 in) of wheelhead stroke, increased for large-angle grinding according to Palmary
Fully closed hydrostatic slides and a hydro-static wheel spindle bearing
Table swivel from -2° to 9°

Limitations

Rapid traverse is 6 m/min (236 ipm), slower than the standard OCD models
Work spindle head is fixed at 0°
Coolant tank of only 60 L (15.9 gal)
The page gives no total power figure for this model

Best For

Machine tool spindles and their tapers Heavy precision shafts up to 500 kg (1,102 lb) Work that needs 0.0001 mm increments on both axes Steep-angle grinding with a long wheelhead stroke

Frequently Asked Questions

01 What is the Palmary OCD-32100E built for?

Spindle grinding. Palmary lists it as a special purpose cylindrical grinder for spindles, with a reinforced bed, fully closed hydrostatic slides and longer X and Z strokes for large-angle grinding. Capacity is Ø300 mm (11.8 in) by 1,000 mm (39.4 in) between centers.

02 How does the OCD-32100E differ from the OCD-32100?

The OCD-32100 carries 150 kg (331 lb), has a 260 mm (10.2 in) wheelhead stroke and weighs 4,300 kg (9,480 lb). The OCD-32100E carries 500 kg (1,102 lb), has a 400 mm (15.7 in) wheelhead stroke, a fixed workhead and 0.0001 mm increments, and weighs 4,500 kg (9,921 lb).

03 What wheel and motor does the OCD-32100E have?

A Ø510 mm wheel, 50 mm wide, with a 203.2 mm bore, at 33 m/s (6,496 ft/min). The wheel spindle motor is 7.5 kW. Palmary's introduction also says the enlarged hydrostatic wheel spindle can carry a wheel up to 125 mm wide for plunge grinding.

04 What are the axis travels of the OCD-32100E?

X axis (wheelhead) 400 mm (15.7 in) and Z axis (table) 1,400 mm (55.1 in), each with a rapid advance of 6 m/min (236 ipm) and a minimum increment of 0.0001 mm. Both feed axes use 1.8 kW AC servo motors, and a linear scale for X is standard.
