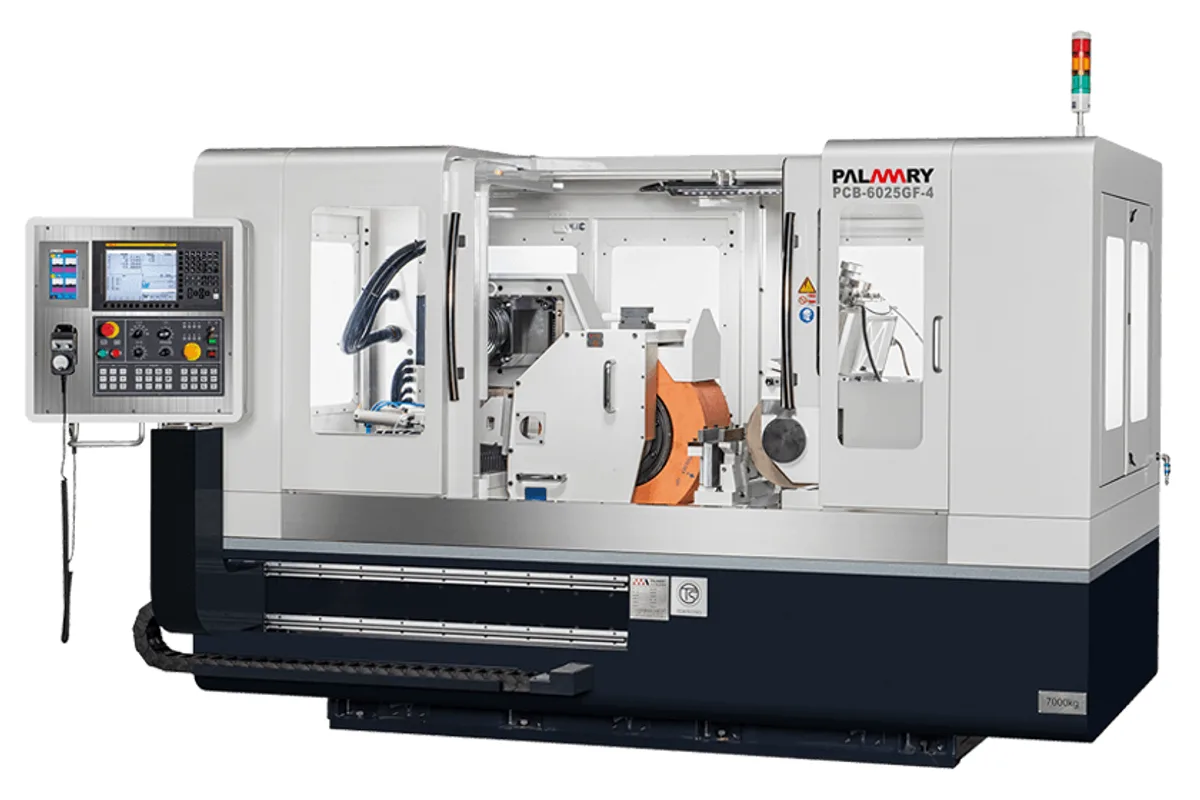

Palmary PCB-6025GF-4
Image: palmary.com, Palmary
Key Specifications
grinding diameter range
wheel size
wheel peripheral speed
grinding wheel dressing device
regulating wheel size
regulating wheel speed
How much does the Palmary PCB-6025GF-4 cost?
Price estimate
We do not have a price for the Palmary PCB-6025GF-4 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Palmary PCB-6025GF-4 is the 255 mm wheel version of Palmary's two-slide CNC centerless grinder for long bar. It grinds Ø2 to Ø100 mm as standard with a Ø610 mm wheel and a 40 HP (29.8 kW) motor.
Bar grinding is a through-feed business, and through-feed rate follows wheel width. With 255 mm of grinding zone instead of the 205 mm of the PCB-6020GF-4, the same stock comes off at a higher bar speed, or more stock at the same speed. Here the motor is big enough for the wider wheel to be used fully, which is not true of every wide-wheel variant in Palmary's range.
The machine has four CNC axes and feeds from both sides. The grinding wheel unit sits on a square slide and the regulating wheel unit on a dovetail slide, both with ball screw and reducer, and the work rest between them is fixed. Palmary's reasoning is stability: a rest that never moves keeps its accuracy.
The regulating wheel is Ø330 mm by 255 mm, driven by a 3 kW (4.0 hp) servo at 10 to 200 rpm, with ±5° of tilt for through-feed. Coolant capacity is 140 L (37.0 gal), a small sump for a 40 HP grinder, so plan on external filtration from the option list. The standard accessories include a FANUC CNC controller and a fully enclosed splash guard. Weight is listed as 6,500 kg (14,330 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Grinding Diameter Range | Ø2~Ø100 mm (OPT. Ø70~Ø150 mm) |
| Wheel Size | Ø610 x 255 x Ø304.8 mm (24.0 x 10.0 x 12.0 in) |
| Wheel Peripheral Speed | 45 m/s (8,858 ft/min) |
| Grinding Wheel Dressing Device | Single-point dressing device / (opt.) Diamond roller dressing device |
| Regulating Wheel Size | Ø330 x 255 x Ø152.4 mm (13.0 x 10.0 x 6.0 in) |
| Regulating Wheel Speed | 10-200 rpm (variable speed) |
| Regulating Wheel Tilt Angle | ±5° |
| Regulating Wheel Swivel Angle | ±0.5° |
| Regulating Wheel Dresser Swivel Angle | ±5° |
| Regulating Wheel Dresser Offset | 0~15 mm |
| Grinding Wheel Slide | Square slide, Ball screw + reducer + linear scale (opt.) |
| Regulating Wheel Slide | Dovetail slide, Ball screw + reducer |
| Grinding Wheel Motor | 40 HP / 2,000 rpm (29.8 kW) IE4 |
| Regulating Wheel Motor | 3 kW (4.0 hp) servo motor |
| Grinding Wheel Spindle Lubrication | Oil mist type |
| Regulating Wheel Spindle Lubrication | Oil grease type |
| Slide Lubrication | Auto lubricator (LUBE) |
| CNC Control | FANUC |
| Coolant Tank | 140 L (37.0 gal) |
| Wheel Spindle Lubrication Tank | 1.0 L (0.3 gal) |
| Slide Lubrication Tank | 4 L (1.1 gal) |
| Machine Weight | 6,500 kg (14,330 lb) |
Specifications sourced from palmary.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 255 mm wide Ø610 mm wheel driven by 40 HP (29.8 kW)
- Fixed work rest between two feeding slides
- Four CNC axes with a FANUC controller
- Fully enclosed splash guard included as standard
Limitations
- 140 L (37.0 gal) coolant tank is small for the motor power
- Regulating wheel swivel only ±0.5°
- Bar loading and unloading equipment is optional and custom
- Listed weight is the same as for the narrower PCB-6020GF-4
Best For
Frequently Asked Questions
01
Outer diameter grinding of long bar. Palmary says the two-slide design is suitable for that application and that the work rest fixed in the machine gives better grinding accuracy. The standard range is Ø2 to Ø100 mm.
02
The PCB-6020GF-4 has 205 mm wide wheels and a 125 L (33.0 gal) coolant tank. The PCB-6025GF-4 has 255 mm wide wheels and a 140 L (37.0 gal) coolant tank. Motors and listed weight are the same.
03
The grinding wheel device slide is a square slide with ball screw and reducer, and a linear scale can be added as an option. The regulating wheel device slide is a dovetail slide with ball screw and reducer. Slides are lubricated automatically.
04
A magnetic coolant separator, a paper filter, a hydrocyclone coolant separator, an oil mist collector and a water cooler are listed as optional accessories. The standard coolant tank holds 140 L (37.0 gal).
More from Palmary
Other CNC Grinding Machines
Amada MEISTER 52UP
Danobat CG-1800

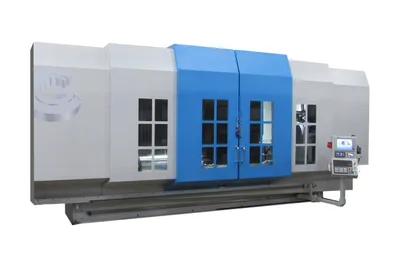

Campbell Grinder CRG4000
