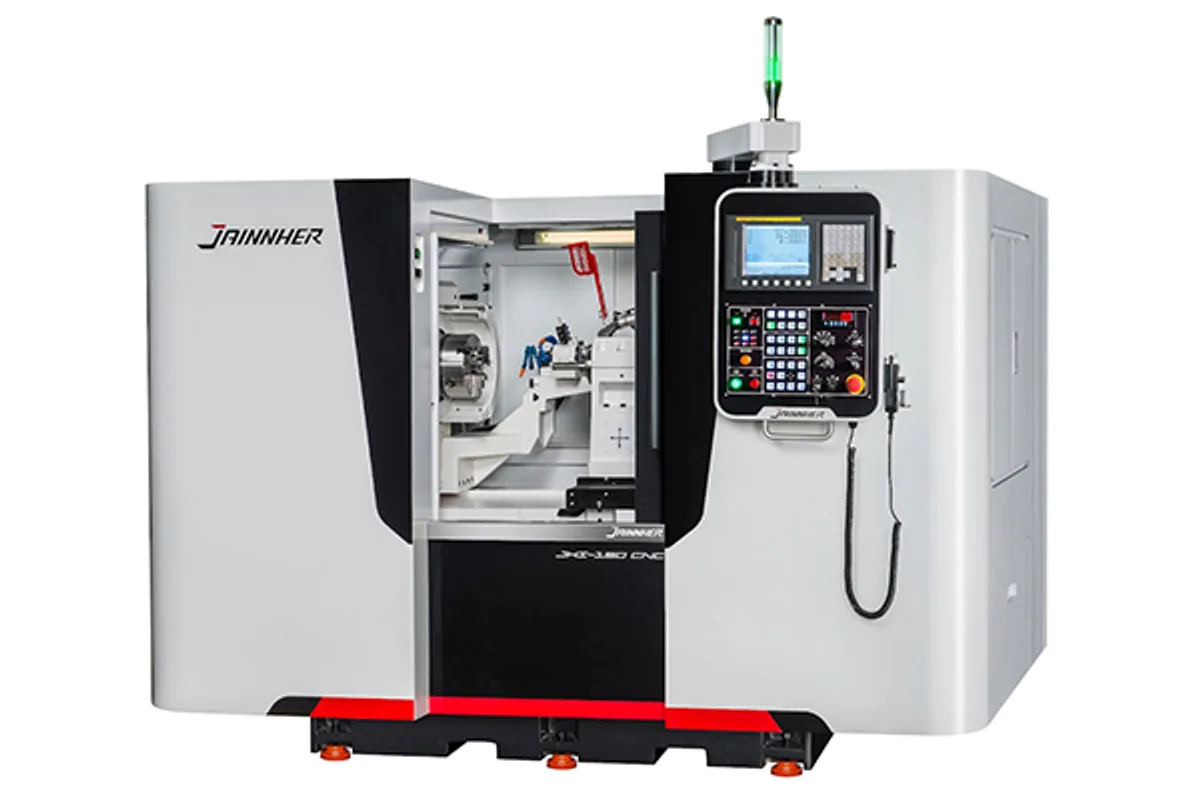

Jainnher JHI-150BCNC
Image: jainnher.com, Jainnher
Key Specifications
Spindle Power
id grinding range
max grinding depth
max holding length
swing over bed
swing in chuck guard
How much does the Jainnher JHI-150BCNC cost?
Price estimate
We do not have a price for the Jainnher JHI-150BCNC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Jainnher JHI-150BCNC is the B-axis version of Jainnher's small CNC internal grinder. It keeps the 6 to 150 mm (0.2 to 5.9 in) bore range and 150 mm (5.9 in) grinding depth of the JHI-150CNC and adds a rotary table that swivels ±15° under program control, in steps of 0.001°.
That changes how tapers are made. On the plain machine the work head is swivelled and clamped by hand. Here the angle is an axis, so a part with a straight bore and a tapered seat can be finished in one chucking, and the angle can be corrected from the control after measuring. The table carries a 1.2 kW (1.6 hp) AC servo motor and turns at 0 to 20 rpm.
The second difference is the wheel spindle. Jainnher lists a build-in type spindle of 7.5 kW / 10 HP in place of a belt-driven motor. The X axis is slower than on the JHI-150CNC, with a rapid of 5 m/min (197 ipm), while Z keeps 8 m/min (315 ipm). Strokes are 100 mm (3.9 in) in X and 450 mm (17.7 in) in Z, and the work head runs from 10 to 1,000 rpm on an A2-5 nose or an optional cylindrical one.
Jainnher prints this model as a column beside the JHI-150CNC and gives it no feature text of its own, so the published detail is thinner. The table shows one size, 3,175 x 2,500 x 2,300 mm (125.0 x 98.4 x 90.6 in), and a gross weight of 2,850 kg (6,283 lb), with no net weight.
Full Specifications
| Parameter | Value |
|---|---|
| ID Grinding Range | 6 to 150 mm (0.2 to 5.9 in) |
| Max Grinding Depth | 150 mm (5.9 in) |
| Max Holding Length | 200 mm (7.9 in) |
| Swing Over Bed | 500 mm (19.7 in) |
| Swing in Chuck Guard | 280 mm (11.0 in) |
| X Axis Rapid Traverse | 5 m/min (197 ipm) |
| X Axis Travel | 100 mm (3.9 in) |
| X Axis Min Setting Unit | 0.001 mm |
| Z Axis Rapid Traverse | 8 m/min (315 ipm) |
| Z Axis Travel | 450 mm (17.7 in) |
| Z Axis Min Setting Unit | 0.001 mm |
| Work Spindle Speed | 10 to 1,000 rpm |
| Work Spindle Nose | Standard A2-5 / Optional cylindrical type |
| Work Head Swivel Angle | ±15° |
| B Axis Speed | 0 to 20 rpm |
| B Axis Min Setting Unit | 0.001° |
| B Axis Swivel Angle | ±15° |
| Spindle Motor Power | Build-in type, 7.5 kW / 10 HP |
| Work Head Motor | AC servo motor, 1.5 kW (2.0 hp) |
| X Axis Motor | AC servo motor, 0.75 kW (1.0 hp) |
| Z Axis Motor | AC servo motor, 1.2 kW (1.6 hp) |
| Hydraulic Motor | 1/4 HP (0.18 kW) |
| Hydraulic Chuck Motor | 1 HP (0.75 kW) |
| Coolant Motor | 1/4 HP (0.18 kW) |
| Rotary Table Motor | AC servo motor, 1.2 kW (1.6 hp) |
| Machine Dimensions | 3,175 x 2,500 x 2,300 mm (125.0 x 98.4 x 90.6 in) (L x W x H) |
| Gross Weight | 2,850 kg (6,283 lb) |
Specifications sourced from jainnher.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Rotary table B axis with ±15° of swivel and a 0.001° setting unit
- Build-in type wheel spindle rated 7.5 kW / 10 HP
- Same 6 to 150 mm (0.2 to 5.9 in) bore range as the JHI-150CNC, so tooling carries over
- AC servo motors on the work head, X, Z and the rotary table
Limitations
- X-axis rapid is 5 m/min (197 ipm), against 8 m/min (315 ipm) on the JHI-150CNC
- Jainnher states no net weight, only a gross weight of 2,850 kg (6,283 lb)
- Grinding depth remains 150 mm (5.9 in) and holding length 200 mm (7.9 in)
- The maker's page describes the B axis in the table only, with no explanation of its bearings or accuracy
Best For
Frequently Asked Questions
01
The model has a rotary table B axis, which the JHI-150CNC column of Jainnher's table marks as absent. The B axis swivels ±15°, has a minimum setting unit of 0.001° and turns at 0 to 20 rpm, driven by a 1.2 kW (1.6 hp) AC servo motor.
02
Jainnher's table lists a build-in type grinding wheel spindle of 7.5 kW / 10 HP. The table does not give its speed. On the same page, an oil mist lubricator for the grinding wheel is an optional accessory that the maker says applies at spindle speeds of 30,000 rpm or above.
03
Not in X. The JHI-150CNC has an 8 m/min (315 ipm) rapid on both axes. The JHI-150BCNC has 5 m/min (197 ipm) on the wheel head's X axis and 8 m/min (315 ipm) on the table's Z axis. Strokes and setting units are the same on both.
04
The machine measures 3,175 x 2,500 x 2,300 mm (125.0 x 98.4 x 90.6 in), length by width by height, and the gross weight is 2,850 kg (6,283 lb). Swing over the bed is 500 mm (19.7 in) and swing inside the chuck guard 280 mm (11.0 in).
