Palmary OCD-4220P
Image: palmary.com, Palmary
Key Specifications
swing over table
distance between centers
max grinding diameter
max load between centers
wheel size
wheel peripheral speed
How much does the Palmary OCD-4220P cost?
Price estimate
We do not have a price for the Palmary OCD-4220P that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

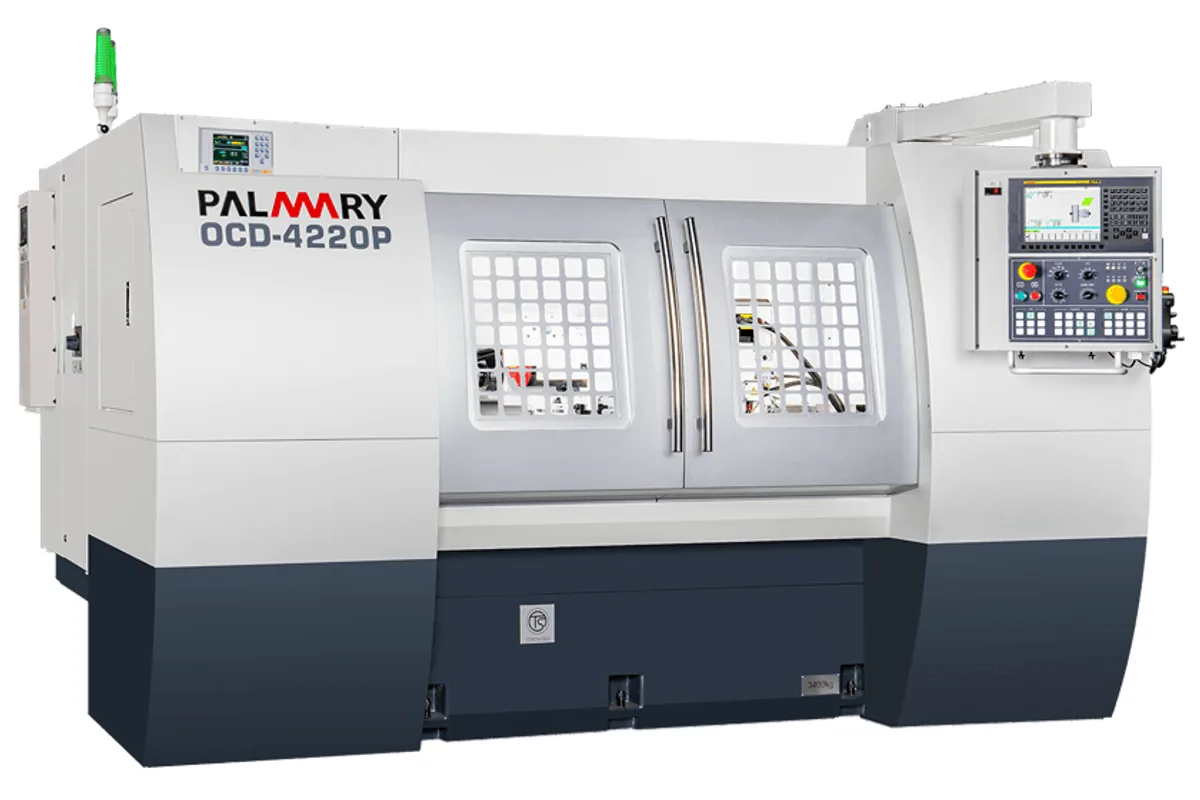

The Palmary OCD-4220P pairs the biggest swing of the P series, Ø420 mm (16.5 in), with the shortest center distance, 200 mm (7.9 in). It is a CNC plunge cylindrical grinder with angular wheelhead for large, short, shouldered parts up to Ø400 mm (15.7 in).
Think of flywheels, brake and clutch components, large gear blanks on arbors and bearing housings: wide faces next to a ground diameter. An angled wheel suits those because it can cut the diameter and the face in the same infeed. The page does not give the wheelhead angle, so ask for it against your shoulder heights.
The wheel may be Ø455 to 510 mm and 50 to 80 mm wide, driven by 5.5 kW (7.4 hp). X stroke is 260 mm (10.2 in). The Z axis has 818 mm (32.2 in) of stroke and, unlike the smaller-swing P models, a 2.5 kW (3.4 hp) table feed servo, a sign of the heavier table that the larger swing brings.
The workhead has a 1.0 kW (1.3 hp) motor, 10 to 300 rpm and a -30° to +90° swivel. Chucked parts are limited to 35 kg (77 lb); parts between centers to 150 kg (331 lb). Table swivel is 0° to 12°. With the standard FANUC controller, enclosure and X-axis scale the machine weighs 3,600 kg (7,937 lb) and requires 18 kVA.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Table | Ø420 mm (16.5 in) |
| Distance Between Centers | 200 mm (7.9 in) |
| Max Grinding Diameter | Ø400 mm (15.7 in) |
| Max Load Between Centers | 150 kg (331 lb) |
| Wheel Size | Ø455~510 x 50~80 x Ø127 mm |
| Wheel Peripheral Speed | 33 m/s (6,496 ft/min) |
| X Axis Rapid Traverse | 10 m/min (394 ipm) |
| X Axis Travel | 260 mm (10.2 in) |
| X Axis Min Setting Unit | 0.001 (0.0001) mm |
| Z Axis Rapid Traverse | 10 m/min (394 ipm) |
| Z Axis Travel | 818 mm (32.2 in) |
| Z Axis Min Input Increment | 0.001 (0.0001) mm |
| Table Swivel Angle | 0°~12° |
| Workhead Swivel Angle | -30°~+90° |
| Workhead Center Taper | M.T. No. 4 |
| Work Spindle Speed | 10-300 rpm |
| Max Load of Work Spindle | 35 kg (77 lb) (max. length: 150 mm) |
| Tailstock Center Taper | M.T. No. 4 |
| Tailstock Stroke | 25 mm (1.0 in) |
| Tailstock Fine Adjustment Range | ±0.03 mm (±0.0012 in) |
| Wheel Spindle Motor | 5.5 kW (7.4 hp) (6P) |
| Workhead Motor | 1.0 kW (1.3 hp) (4P) Frequency |
| Wheelhead Feed Motor | 1.2 kW (1.6 hp) |
| Table Feed Motor | 2.5 kW (3.4 hp) |
| Hydrostatic Pump Motor | 0.37 kW (0.5 hp) (4P) |
| Wheel Spindle Lubrication Pump Motor | 0.37 kW (0.5 hp) (4P) |
| Coolant Pump Motor | 0.18 kW (0.2 hp) (2P) |
| Ballscrew Lubrication | Auto lubricator (LUBE) |
| Power Requirement | 18 kVA |
| Wheel Spindle Lubrication Tank | 31 L (8.2 gal) |
| Lubrication Tank | 31 L (8.2 gal) |
| Hydraulic Tank | 31 L (8.2 gal) |
| Ballscrew Lubrication Tank | 0.7 L (0.2 gal) |
| Coolant Tank | 120 L (31.7 gal) |
| Machine Weight | 3,600 kg (7,937 lb) |
| CNC Control | FANUC CNC controller |
Specifications sourced from palmary.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Ø400 mm (15.7 in) grinding diameter in a 3,600 kg (7,937 lb) machine
- 2.5 kW (3.4 hp) table feed servo motor
- 0° to 12° table swivel and a -30° to +90° workhead swivel
- 818 mm (32.2 in) of Z stroke for dressing and loading clearance
Limitations
- 200 mm (7.9 in) between centers
- Workhead motor of 1.0 kW (1.3 hp) is the smallest of the OCD-42P models
- 35 kg (77 lb) limit on chucked work
- Wheelhead angle not published on the page
Best For
Frequently Asked Questions
01
Swing over table Ø420 mm (16.5 in), distance between centers 200 mm (7.9 in), maximum external grinding diameter Ø400 mm (15.7 in) and maximum load between centers 150 kg (331 lb). The centers are No. 4 Morse taper.
02
The OCD-3220P swings Ø320 mm (12.6 in), has a 1.8 kW (2.4 hp) table feed motor and weighs 3,400 kg (7,496 lb). The OCD-4220P swings Ø420 mm (16.5 in), has a 2.5 kW (3.4 hp) table feed motor and weighs 3,600 kg (7,937 lb). Strokes and wheel are the same.
03
The wheel runs at a linear velocity of 33 m/s (6,496 ft/min) on a 5.5 kW (7.4 hp) motor. Wheel size is Ø455 to 510 mm by 50 to 80 mm wide with a 127 mm bore. The spindle is supported in hybrid hydro-static bearings.
04
A 120 L (31.7 gal) coolant tank, and 31 L (8.2 gal) each for wheel spindle lubrication, slide lubrication and hydraulics. Ballscrew lubrication is automatic from a 0.7 L tank. Coolant separators and an oil mist collector are optional.
