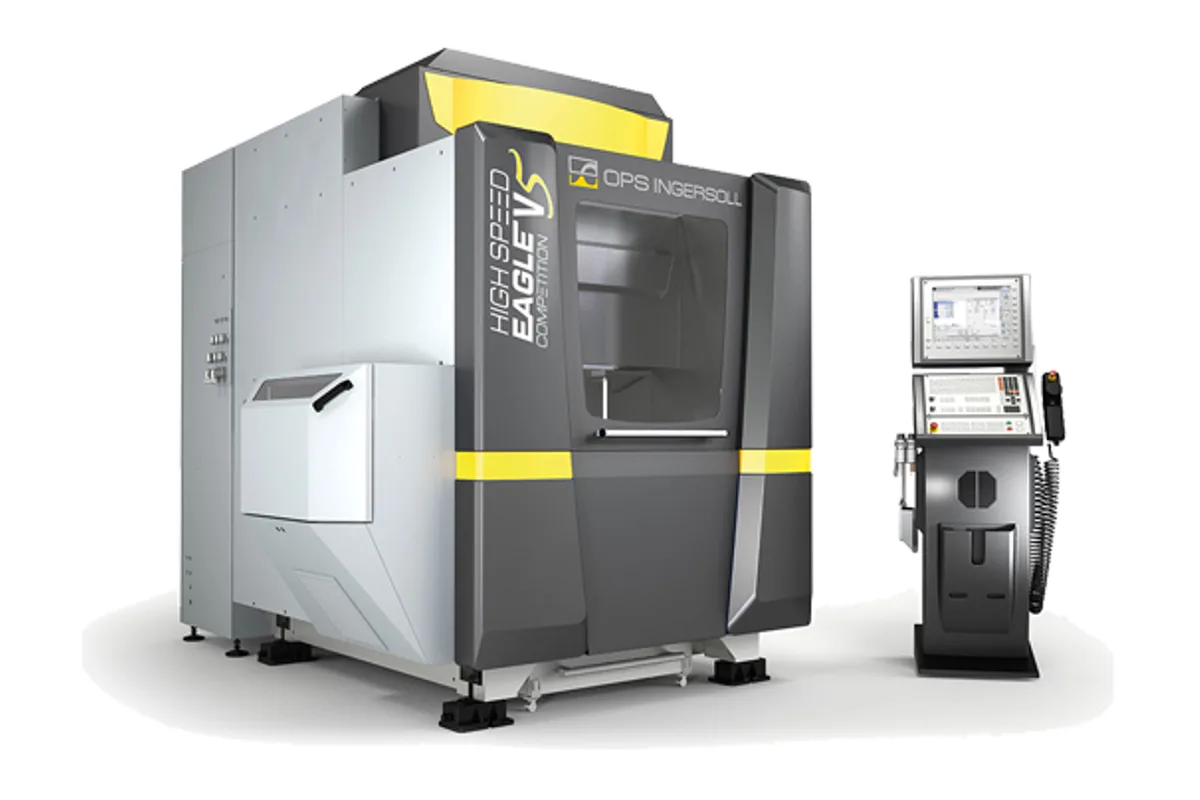

OPS Ingersoll HIGH SPEED EAGLE V5
Image: ops-ingersoll.de, OPS Ingersoll
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the OPS Ingersoll HIGH SPEED EAGLE V5 cost?
Price estimate
We do not have a price for the OPS Ingersoll HIGH SPEED EAGLE V5 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The OPS Ingersoll HIGH SPEED EAGLE V5 is a compact high-speed milling machine for 3-, 4- or 5-axis work, with 550 / 400 / 400 mm (21.7 / 15.7 / 15.7 in) of travel and a choice of two high-frequency spindles. HSK E40 runs to 42,000 rpm; HSK E50 runs to 36,000 rpm. Spindle power is given as 15 kW / 17 kW (20.1 / 22.8 hp).
The spindle choice sets the character of the machine. HSK E40 is the electrode and fine-detail option and comes with a 32-position changer. HSK E50 gives a stiffer interface for steel at the cost of top speed. If tool count is the worry, MultiTool magazines of 100 or 150 tools are optional.
Rotary axes come as an option in two forms. The geared HSC round swivel table swings B from -120° to +60° and turns C at 20 rpm with 250 kg (551 lb) on board. The torque-driven version widens B to -140° / +60°, raises C to 100 rpm and carries 200 kg (441 lb). Fitting torque drives also shifts the spindle-nose-to-table distance, from 155 / 555 mm to 205 / 605 mm. That is a detail worth checking against your tallest fixture.
OPS Ingersoll sells the machine in two equipment lines. The Competition-Line has active temperature control of the drive components and the HF spindle as standard; the Precision Line adds measures for which the maker quotes an accuracy of less than 10 µm in 5-axis machining. Both lines include a HEIDENHAIN TNC 640 control with a 19" touchscreen, a polymer concrete bed and a full enclosure, and the maker points to graphite and other dust-forming materials as well as steel. The machine weighs 8,500 kg (18,739 lb) on a 2,756 x 2,039 mm (108.5 x 80.3 in) footprint.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 550 mm (21.7 in) |
| Y Axis Travel | 400 mm (15.7 in) |
| Z Axis Travel | 400 mm (15.7 in) |
| Rapid Traverse Xyz | max. 30 m/min |
| Axis Acceleration | max. 15 m/s² |
| Table Size | 650 x 490 mm (25.6 x 19.3 in) (X x Y) |
| Max Table Load | up to 500 kg (1,102 lb) |
| Table Type | T-slot table expandable over 4th/5th axis |
| T-Slots | 5 x 14 H12 |
| Distance Spindle Nose to Table | min. 155 mm (6.1 in) / max. 555 mm (21.9 in); with torque drives in 4th and 5th axis: 205 / 605 mm |
| Distance Spindle Nose to Pallet | min. 50 mm (2.0 in) / max. 450 mm (17.7 in) (with UPC-clamping system and pallet); with torque drives in 4th and 5th axis: 100 / 500 mm |
| Workpiece Size 3 Axis | 550 / 400 / 400 mm (max. 500 kg) |
| Workpiece Size 5 Axis | Ø 400 mm; H = 380 mm (max. 250 kg) |
| Power Requirement | 32 kVA |
| Spindle Taper | HSK E40 / HSK E50 |
| Max Spindle Speed | HSK E40: 1-42,000 rpm; HSK E50: 1-36,000 rpm |
| Spindle Motor Power | 15 kW / 17 kW (20.1 / 22.8 hp) |
| Tool Capacity | 32 position (HSK E40); 24/32 position (HSK E50); optional: MultiTool 100 / 150 |
| Minimum Lubrication | included |
| CNC Control | HEIDENHAIN TNC 640 with 19" touchscreen |
| Machine Dimensions | 2,756 x 2,039 mm (108.5 x 80.3 in); H = 2,510 mm (98.8 in) |
| Machine Weight | 8,500 kg (18,739 lb) |
| B Axis Range | Geared B-axis: -120° / +60°; torque B-axis: -140° / +60° (optional HSC round swivel table) |
| C Axis Speed | Geared C-axis: 20 rpm; torque C-axis: 100 rpm (optional HSC round swivel table) |
| Swivel Table Workpiece Weight | Geared: 250 kg (551 lb); torque: 200 kg (441 lb) (optional HSC round swivel table) |
Specifications sourced from ops-ingersoll.de — verified 2026-10-05
Strengths & Limitations
Strengths
- Two spindle choices: HSK E40 to 42,000 rpm or HSK E50 to 36,000 rpm
- Optional swivel table with either geared or torque drive, the latter with a C-axis at 100 rpm
- Polymer concrete bed and full enclosure with dust- and liquid-proof guides are standard in both equipment lines
- Precision Line quoted at less than 10 µm for 5-axis machining with active temperature control of all drive components
- Laser tool measurement and an infrared measuring probe are in the standard scope
- MultiTool magazine with 100 or 150 tools available
Limitations
- Table load is up to 500 kg (1,102 lb) in 3-axis form and 250 kg (551 lb) on the geared swivel table
- The torque-driven table lowers the workpiece limit to 200 kg (441 lb)
- No HSK A63 spindle is listed, unlike the HIGH SPEED EAGLE V9
- Spindle power tops out at 17 kW (22.8 hp)
Best For
Frequently Asked Questions
01
Two high-frequency spindles are listed: HSK E40 with a range of 1-42,000 rpm and HSK E50 with 1-36,000 rpm. Spindle power is stated as 15 kW / 17 kW. The product page adds that different HF spindles from Fischer and STEPTEC are optional, and the brochure offers all milling spindles with internal coolant supply for air, aerosol or water.
02
Both share the standard scope: TNC 640 control, polymer concrete bed, sealed absolute linear encoders, full enclosure, laser and probe. The Competition-Line has active temperature control of the drive components and the HF spindle as standard. For the Precision Line the maker quotes an accuracy of less than 10 µm for 5-axis machining, with active temperature control of all drive components.
03
An HSC round swivel table mounted on the T-slot table. With gear drive, B covers -120° / +60°, C turns at 20 rpm and the workpiece may weigh 250 kg (551 lb). With torque drive, B covers -140° / +60°, C reaches 100 rpm and the limit is 200 kg (441 lb). The listed 5-axis workpiece size is Ø 400 mm by 380 mm high.
04
With the HSK E40 spindle the changer has 32 positions. For the other spindle the brochure prints the row as "24/32 position (HSK E50)". A MultiTool magazine with 100 or 150 tools is optional.
05

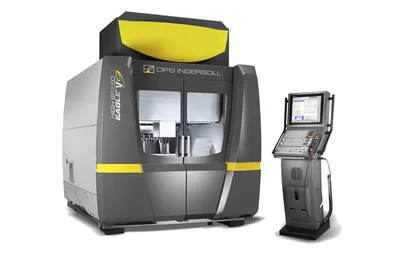

Footprint is 2,756 x 2,039 mm (108.5 x 80.3 in) with a height of 2,510 mm (98.8 in). Total weight is 8,500 kg (18,739 lb) and the connected load is 32 kVA. The HIGH SPEED EAGLE V9 is the larger alternative at 11,500 kg (25,353 lb).
More from OPS Ingersoll
Other Vertical Machining Centers (VMC)
DN Solutions DNM 4500 L 4TH
Vision Wide MHN-6040 / MHN-6047
Mazak MTV

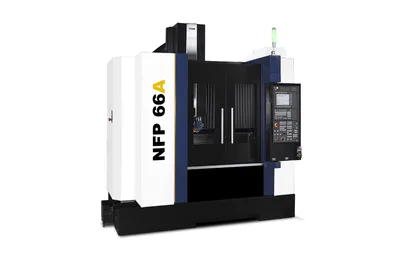

YCM NFP66A
