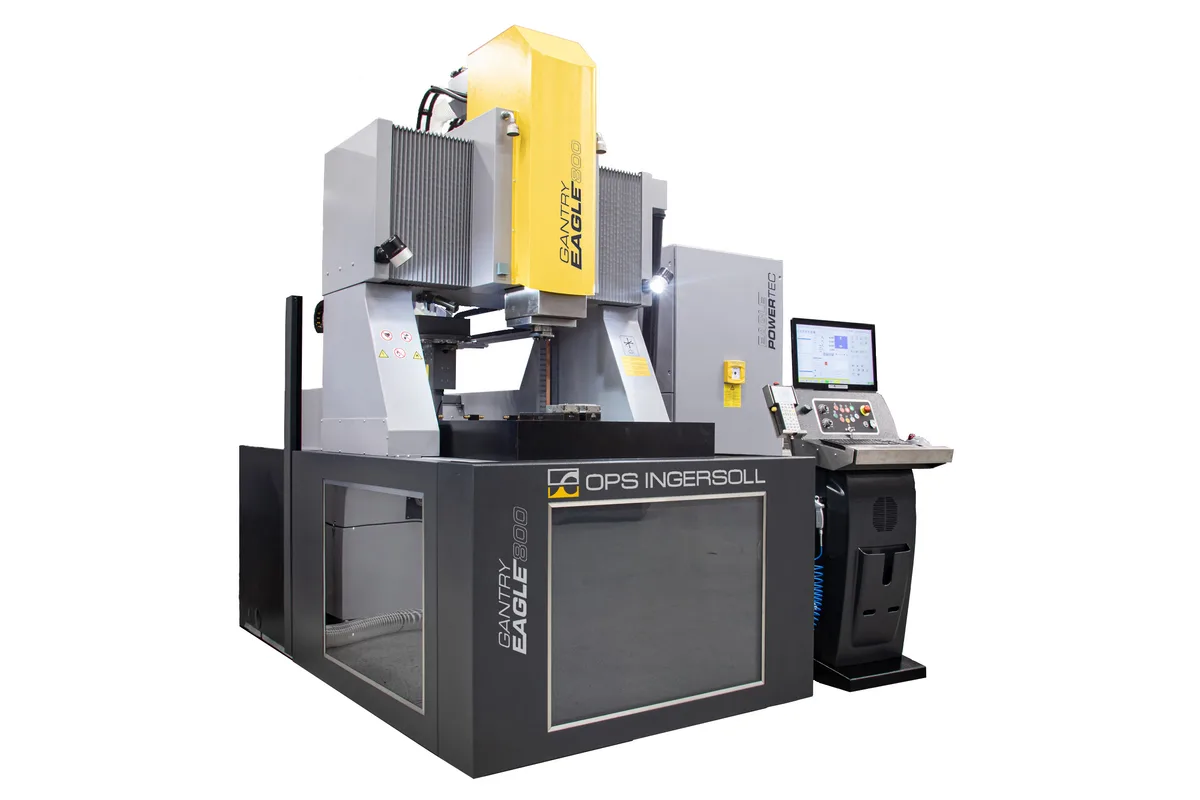

OPS Ingersoll GANTRY EAGLE 800
Image: ops-ingersoll.de, OPS Ingersoll
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel
c axis range
work tank dimensions
How much does the OPS Ingersoll GANTRY EAGLE 800 cost?
Price estimate
We do not have a price for the OPS Ingersoll GANTRY EAGLE 800 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The OPS Ingersoll GANTRY EAGLE 800 is a gantry die-sinking EDM whose long axis is Y: 850 mm (33.5 in), against 550 mm (21.7 in) in X and 450 mm (17.7 in) in Z. The maker positions it for medium and large workpieces and stresses the ratio of travel to footprint.
It is the first size in the range to show a C-axis torque in the brochure table, 120 Nm (88.5 lb-ft). That matters with wide rib electrodes or large orbiting shapes, where the C-axis has to hold position against flushing forces. Head load rises with it, to 200 kg (441 lb), although the limits for electrodes changed on the C-axis stay at 50 kg (110 lb) by hand and 15 kg (33 lb) automatically.
Loading capacity grows faster than travel. The table measures 760 x 1,000 mm (29.9 x 39.4 in) and takes 2,000 kg (4,409 lb), twice the GANTRY EAGLE 500 rating of 1,000 kg (2,205 lb), while X gains very little over that machine's 525 mm (20.7 in). Dielectric volume doubles as well, to 800 l, and the filter unit is 32 m². Tank size is 800 x 1,100 x 480 mm (31.5 x 43.3 x 18.9 in), filling to 450 mm (17.7 in).
Electrically the machine asks for no more than the small frames: 16 kVA, 32 A, 400 V / 50 Hz. The standard generator is the PowerTEC PT60 at 60 A with 110 A optional. Buyers who want the PowerSPARK generator on this frame size should look at the EAGLE G80 Competition, which has the same travels.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 550 mm (21.7 in) |
| Y Axis Travel | 850 mm (33.5 in) |
| Z Axis Travel | 450 mm (17.7 in) |
| C Axis Range | 360° |
| Work Tank Dimensions | 800 x 1,100 x 480 mm (31.5 x 43.3 x 18.9 in) (x/y/z) |
| Max Table Load | 2,000 kg (4,409 lb) |
| Dielectric Level Max | 450 mm (17.7 in), programmable/automatic |
| Table Size | 760 x 1,000 mm (29.9 x 39.4 in) (L x W) |
| Max Head Load | 200 kg (441 lb) |
| Generator | EAGLE PowerTEC fine finish generator PT60 |
| Power Jump Z Speed | 18 m/min |
| Electrode Changer Positions | 20 positions (option: 30) |
| Filter Unit | 32 m² paper filter |
| Fire Extinguishing System | CO2 fire-extinguishing system |
| Generator Weight | 640 kg (1,411 lb) |
| Power Requirement | 16 kVA |
| Fuse Protection | 32 A |
| Voltage Frequency | 400 V / 50 Hz |
| Work Tank Type | Rise and fall tank – filled movable |
| Distance Electrode Chuck to Table | min. 135 mm (5.3 in) / max. 585 mm (23.0 in) (maximum values, may vary with the clamping system) |
| C Axis Speed | 1-20 rpm (adjustable) |
| C Axis Angle Positioning | 0.001° |
| Electrode Load Manual Change | 50 kg (110 lb) (maximum value) |
| Electrode Load Automatic Change | 15 kg (33 lb) (maximum value) |
| C Axis Torque | 120 Nm (88.5 lb-ft) |
| CNC Control | PC-NC-dialog, 2 x 32 bit |
| Drive Type | digital AC-servo-drive |
| Filter System | Cartridge (integrated) |
| Dielectric Volume | 800 l |
| Electrode Changer Type | Pick-up rotary disc |
| Electrode Weight Single | 15 kg (33 lb) (maximum value) |
| Electrode Weight Total | 60 kg (132 lb) (maximum value) |
| Generator Type | Adaptive current |
| Automatic Lubrication | Standard |
| Chiller Cooling Power | 3.9 kW |
| Co2 Fire Extinguisher Size | 8 kg (18 lb), DIN 14497 |
| Machining Current Max | 60 A (option: 110 A) |
Specifications sourced from ops-ingersoll.de — verified 2026-10-05
Strengths & Limitations
Strengths
- C-axis torque of 120 Nm (88.5 lb-ft) and a 200 kg (441 lb) head load for large electrodes
- 850 mm (33.5 in) of Y travel with a 760 x 1,000 mm (29.9 x 39.4 in) table
- Table load capacity of 2,000 kg (4,409 lb) for medium and large mould halves
- 800 l of dielectric and a 32 m² filter unit
- Runs on a 16 kVA, 32 A supply, like the smaller frames in the range
Limitations
- X travel is 550 mm (21.7 in), barely more than the GANTRY EAGLE 500 at 525 mm (20.7 in)
- Automatic electrode changes remain limited to 15 kg (33 lb), whatever the head can carry
- Z travel of 450 mm (17.7 in) is no greater than on the GANTRY EAGLE 500
- The standard electrode changer still holds 20 positions; a 30 position unit is the only listed upgrade
Best For
Frequently Asked Questions
01
The work table is rated for 2,000 kg (4,409 lb) on a surface of 760 x 1,000 mm (29.9 x 39.4 in). The tank around it is 800 x 1,100 x 480 mm (31.5 x 43.3 x 18.9 in), and the dielectric can be raised to 450 mm (17.7 in) under program control.
02
The integrated C-axis turns 360°, runs at an adjustable 1-20 rpm and positions to 0.001°. The brochure lists a torque of 120 Nm (88.5 lb-ft). It accepts electrodes up to 50 kg (110 lb) when changed manually and 15 kg (33 lb) when changed automatically, both given as maximum values.
03
The GANTRY EAGLE 1200 is a much larger machine, with 1,010 mm (39.8 in) of X and a 7,500 kg (16,534 lb) table load, a linear electrode magazine and an 18 kVA supply. The GANTRY EAGLE 800 stays with the rotary-disc changer and 16 kVA, and fits work that is long in one direction only.
04
Standard is the EAGLE PowerTEC fine finish generator PT60, an adaptive-current type with 60 A maximum machining current. Options include a 110 A generator, a technology package for fine finish and carbide machining and a 30 position electrode changer.
