OPS Ingersoll GANTRY EAGLE 2000

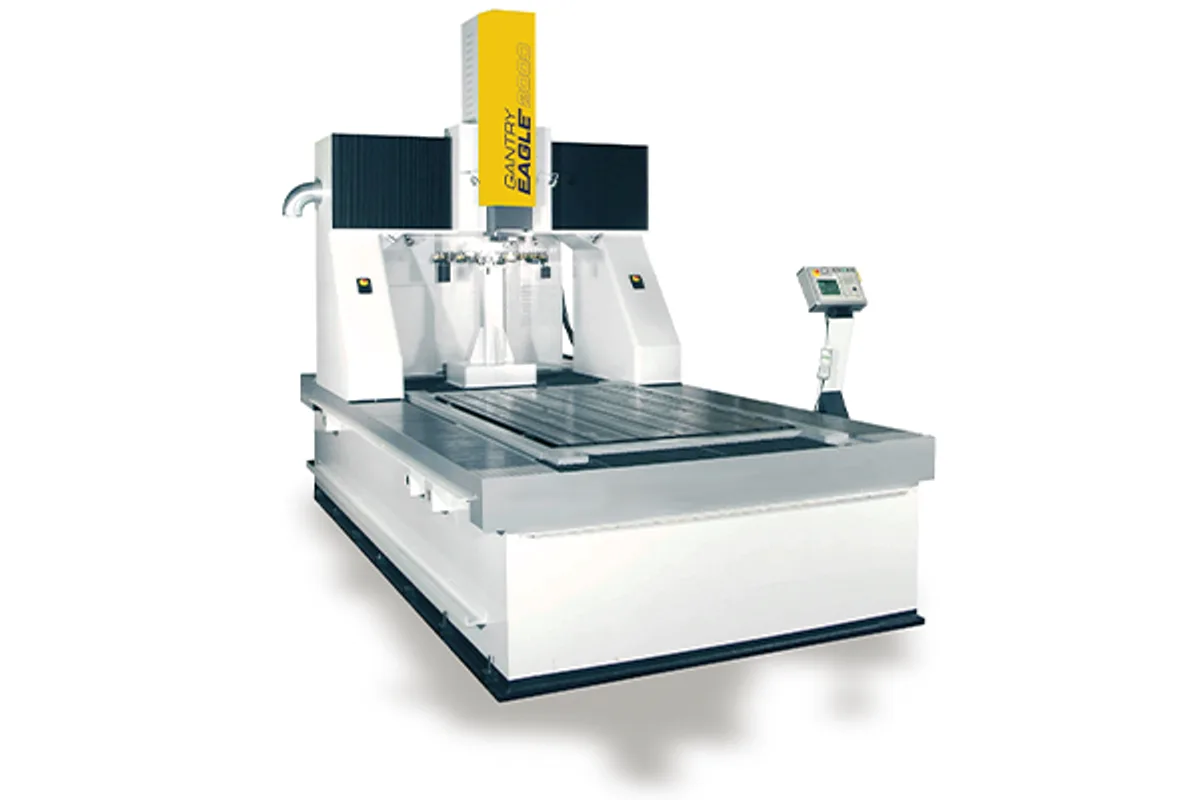

Image: ops-ingersoll.de, OPS Ingersoll
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel
c axis range
work tank dimensions
How much does the OPS Ingersoll GANTRY EAGLE 2000 cost?
Price estimate
We do not have a price for the OPS Ingersoll GANTRY EAGLE 2000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The OPS Ingersoll GANTRY EAGLE 2000 is the largest die-sinking EDM the maker offers: 1,550 mm (61.0 in) of X, 2,750 mm (108.3 in) of Y and 1,000 mm (39.4 in) of Z, with a table load of 30,000 kg (66,138 lb). OPS Ingersoll bills it as the world's largest die-sinking EDM machine with a lowerable work tank.
The load rating comes from how the workpiece is carried. It rests statically on the table, which the maker gives as the reason for the high permissible weight, while the lifting container around it moves under program control, filled. That container measures 2,020 x 3,220 x 1,350 mm (79.5 x 126.8 x 53.1 in) and lowers completely into the base. With it down, the 1,870 x 3,080 mm (73.6 x 121.3 in) table is accessible for loading, set-up and inspection.
Dielectric level adjusts automatically up to 1,300 mm (51.2 in). The filter system and dielectric supply sit in the machine base, an arrangement the maker presents as leakage protection, and the filter unit is 64 m². The machine can be installed underground or on the floor.
Head load is listed at 1,500 kg (3,307 lb), five times the 300 kg (661 lb) of the GANTRY EAGLE 1400plus. Large electrodes go on through a RAM clamping system with an optional 4/18 changer; the standard electrode changer has 20 positions. The generator is the PowerTEC PT60 fine finish unit, and EAGLE PowerJUMP runs at 18 m/min in Z. For a machine of this size the public table is brief. Weight, connected load and footprint have to come from the floor plan and the maker's quotation.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,550 mm (61.0 in) |
| Y Axis Travel | 2,750 mm (108.3 in) |
| Z Axis Travel | 1,000 mm (39.4 in) |
| C Axis Range | 360° |
| Work Tank Dimensions | 2,020 x 3,220 x 1,350 mm (79.5 x 126.8 x 53.1 in) (x/y/z) |
| Max Table Load | 30,000 kg (66,138 lb) |
| Dielectric Level Max | 1,300 mm (51.2 in), programmable/automatic |
| Table Size | 1,870 x 3,080 mm (73.6 x 121.3 in) (L x W) |
| Max Head Load | 1,500 kg (3,307 lb) |
| Generator | EAGLE PowerTEC fine finish generator PT60 |
| Power Jump Z Speed | 18 m/min |
| Electrode Changer Positions | 20 positions (option: 30 / 48) |
| Filter Unit | 64 m² paper filter |
| Fire Extinguishing System | CO2 fire-extinguishing system |
Specifications sourced from ops-ingersoll.de — verified 2026-10-05
Strengths & Limitations
Strengths
- 30,000 kg (66,138 lb) table load, with the workpiece stored statically on the table
- Travels of 1,550 / 2,750 / 1,000 mm (61.0 / 108.3 / 39.4 in)
- Lifting container lowers fully into the base and moves filled under program control
- Head load of 1,500 kg (3,307 lb) for very large electrodes
- 64 m² filter unit, with filter system and dielectric supply housed in the machine base
- Installation underground or on the floor
Limitations
- The published table has no machine weight, power input or footprint
- The standard changer holds 20 positions; larger changers and the RAM clamping system are options
- A 110 amps generator is optional; the standard unit is the PT60 fine finish generator
- Foundation, pit and crane planning are substantial for a 30 t workpiece capacity
Best For
Frequently Asked Questions
01
The work table is rated for 30,000 kg (66,138 lb), and the maker headlines the machine as suited to workpieces up to 30 t. It attributes the high permissible weight to static storage on the table: the workpiece does not move, and the filled lifting container travels around it under program control.
02
Axis travel is 1,550 mm (61.0 in) in X, 2,750 mm (108.3 in) in Y and 1,000 mm (39.4 in) in Z, plus a 360° C-axis. The work tank is 2,020 x 3,220 x 1,350 mm (79.5 x 126.8 x 53.1 in), the table surface 1,870 x 3,080 mm (73.6 x 121.3 in), and the maximum dielectric level 1,300 mm (51.2 in).
03
It can be installed underground or on the floor. The maker says the machine offers optimum accessibility for loading, set-up and inspection, and that the lifting container can be lowered fully into the base. The filter system and the dielectric supply are positioned in the machine base, which is described as leakage protection.
04
The standard list includes the EAGLE PowerTEC fine finish generator PT60, EAGLE PowerJUMP at 18 m/min in the Z-axis, linear measuring systems in all axes, the C-axis, an electrode changer with 20 positions, programmable pressure flushing, a 64 m² paper filter unit and a CO2 fire-extinguishing system.
