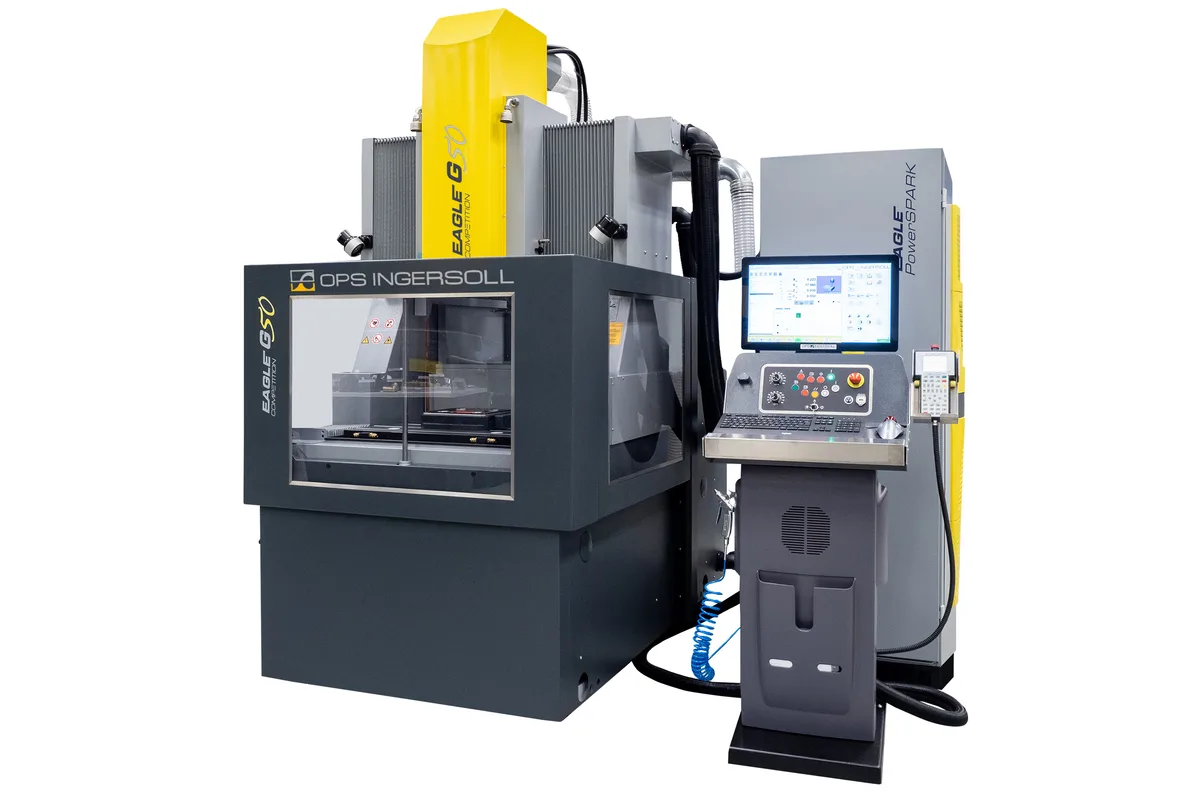

OPS Ingersoll EAGLE G50 Competition
Image: ops-ingersoll.de, OPS Ingersoll
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel
c axis range
work tank dimensions
How much does the OPS Ingersoll EAGLE G50 Competition cost?
Price estimate
We do not have a price for the OPS Ingersoll EAGLE G50 Competition that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The OPS Ingersoll EAGLE G50 Competition takes the frame size of a mid-range gantry sinker EDM and fits it with the maker's newer generator and control. Travel is 525 / 400 / 450 mm (20.7 / 15.7 / 17.7 in) with a 360° C-axis, and the table carries 1,000 kg (2,205 lb).
Those dimensions match the GANTRY EAGLE 500 row for row: the same 770 x 670 x 440 mm (30.3 x 26.4 x 17.3 in) work tank, the same 750 x 650 mm (29.5 x 25.6 in) table, the same 100 kg (220 lb) head load. The difference is in the equipment list. Where the GANTRY EAGLE 500 is listed with the PowerTEC fine finish generator PT60, this machine has the EAGLE PowerSPARK Generator at 60 amps, a PowerSPARK fine finish package and a precision package with head cooling, spindle nut cooling and work tank temperature control. A telescopic exhaust unit at the working head is standard too.
OPS Ingersoll's claim for the PowerSPARK technology is surface quality on graphite: fine, even matt glossy finishes. The page gives no roughness figure beyond the package name, so ask for sample parts in your own electrode grade before counting on it.
Flushing is helped by the EAGLE PowerJUMP, with 18 m/min in the Z-axis. The standard electrode changer has 20 positions and the dielectric is cleaned through a 16 m² paper filter. A 110 amps generator is the main power option. The maker publishes only a short table for this model. Machine weight, connected load and footprint are not on the page, so get the floor plan and installation data before planning the site.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 525 mm (20.7 in) |
| Y Axis Travel | 400 mm (15.7 in) |
| Z Axis Travel | 450 mm (17.7 in) |
| C Axis Range | 360° |
| Work Tank Dimensions | 770 x 670 x 440 mm (30.3 x 26.4 x 17.3 in) (x/y/z) |
| Max Table Load | 1,000 kg (2,205 lb) |
| Dielectric Level Max | 375 mm (14.8 in), programmable/automatic |
| Table Size | 750 x 650 mm (29.5 x 25.6 in) (L x W) |
| Max Head Load | 100 kg (220 lb) |
| Generator | EAGLE PowerSPARK Generator |
| Machining Current Max | 60 amps (option: 110 amps) |
| Power Jump Z Speed | 18 m/min |
| Electrode Changer Positions | 20 positions (option: 30) |
| Filter Unit | 16 m² paper filter |
| Fire Extinguishing System | CO2 fire-extinguishing system |
Specifications sourced from ops-ingersoll.de — verified 2026-10-05
Strengths & Limitations
Strengths
- EAGLE PowerSPARK Generator with 60 amps as standard, which the maker credits with fine, matt glossy graphite surfaces
- Precision package with head cooling, spindle nut cooling and work tank temperature control is in the standard list
- 525 / 400 / 450 mm (20.7 / 15.7 / 17.7 in) of travel over a 750 x 650 mm (29.5 x 25.6 in) table rated 1,000 kg (2,205 lb)
- EAGLE PowerJUMP runs at 18 m/min in Z, and the 20-position electrode changer is standard
- Lowerable work tank of 770 x 670 x 440 mm (30.3 x 26.4 x 17.3 in) with a programmable level up to 375 mm (14.8 in)
Limitations
- The published table is short: no machine weight, power input or footprint is given on the product page
- Head load stops at 100 kg (220 lb), half the 200 kg (441 lb) of the EAGLE G80 Competition
- The 110 amps generator, the 30 position changer and the carbide technology package are options
- Y travel of 400 mm (15.7 in) limits long mould plates; the EAGLE G80 Competition offers 850 mm (33.5 in)
Best For
Frequently Asked Questions
01
The envelope is the same on both: 525 / 400 / 450 mm of travel, a 1,000 kg (2,205 lb) table load and a 100 kg (220 lb) head load. The equipment differs. The GANTRY EAGLE 500 is listed with the EAGLE PowerTEC fine finish generator PT60, while the EAGLE G50 Competition has the EAGLE PowerSPARK Generator with 60 amps, the PowerSPARK fine finish package and a precision package with head, spindle nut and work tank temperature control.
02
The standard list names the EAGLE PowerSPARK Generator with 60 amps and a PowerSPARK fine finish package. A 110 amps generator appears under further options, together with a technology package for fine finish and carbide machining. The maker describes PowerSPARK as its new control technology and links it to matt glossy surfaces with graphite.
03
The tank measures 770 x 670 x 440 mm (30.3 x 26.4 x 17.3 in) in x/y/z and lowers out of the way for loading. The maximum dielectric level is 375 mm (14.8 in) and is set by program or automatically. Inside it sits a 750 x 650 mm (29.5 x 25.6 in) table with a 1,000 kg (2,205 lb) load capacity.
04
Yes. A 20-position electrode changer is standard and a 30 position changer is optional. Beyond that, the product page lists MultiChange light or performance handling systems that can connect up to 2 machines, with interface preparation for third-party automation as a further extension.
