OPS Ingersoll GANTRY EAGLE 1200

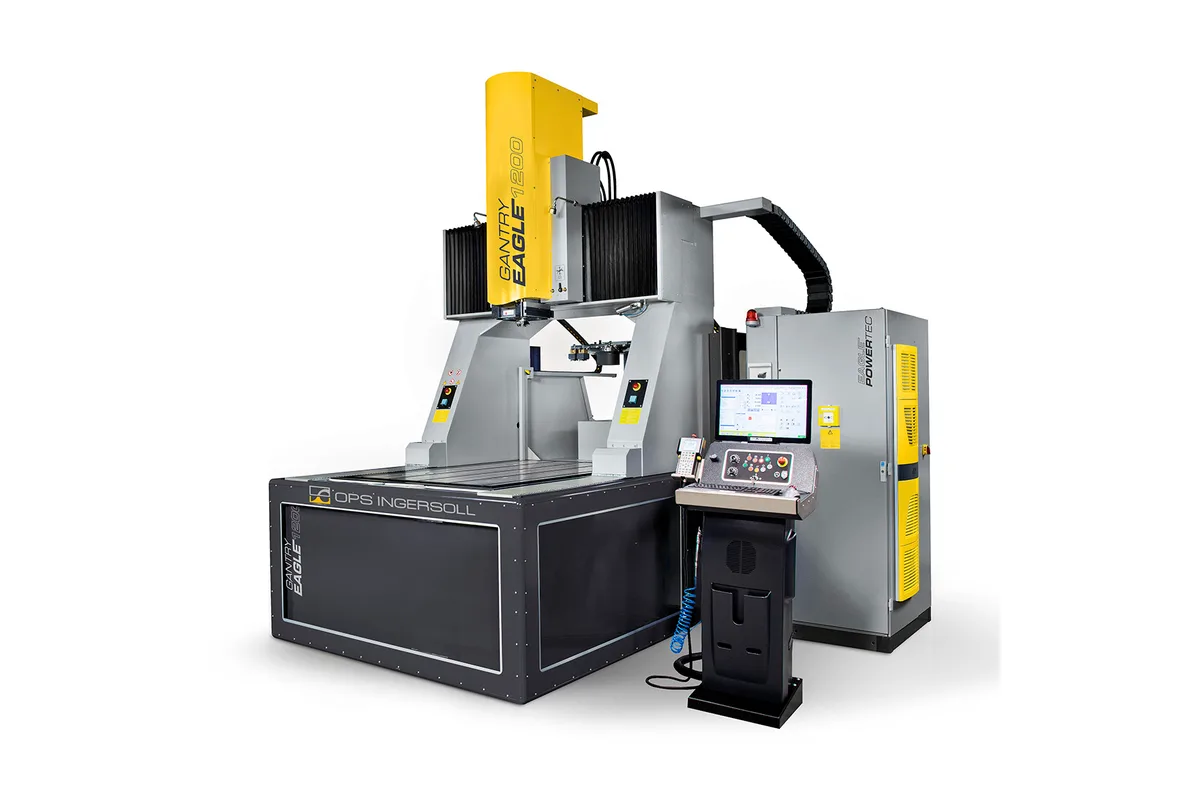

Image: ops-ingersoll.de, OPS Ingersoll
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel
c axis range
work tank dimensions
How much does the OPS Ingersoll GANTRY EAGLE 1200 cost?
Price estimate
We do not have a price for the OPS Ingersoll GANTRY EAGLE 1200 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

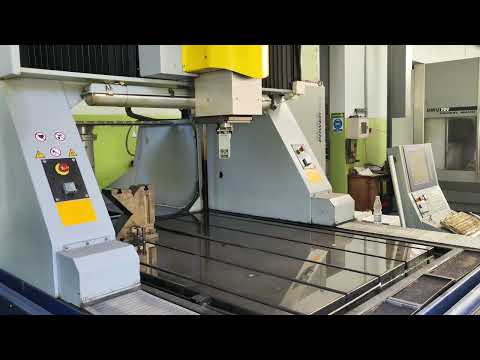

Overview
The OPS Ingersoll GANTRY EAGLE 1200 is a large-format gantry sinker EDM for big moulds: 1,010 mm (39.8 in) of X, 1,510 mm (59.4 in) of Y and 700 mm (27.6 in) of Z, over a table that carries 7,500 kg (16,534 lb).
On a machine this size the tank decides how the day goes. The maker lists no filling or emptying times, because the 1,270 x 1,770 x 680 mm (50.0 x 69.7 x 26.8 in) tank is raised and lowered while full. It also names complete and partial machining among the machine's features. The level is programmable up to 650 mm (25.6 in), so it can be set to the height the job needs.
Electrode handling changes at this size. In place of the rotary disc of the smaller frames, the standard changer is a pick-up linear magazine with 13 positions; 30 or 48 positions are optional. Single electrodes may weigh 25 kg (55 lb) for automatic changing, against 15 kg (33 lb) on the GANTRY EAGLE 800, and the magazine carries 150 kg (331 lb). For electrodes heavier still, a RAM clamping system mounts them on the head by pallet, with an optional 2/18 combi changer. Head load is 300 kg (661 lb) and C-axis torque 120 Nm (88.5 lb-ft).
Clearance under the chuck runs from 100 mm (3.9 in) to 800 mm (31.5 in), and the machine draws 18 kVA through 32 A fusing. OPS Ingersoll also offers a GANTRY EAGLE 1200plus with a taller tank for higher workpieces. Its figures appear only as footnotes in the brochure, so confirm them directly if the extra height matters.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,010 mm (39.8 in) |
| Y Axis Travel | 1,510 mm (59.4 in) |
| Z Axis Travel | 700 mm (27.6 in) |
| C Axis Range | 360° |
| Work Tank Dimensions | 1,270 x 1,770 x 680 mm (50.0 x 69.7 x 26.8 in) (x/y/z) |
| Max Table Load | 7,500 kg (16,534 lb) |
| Dielectric Level Max | 650 mm (25.6 in), programmable/automatic |
| Table Size | 1,140 x 1,640 mm (44.9 x 64.6 in) (L x W) |
| Max Head Load | 300 kg (661 lb) |
| Generator | EAGLE PowerTEC fine finish generator PT60 |
| Power Jump Z Speed | 18 m/min |
| Electrode Changer Positions | 13 positions (option: 30 / 48) |
| Filter Unit | 32 m² paper filter |
| Fire Extinguishing System | CO2 fire-extinguishing system |
| Generator Weight | 640 kg (1,411 lb) |
| Power Requirement | 18 kVA |
| Fuse Protection | 32 A |
| Voltage Frequency | 400 V / 50 Hz |
| Work Tank Type | Rise and fall tank – filled movable |
| Distance Electrode Chuck to Table | min. 100 mm (3.9 in) / max. 800 mm (31.5 in) (maximum values, may vary with the clamping system) |
| C Axis Speed | 1-20 rpm (adjustable) |
| C Axis Angle Positioning | 0.001° |
| Electrode Load Manual Change | 50 kg (110 lb) (maximum value) |
| Electrode Load Automatic Change | 25 kg (55 lb) (maximum value) |
| C Axis Torque | 120 Nm (88.5 lb-ft) |
| CNC Control | PC-NC-dialog, 2 x 32 bit |
| Drive Type | digital AC-servo-drive |
| Filter System | Cartridge (integrated) |
| Electrode Changer Type | Pick-up linear magazine (option: rotary disc) |
| Combi Magazine Positions | 2/18 (optional) |
| Electrode Weight Single | 25 kg (55 lb) (maximum value) |
| Electrode Weight Total | 150 kg (331 lb) (option: 200 kg (441 lb)) (maximum values) |
| Generator Type | Adaptive current |
| Automatic Lubrication | Standard |
| Chiller Cooling Power | 3.9 kW |
| Co2 Fire Extinguisher Size | 16 kg (35 lb), DIN 14497 |
| Machining Current Max | 60 A (option: 110 A) |
Specifications sourced from ops-ingersoll.de — verified 2026-10-05
Strengths & Limitations
Strengths
- No filling or emptying times: the tank is raised and lowered while filled
- 7,500 kg (16,534 lb) table load on a 1,140 x 1,640 mm (44.9 x 64.6 in) table
- Up to 800 mm (31.5 in) between electrode chuck and table
- Linear magazine handles electrodes up to 25 kg (55 lb) each and 150 kg (331 lb) in total, 200 kg (441 lb) as an option
- RAM clamping system available for large, heavy electrodes on pallets
- 300 kg (661 lb) head load with 120 Nm (88.5 lb-ft) of C-axis torque
Limitations
- Only 13 changer positions as standard, fewer than on the GANTRY EAGLE 800
- Dielectric level is limited to 650 mm (25.6 in); taller work needs the plus variant
- No machine weight is given in this table; confirm floor loading with the maker
- Chiller cooling power is 3.9 kW, the same as on the far smaller GANTRY EAGLE 400
Best For
Frequently Asked Questions
01
Axis travel is 1,010 mm (39.8 in) in X, 1,510 mm (59.4 in) in Y and 700 mm (27.6 in) in Z. The table surface is 1,140 x 1,640 mm (44.9 x 64.6 in) with a 7,500 kg (16,534 lb) load capacity, inside a tank of 1,270 x 1,770 x 680 mm (50.0 x 69.7 x 26.8 in).
02
A pick-up linear magazine with 13 positions is standard. Rotary-disc changers with 30 or 48 positions are optional, and a RAM clamping system with a 2/18 combi changer is offered for pallet-mounted electrodes. Automatic changing is rated for 25 kg (55 lb) per electrode and 150 kg (331 lb) in total, or 200 kg (441 lb) with the optional changer.
03
It is a variant whose tank height has been increased to make room for higher workpieces, according to the product page. The brochure gives its values only as bracketed footnotes to the standard machine's column and adds that detailed specifications are available on request. The figures here are for the standard machine.
04
Power input is 18 kVA at 400 V / 50 Hz with 32 A fuse protection. The generator cabinet weighs 640 kg (1,411 lb). The chiller is rated at 3.9 kW of cooling power, and the CO2 fire extinguisher is a 16 kg (35 lb) unit.
