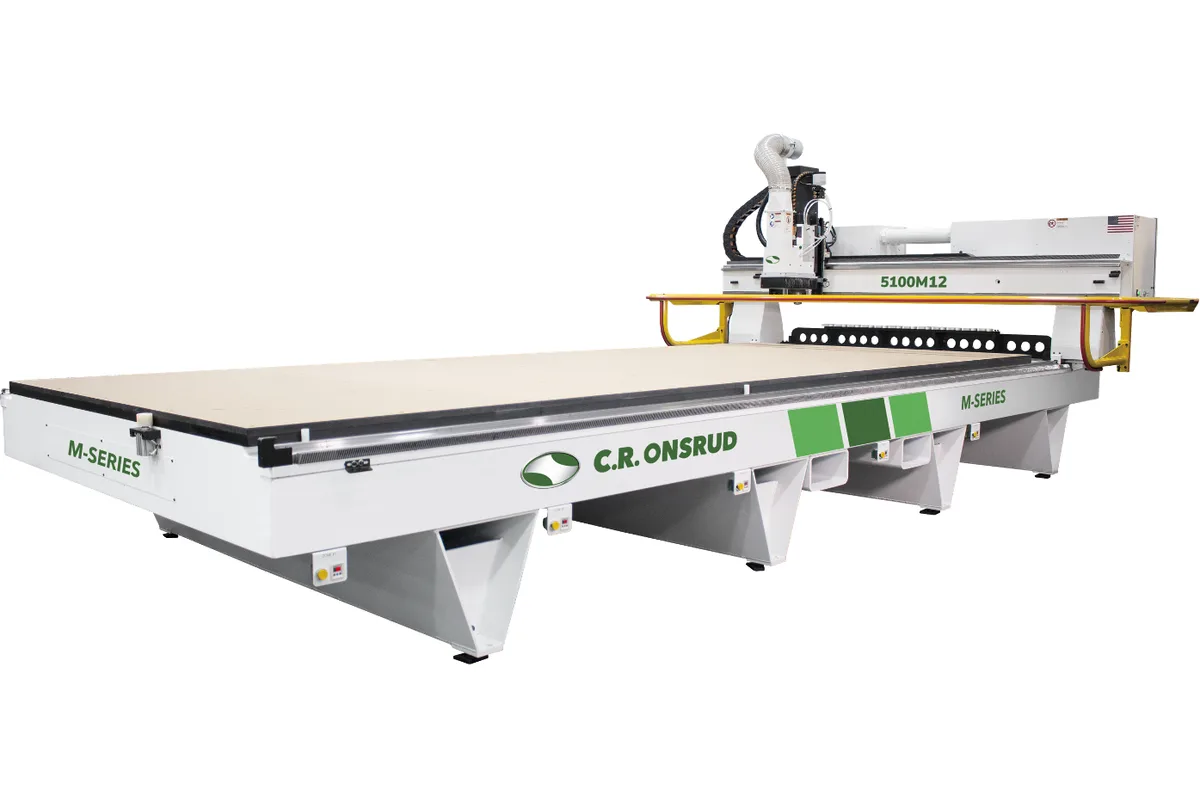

Onsrud 5100M
Image: cronsrud.com, Onsrud
Key Specifications
Max Spindle
Tool Capacity
Spindle Power
table size x
table size y
machine length
How much does the Onsrud 5100M cost?
Price estimate
We do not have a price for the Onsrud 5100M that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Onsrud 5100M carries a table 201 in (5,100 mm) long and 83 in (2,109 mm) wide, which puts it among the largest beds in the M-Series while keeping the series' light, economical gantry. Spindle power is 12 hp (8.9 kW) with a top speed of 24,000 rpm.
Five vacuum zones are standard. That is a meaningful number on a bed of this length: it lets an operator hold work on part of the table and leave the rest open, and it keeps pump capacity concentrated where the sheet is. For shops that cut many part sizes in a shift, zoning is likely to matter more day to day than the headline table size.
The frame measures 290 in (7,366 mm) by 140 in (3,556 mm), with the same 91 in (2,312 mm) height as every other M-Series model. Only the 6100M is longer.
As elsewhere in the series, 12 tools are standard, the Z-stroke is 11 in (279 mm), and the listed upgrades are extra spindles, up to 3, and a 10-position Hide-A-Way changer. A dual-drive gantry and welded steel frame are part of the maker's description of the line. Buyers who need more than 12 hp on a bed this long are outside what the M-Series lists.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size X | 201 in (5,100 mm) |
| Table Size Y | 83 in (2,109 mm) |
| Machine Length | 290 in (7,366 mm) |
| Machine Width | 140 in (3,556 mm) |
| Machine Height | 91 in (2,312 mm) |
| Vacuum Zones Standard | 5 |
| Spindle Motor Power | 12 hp (8.9 kW) |
| Max Spindle Speed | 24,000 rpm |
| Tool Capacity | 12; 10-position standard with a 4' x 8' table size (larger capacity tool changers optional) |
| Z Stroke | 11 in (279 mm) |
| Spindles Optional | Up to 3 |
| Tool Changer Optional | 10-Pos / Hide-A-Way |
Specifications sourced from cronsrud.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Table X of 201 in (5,100 mm) with 83 in (2,109 mm) of Y
- 5 vacuum zones as standard for partial-table holding
- Machine height unchanged at 91 in (2,312 mm)
- Standard 12-tool capacity and an 11 in (279 mm) Z-stroke
Limitations
- Needs 290 in (7,366 mm) of length before loading space is counted
- 12 hp (8.9 kW) is modest for a bed this size
- No Z-stroke option is listed for the series
Best For
Frequently Asked Questions
01
201 in (5,100 mm) in X and 83 in (2,109 mm) in Y. It is divided into 5 vacuum zones as standard, and the machine around it is 290 in (7,366 mm) long and 140 in (3,556 mm) wide.
02
Yes, one. The 6100M has a table X of 240 in (6,100 mm), 6 vacuum zones and a machine length of 330 in (8,382 mm). Everything else in the table is shared between the two.
03
12 hp (8.9 kW) and up to 24,000 rpm. Additional spindles, up to 3 in total, are the listed way to raise output; a higher-power spindle is not shown for the M-Series.
04
A touchscreen FANUC controller is standard on the M-Series. Onsrud also offers its own controller interface built specifically for this series as an alternative.
