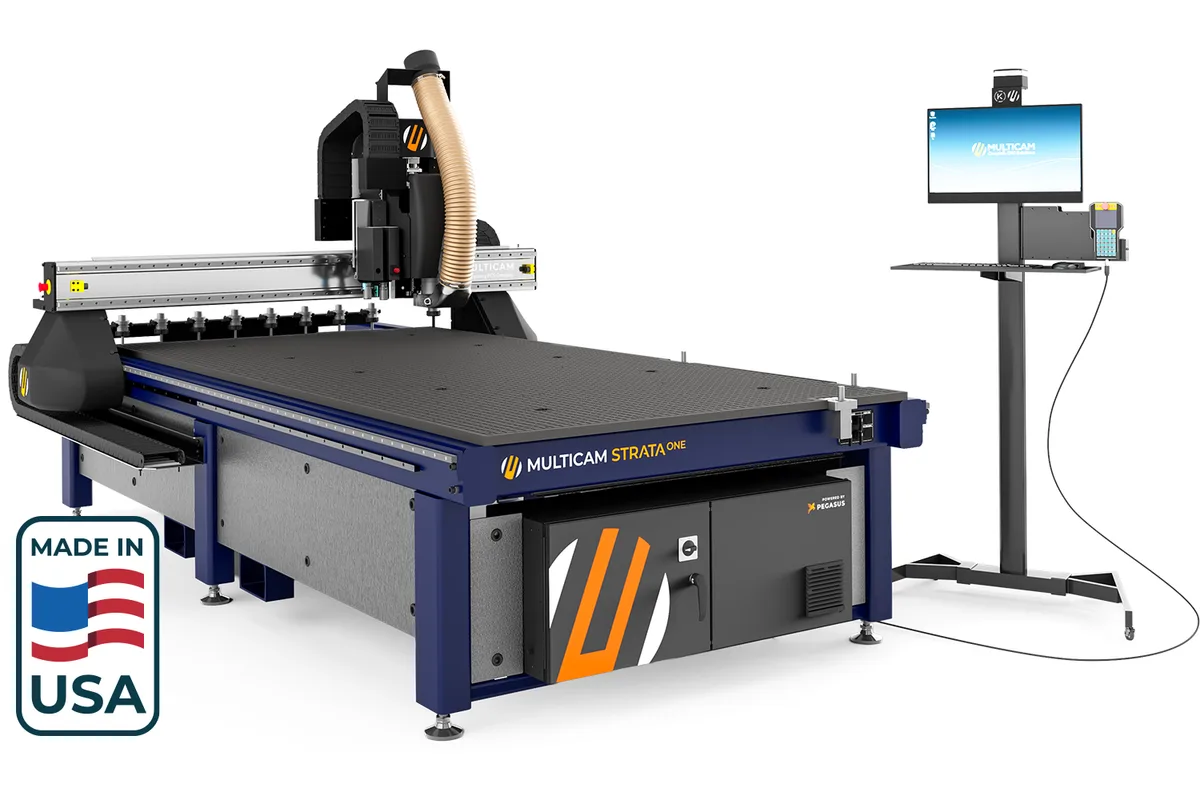

MultiCam STRATA One
Image: multicam.com, MultiCam
Key Specifications
Table Size
Rapid Traverse
Spindle Power
Repeatability
max material thickness
gantry height
How much does the MultiCam STRATA One cost?
Price estimate
We do not have a price for the MultiCam STRATA One that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The MultiCam STRATA One is a three-axis sheet router built on the company's Pegasus platform and Coreo software, with a listed cutting speed of 1,500 IPM (635 mm/s) and a rapid traverse of 2,121 IPM (898 mm/s). Five table sizes are offered, starting at model 103 with 50 x 100 in (127 x 254 cm) and ending at model 305 with 80 x 144 in (203 x 366 cm). MultiCam builds it in Dallas, Texas.
The pitch for this machine is less about the motion figures than about ownership. MultiCam describes a simplified architecture with fewer components, a streamlined electrical design and standardized platform elements, plus enhanced diagnostics and detailed reporting for the operator. None of that shows up in a spec table, so ask to see the diagnostic screens during a demonstration.
Mechanically the layout is familiar: helical drive on X and Y, ball screw on Z, 25 mm linear ball-bearing profile rails and an all-steel tube frame. Repeatability is ±0.001 in (±0.025 mm). Gantry height is 6 in (152 mm) and the maximum material thickness is 3 in (76 mm), which keeps the STRATA One to sheet and plate work. On the Apex1R the gantry is 7 in (178 mm) for the same 3 in (76 mm) limit.
Several things a buyer may expect are options. The standard work surface is 1 in (25.4 mm) phenolic, with the vacuum table and pumps listed separately. Spindles are optional features too: 10 HP collet spindles, or a 10 HP and 13.4 HP ATC spindle paired with the linear automatic spindle tool changer. Standard equipment does include the automatic material surface probe and tool calibration sensor and a pneumatic dust boot. Surface mapping, a quick change knife and the 2 mm / 5 mm electric oscillating knife round out the list.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | Models 103: 50 x 100 in (127 x 254 cm); 204: 60 x 120 in (152 x 305 cm); 205: 60 x 144 in (152 x 366 cm); 304: 80 x 120 in (203 x 305 cm); 305: 80 x 144 in (203 x 366 cm) |
| Max Material Thickness | 3 in (76 mm) |
| Gantry Height | 6 in (152 mm) |
| Repeatability | ±0.001 in (±0.025 mm) |
| Cutting Feed Rate | 1,500 IPM (635 mm/s) |
| Rapid Traverse Rate | 2,121 IPM (898 mm/s) |
| Drive System X Y | Helical |
| Drive System Z | Ball screw |
| Work Surface | 1 in (25.4 mm) phenolic |
| Linear Rails | 25 mm linear ball-bearing profile rails |
| Spindle Motor Power | 10 HP collet spindles; 10 HP and 13.4 HP ATC spindle (optional features) |
| CNC Control | MultiCam EZ Control operator interface; Pegasus platform and Coreo software |
Specifications sourced from multicam.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Rapid traverse of 2,121 IPM (898 mm/s) and cutting speed of 1,500 IPM (635 mm/s), both above the Apex1R's 1,838 IPM (778 mm/sec) and 1,300 IPM (550.3 mm/sec)
- ATC spindle option up to 13.4 HP with a linear automatic spindle tool changer
- Simplified architecture with fewer components and a streamlined electrical design, aimed at easier service
- Automatic material surface probe, tool calibration sensor and pneumatic dust boot are standard features
- Enhanced diagnostics and detailed reporting through the Pegasus platform and Coreo software
Limitations
- Gantry height is 6 in (152 mm) and material thickness tops out at 3 in (76 mm)
- No table smaller than model 103 at 50 x 100 in (127 x 254 cm)
- Vacuum table and pumps are optional; the standard surface is 1 in (25.4 mm) phenolic
- Both tool changers, for spindle tools and for knives, are optional features
Best For
Frequently Asked Questions
01
MultiCam lists a cutting speed of 1,500 IPM (635 mm/s) and a rapid traverse of 2,121 IPM (898 mm/s). Repeatability is ±0.001 in (±0.025 mm). The drive is helical on X and Y with a ball screw on Z.
02
Five models: 103 at 50 x 100 in (127 x 254 cm), 204 at 60 x 120 in (152 x 305 cm), 205 at 60 x 144 in (152 x 366 cm), 304 at 80 x 120 in (203 x 305 cm) and 305 at 80 x 144 in (203 x 366 cm). All of them share the 6 in (152 mm) gantry height.
03
The spindles sit under optional features. MultiCam lists 10 HP collet spindles and a 10 HP and 13.4 HP ATC spindle. The ATC spindle is the one that works with the linear automatic spindle tool changer, which is also optional, so decide early whether jobs need more than one cutter per sheet.
04
MultiCam says the STRATA One combines the Pegasus platform and Coreo software to simplify machine operation, with streamlined workflows, enhanced diagnostics, greater visibility and detailed reporting. The operator interface is still MultiCam EZ Control. These are the maker's descriptions; no figures are published for them.
05
Yes, as options. The list includes a 2 mm / 5 mm electric oscillating knife, a quick change knife and a linear automatic knife tool changer. For printed work there is the MultiVision digital registration system, and for non-ferrous metals a coolant mist system.
