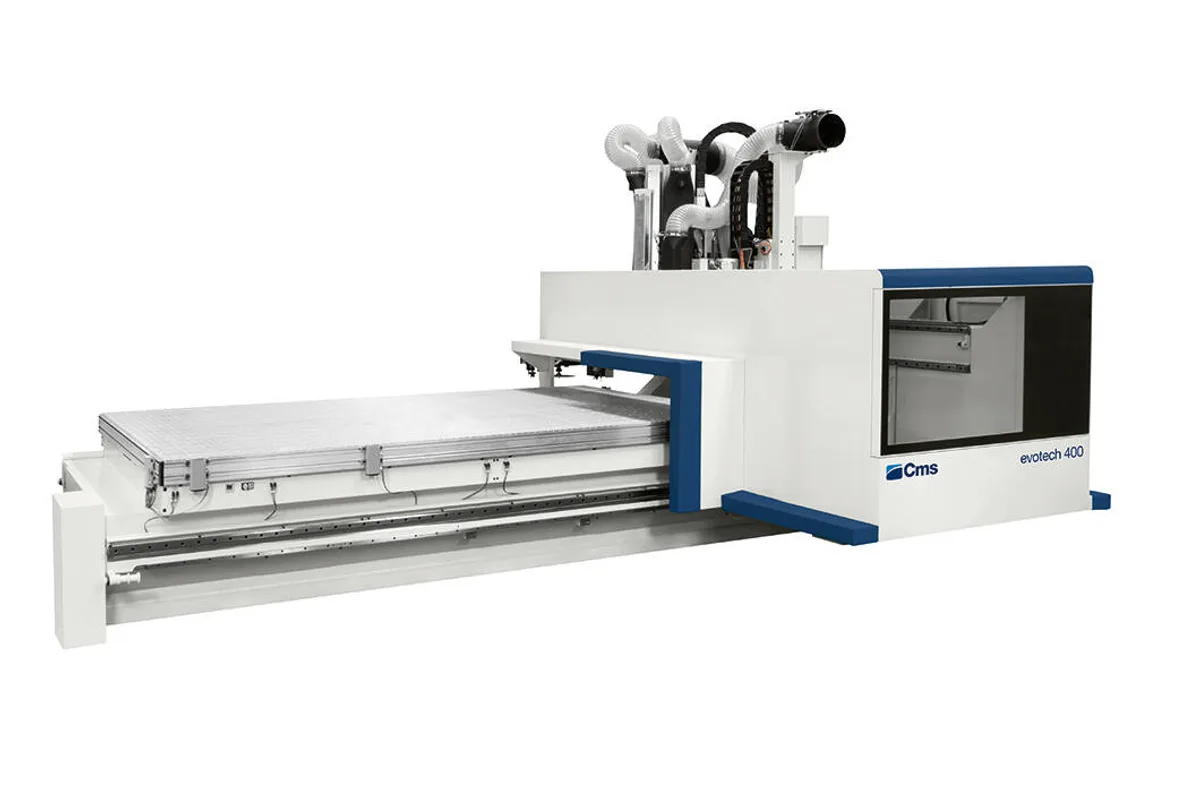

CMS Evotech

Specs verified 2026-10-05 · cms.it Updated 2026-10-05

Image: cms.it, CMS

Key Specifications

models

EVOTECH 250, EVOTECH 400, EVOTECH 500

axis speed pro speed

60-60-30 m/min (EVOTECH 250); 90-90-30 m/min (EVOTECH 400); 95-90-30 m/min (EVOTECH 500) (X-Y-Z axes max. speed, PRO SPEED version)

axis speed pro space

25-60-30 m/min (EVOTECH 250); 25-90-30 m/min (EVOTECH 400, EVOTECH 500) (X-Y-Z axes max. speed, PRO SPACE version)

z axis workpiece passage max

250 mm (9.8 in) (EVOTECH 250); 350 mm (13.8 in) (EVOTECH 400); 500 mm (19.7 in) (EVOTECH 500)

axes electrospindle power max

12 kW (16.1 hp) (EVOTECH 250); 17 kW (22.8 hp) (EVOTECH 400, EVOTECH 500)

electrospindle power 3 4 axes

15 kW (20.1 hp) (EVOTECH 250, EVOTECH 400)

How much does the CMS Evotech cost?

Price estimate

Uncertain

We do not have a price for the CMS Evotech that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The CMS Evotech is a family of three mobile-gantry machining centres for plastics and advanced materials, sold as EVOTECH 250, EVOTECH 400 and EVOTECH 500. The number is the maximum Z axis work-piece passage: 250 mm (9.8 in), 350 mm (13.8 in) and 500 mm (19.7 in).

Speed rises with the model. In the PRO SPEED version the X-Y-Z axes reach 60-60-30 m/min on the EVOTECH 250, 90-90-30 m/min on the EVOTECH 400 and 95-90-30 m/min on the EVOTECH 500. The PRO SPACE version holds X to 25 m/min on all three, so the gap between the two versions is widest on the largest machine.

The spindle line-up changes too. CMS lists a main electrospindle of 12 kW (16.1 hp) on the EVOTECH 250 and 17 kW (22.8 hp) on the two larger models, and describes its PRISMA operating units as having 5 interpolating axes. A separate 3- or 4-axis electrospindle of 15 kW (20.1 hp) is offered on the EVOTECH 250 and EVOTECH 400 but not on the EVOTECH 500, which is the pure 5-axis model for tall parts.

All three work on an aluminium table with a built-in direct vacuum system and T-slots, so sheets can be nested and thermoformed or moulded parts can be clamped on fixtures. A drilling unit with up to 30 vertical and horizontal spindles is listed for the two smaller models and up to 26 for the EVOTECH 500. Tools are stored in 12 positions on the machining head plus a rear store of 32 or 48 positions. CMS's table gives no working area in X and Y, so table sizes have to be requested.

Full Specifications

Parameter	Value
Models	EVOTECH 250, EVOTECH 400, EVOTECH 500
Axis Speed Pro Speed	60-60-30 m/min (EVOTECH 250); 90-90-30 m/min (EVOTECH 400); 95-90-30 m/min (EVOTECH 500) (X-Y-Z axes max. speed, PRO SPEED version)
Axis Speed Pro Space	25-60-30 m/min (EVOTECH 250); 25-90-30 m/min (EVOTECH 400, EVOTECH 500) (X-Y-Z axes max. speed, PRO SPACE version)
Z Axis Workpiece Passage Max	250 mm (9.8 in) (EVOTECH 250); 350 mm (13.8 in) (EVOTECH 400); 500 mm (19.7 in) (EVOTECH 500)
Axes Electrospindle Power Max	12 kW (16.1 hp) (EVOTECH 250); 17 kW (22.8 hp) (EVOTECH 400, EVOTECH 500)
Electrospindle Power 3 4 Axes	15 kW (20.1 hp) (EVOTECH 250, EVOTECH 400)
Electrospindle Speed 5 Axes	24000 rpm max.
Electrospindle Speed 3 4 Axes	24000 rpm max. (EVOTECH 250, EVOTECH 400)
Drilling Unit Spindles Max	30 vertical and horizontal (EVOTECH 250, EVOTECH 400); 26 vertical and horizontal (EVOTECH 500)
Drilling Unit Rotation Speed	8000 rpm
Tool Store on Machining Head	12 positions
Rear Tool Store	32 positions (EVOTECH 250); 48 positions (EVOTECH 400, EVOTECH 500)
Side Tool Store	12 positions (EVOTECH 250, EVOTECH 400)
Front Tool Store	16 positions (EVOTECH 500)
Exhaust Air Consumption	4430 m³/h
Compressed Air Consumption	350-550 Nl/min (min.-max.)

Specifications sourced from cms.it — verified 2026-10-05

Strengths & Limitations

Strengths

Three passage heights from one family: 250 mm (9.8 in), 350 mm (13.8 in) and 500 mm (19.7 in)
Up to 95-90-30 m/min on the EVOTECH 500 in the PRO SPEED version
Main electrospindle of 17 kW (22.8 hp) on the EVOTECH 400 and EVOTECH 500
Aluminium worktable with built-in direct vacuum system and T-slots
Rear tool store with 48 positions on the two larger models

Limitations

PRO SPACE version limits X to 25 m/min on every model
The EVOTECH 500 has no 3- or 4-axis electrospindle and no side tool store in the table
No X-Y working area is listed, so table size cannot be judged from the published rows
Exhaust air consumption of 4430 m³/h has to be provided by the extraction system

Best For

Nesting and machining of technical plastic sheets Trimming of deep thermoformed parts up to 500 mm high on the EVOTECH 500 Engineering and prototype parts in resins and advanced materials

Frequently Asked Questions

01 What is the difference between the EVOTECH 250, 400 and 500?

The maximum Z axis work-piece passage is 250 mm (9.8 in), 350 mm (13.8 in) and 500 mm (19.7 in). PRO SPEED axis speeds are 60-60-30 m/min, 90-90-30 m/min and 95-90-30 m/min. The rear tool store has 32 positions on the EVOTECH 250 and 48 positions on the EVOTECH 400 and EVOTECH 500.

02 Which spindles does CMS list for the Evotech?

A main electrospindle of 12 kW (16.1 hp) on the EVOTECH 250 and 17 kW (22.8 hp) on the EVOTECH 400 and EVOTECH 500, and a 3- or 4-axis electrospindle of 15 kW (20.1 hp) on the EVOTECH 250 and EVOTECH 400. The maximum rotation speed is 24000 rpm.

03 How are workpieces held on the Evotech?

On an aluminium worktable. CMS states that the built-in direct vacuum system and the T-slots allow optimal clamping of sheets and the positioning of all types of mechanical clamping equipment.

04 What services does the machine need?

CMS lists an exhaust air consumption of 4430 m³/h and a compressed air consumption of 350-550 Nl/min (min.-max.) for all three models. Electrical data is not in the table.
