Nicolas Correa XPERTA

Specs verified 2026-10-05 · nicolascorrea.com Updated 2026-10-05

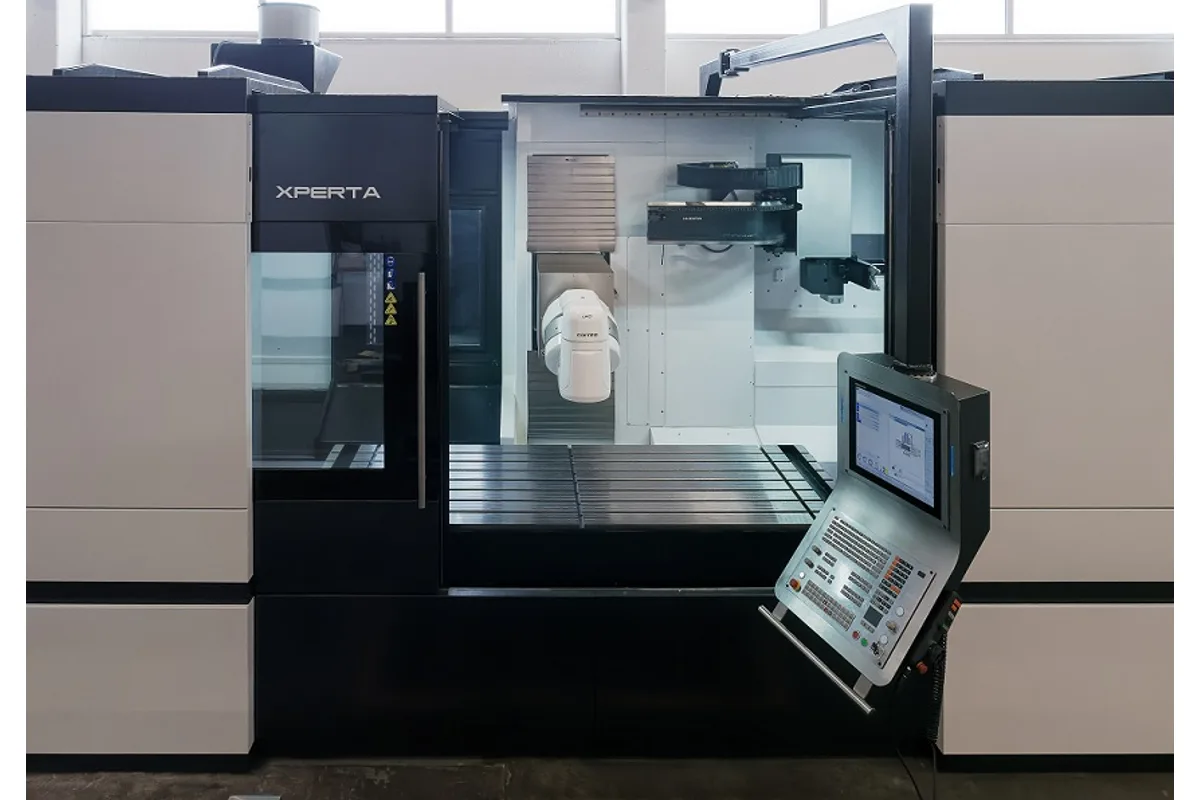

Image: nicolascorrea.com, Nicolas Correa

Key Specifications

Max Spindle

4,000 / 6,000 rpm

Spindle Taper

ISO-50

Table Size

2,300 x 1,000 / 2,800 x 1,000 / 3,800 x 1,000 / 4,800 x 1,000 mm

Spindle Power

24 kW (32.2 hp)

max table load

4,500 / 6,500 / 8,500 / 10,500 kg

x axis travel

2,000 / 2,500 / 3,500 / 4,500 mm

How much does the Nicolas Correa XPERTA cost?

Price estimate

Uncertain

We do not have a price for the Nicolas Correa XPERTA that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Nicolas Correa XPERTA is the smallest bed-type mill in the range and the only one whose table gives fixed figures for each size. There are four: X travel of 2,000 / 2,500 / 3,500 / 4,500 mm, each with 1,000 mm (39.4 in) of Y and 1,000 mm (39.4 in) of Z.

Because the sizes are fixed, the numbers can be read straight across. Table surfaces are 2,300 x 1,000, 2,800 x 1,000, 3,800 x 1,000 and 4,800 x 1,000 mm, table loads 4,500 / 6,500 / 8,500 / 10,500 kg, and machine weights 15,200 / 16,400 / 18,600 / 22,000 kg. Every table is a little longer than its X travel, and all share one width. Choosing a size is a question of part length and weight only.

One spindle is listed: an ISO-50 taper with 24 kW (32.2 hp) and 840 Nm (620 lb-ft), at 4,000 / 6,000 rpm. That is a roughing-capable 50-taper spindle without a high-speed alternative. Shops that need 10,000 rpm should look at the NORMA, which lists 4,000 / 6,000 / 10,000 rpm and more Y and Z as well.

Axis feed is 25 m/min on linear guides. The lateral ram uses the same L-shaped guide system and pulling-bar droop correction as the larger machines. Standard equipment covers the automatic universal head, a Heidenhain or Siemens control, linear scales in all axes and a perimeter fence. Tool changers for 30, 40 and 60 tools, rotary tables and integral guarding cost extra.

Full Specifications

Parameter	Value
Table Size	2,300 x 1,000 / 2,800 x 1,000 / 3,800 x 1,000 / 4,800 x 1,000 mm
Max Table Load	4,500 / 6,500 / 8,500 / 10,500 kg
X Axis Travel	2,000 / 2,500 / 3,500 / 4,500 mm
Y Axis Travel	1,000 mm (39.4 in)
Z Axis Travel	1,000 mm (39.4 in)
Max Feed X	25 m/min
Max Feed Y	25 m/min
Max Feed Z	25 m/min
Spindle Taper	ISO-50
Max Spindle Speed	4,000 / 6,000 rpm
Spindle Motor Power	24 kW (32.2 hp)
Spindle Torque	840 Nm (620 lb-ft)
Machine Weight	15,200 / 16,400 / 18,600 / 22,000 kg

Specifications sourced from nicolascorrea.com — verified 2026-10-05

Strengths & Limitations

Strengths

Four fixed sizes with stated loads: 4,500 / 6,500 / 8,500 / 10,500 kg on tables from 2,300 x 1,000 to 4,800 x 1,000 mm
ISO-50 spindle with 24 kW (32.2 hp) and 840 Nm (620 lb-ft)
Machine weight of 15,200 to 22,000 kg, published per size for foundation planning
L-shaped ram guide system with mechanical ram droop correction
Automatic universal head and linear scales in all axes as standard

Limitations

Y and Z travel are 1,000 mm (39.4 in) each, with no larger option on this model
Top spindle speed is 6,000 rpm; the NORMA lists a 10,000 rpm option
Feed is 25 m/min, against 30 m/min on the NORMA
Tool changer, rotary tables and integral guarding are optional equipment

Best For

General milling of parts up to 4,500 mm long and 10,500 kg Toolroom and jobbing work with an ISO-50 universal head Shops that want a bed mill with a published weight and footprint class Steel roughing at 840 Nm (620 lb-ft) without high-speed needs

Frequently Asked Questions

01 What sizes does the Correa XPERTA come in?

Four, named 20, 25, 35 and 45 in the maker's table. X travel is 2,000 / 2,500 / 3,500 / 4,500 mm, with table surfaces of 2,300 x 1,000, 2,800 x 1,000, 3,800 x 1,000 and 4,800 x 1,000 mm. Y and Z are 1,000 mm (39.4 in) on every size.

02 How much weight can the XPERTA table carry?

Maximum load on the table is 4,500 / 6,500 / 8,500 / 10,500 kg, rising with table length. The machine itself weighs 15,200 / 16,400 / 18,600 / 22,000 kg, so add the two figures for the size chosen when the foundation is planned.

03 What spindle does the XPERTA have?

A single ISO-50 spindle is listed, with programmable speeds of 4,000 / 6,000 rpm, 24 kW (32.2 hp) maximum power and 840 Nm (620 lb-ft) maximum torque. The automatic universal head is standard, and other heads are available as options.

04 How does the XPERTA compare with the NORMA?

Both are bed-type machines with a lateral ram. The XPERTA has 1,000 mm (39.4 in) of Y and Z and feeds at 25 m/min. The NORMA lists Y of 1,250 / 1,500 mm, Z of 1,500 / 2,000 mm and 30 m/min feeds, so it suits taller and deeper parts.
