Nicolas Correa AXIA

Est. $900,000 - $2,500,000+ Specs verified 2026-10-03 · nicolascorrea.com Updated 2026-10-03

Key Specifications

X Travel

4,000 - 25,000 mm

Y Travel

1,500 / 1,750 mm

Z Travel

2,500 / 3,000 / 4,000 mm

Max Spindle

10,000 / 6,000 / 6,000 rpm

Spindle Taper

ISO-50 Big Plus / HSK-100

Table Size

4,000 - 25,000 x 2,000 / 2,500 / 3,000 mm

How much does the Nicolas Correa AXIA cost?

Estimated price range

Est.$900,000 - $2,500,000+

Our best estimate for a cnc boring machine in this class — not a quote from Nicolas Correa. Configuration moves it a long way.

Overview

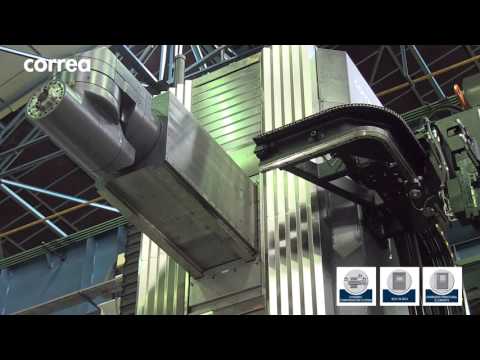

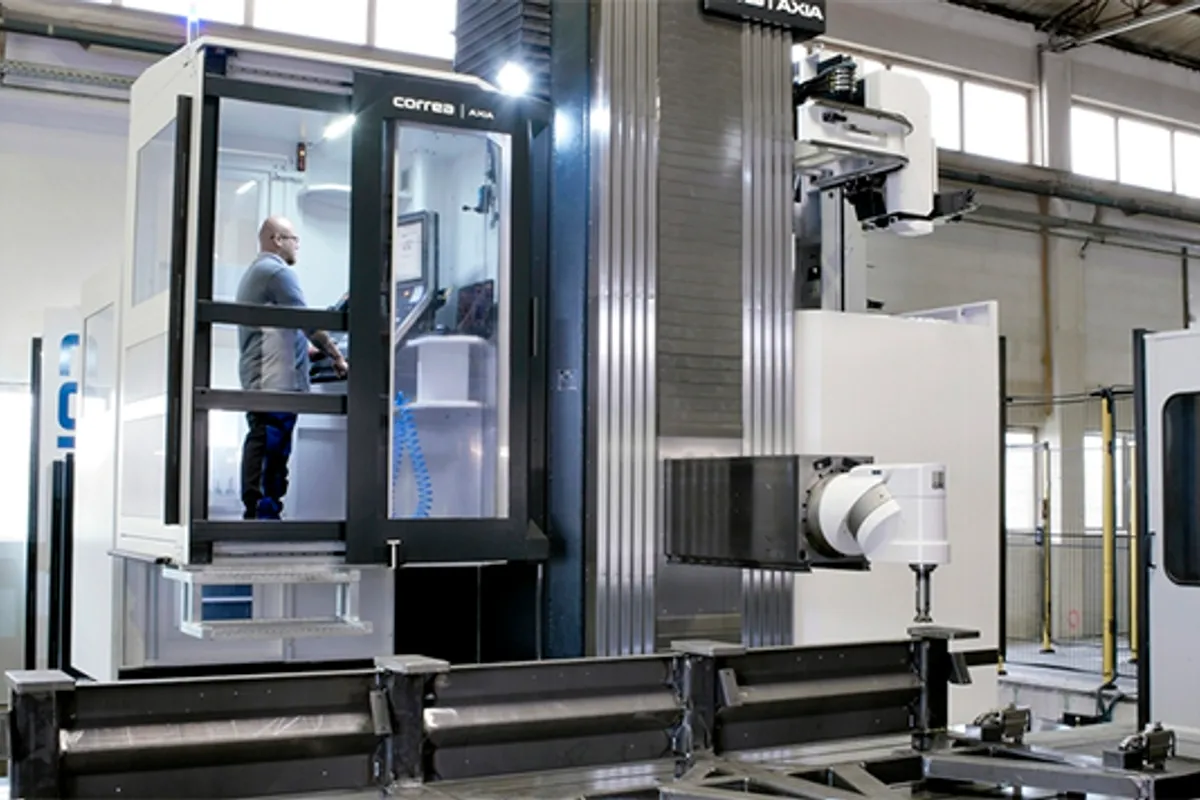

The Nicolas Correa AXIA is the long-travel machine of the range: X travel runs from 4,000 to 25,000 mm, with Y at 1,500 or 1,750 mm and Z at 2,500, 3,000 or 4,000 mm. Table sizes follow the X axis, 4,000 to 25,000 mm long by 2,000, 2,500 or 3,000 mm wide, and table load is stated per area, 10,000 or 15,000 kg/m2, the way floor plates are rated.

That envelope sets the kind of work. With Z reaching 4,000 mm and Y stopping at 1,750 mm, the machine suits tall, long workpieces worked from one side: machine frames, welded structures and large die blocks. The FOX covers the opposite shape, with Y of 3,000, 3,750 or 4,250 mm but Z of only 1,000, 1,500 or 1,750 mm and X limited to 3,000 - 8,000 mm.

Three spindle options are listed, and the speed, power and torque rows give them in the same order. The first is 10,000 rpm with 42 kW and 620 Nm, a finishing head for light alloys and semi-finishing in steel. The second is 6,000 rpm with 37 kW and 1,300 Nm. The third is 6,000 rpm with 52 kW and 1,375 Nm, the one to choose for heavy roughing with large cutters. The taper is ISO-50 Big Plus or HSK-100 in each case.

Maximum feed is 30 m/min on X, Y and Z. On a 25,000 mm bed that rate matters less for cutting than for repositioning between features at opposite ends of a part. Nicolas Correa's table gives no tool magazine, control, accuracy or machine weight figures, so those have to come from the quotation.

Full Specifications

Parameter	Value
Table Size	4,000 - 25,000 x 2,000 / 2,500 / 3,000 mm
Max Table Load	10,000 / 15,000 Kg/m2
X-Axis Travel	4,000 - 25,000 mm
Y-Axis Travel	1,500 / 1,750 mm
Z-Axis Travel	2,500 / 3,000 / 4,000 mm
Max Feed X	30 m/min
Max Feed Y	30 m/min
Max Feed Z	30 m/min
Spindle Taper	ISO-50 Big Plus / HSK-100
Max Spindle Speed	10,000 / 6,000 / 6,000 rpm
Spindle Motor Power	42 / 37 / 52 kW
Spindle Torque	620 / 1,300 / 1,375 Nm

Specifications sourced from nicolascorrea.com — verified 2026-10-03

Strengths & Limitations

Strengths

X travel from 4,000 to 25,000 mm, with tables of the same length range in 2,000, 2,500 or 3,000 mm widths
Z travel of 2,500, 3,000 or 4,000 mm for tall workpieces
Choice of three spindles: 10,000 rpm with 42 kW and 620 Nm, or 6,000 rpm with 37 kW and 1,300 Nm or 52 kW and 1,375 Nm
30 m/min maximum feed on X, Y and Z
ISO-50 Big Plus or HSK-100 spindle taper

Limitations

Y travel is 1,500 or 1,750 mm, far less than the 3,000 to 4,250 mm of the FOX, so wide parts need re-fixturing
The 10,000 rpm spindle is listed with 620 Nm, less than half the torque of either 6,000 rpm option
Table load is given per area, 10,000 or 15,000 kg/m2, so concentrated loads need checking against the footprint of the part
The table lists no tool magazine, control, accuracy or weight figures

Best For

Long structural parts and machine frames up to 25,000 mm in X Tall workpieces needing up to 4,000 mm of Z Heavy roughing with the 52 kW, 1,375 Nm spindle Finishing at up to 10,000 rpm with the 42 kW spindle

Frequently Asked Questions

01 What travels is the AXIA available with?

X travel is 4,000 to 25,000 mm. Y travel is 1,500 or 1,750 mm and Z travel is 2,500, 3,000 or 4,000 mm. Table size is 4,000 to 25,000 mm by 2,000, 2,500 or 3,000 mm. Nicolas Correa's table does not say which Y, Z and table-width combinations go together, so that is fixed at the quotation stage.

02 Which spindles can the AXIA be ordered with?

Three are listed, in the same order across the speed, power and torque rows: 10,000 rpm with 42 kW and 620 Nm; 6,000 rpm with 37 kW and 1,300 Nm; and 6,000 rpm with 52 kW and 1,375 Nm. The taper is ISO-50 Big Plus or HSK-100.

03 How much weight can the AXIA table carry?

The load is stated per unit of area: 10,000 or 15,000 kg/m2. Total capacity therefore depends on how much table the workpiece and its fixtures cover. A long, well-supported fabrication spreads its weight; a compact, dense block does not, and should be checked against the rating.

04 How does the AXIA differ from the FOX?

The AXIA is the long, tall machine: X of 4,000 to 25,000 mm and Z up to 4,000 mm, with Y of 1,500 or 1,750 mm. The FOX is listed with X of 3,000 - 8,000 mm, Y of 3,000, 3,750 or 4,250 mm and Z of 1,000, 1,500 or 1,750 mm, and its table load is a total of 15,000 - 25,000 kg instead of a load per area.

05 How fast do the AXIA axes move?

Maximum feed is 30 m/min on X, Y and Z. The table gives this one figure per axis and no separate rapid rate or acceleration figure, so ask for those if cycle time on long parts matters to the job.
