Nicolas Correa NORMA L PIT

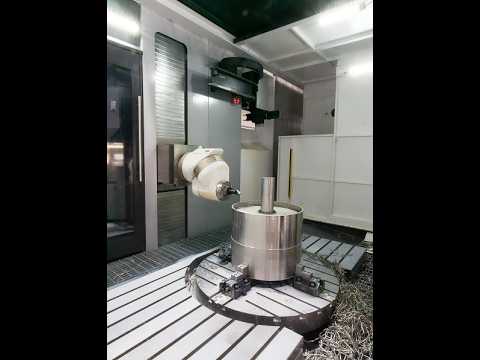

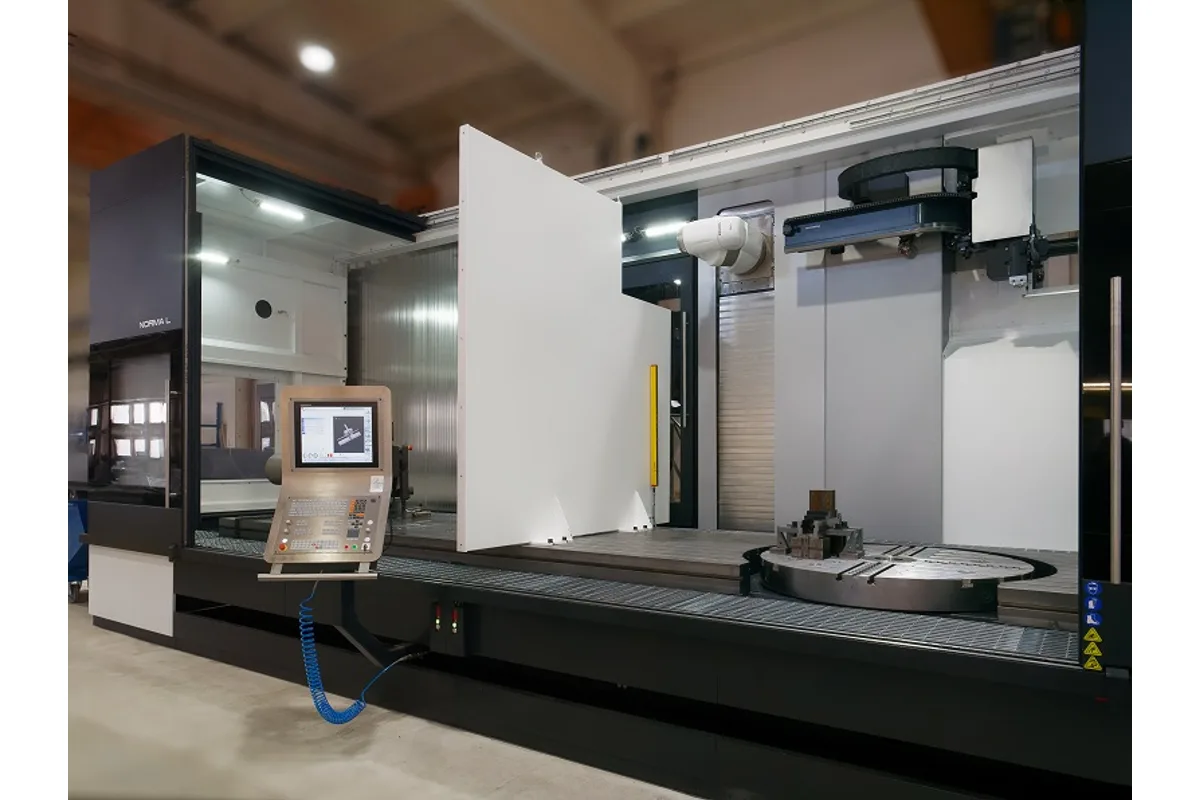

A travelling column and a small turning table make an unusual pair, and that is what the Nicolas Correa NORMA L PIT offers. The column runs 4,500 / 6,000 / 8,000 mm along X. The turning table is 1,000 / 1,250 mm in diameter and rotates at 250 rpm.

Why combine them? A long bed gives room for more than one job. A turned part can sit on the rotating table while a long plate or beam is clamped further along, and the column serves both. The table on this page says nothing about how the bed is divided, so the split between turning station and plain table is something to draw up with the maker.

Against the NORMA L, the PIT gives up length options and spindle variety. The NORMA L is listed in five X travels, 4,000 / 5,500 / 7,000 / 8,500 / 10,000 mm; here there are three. The NORMA L has three power and torque entries, 24 / 33 / 30 kW and 840 / 990 / 620 Nm, on ISO-50 Big Plus / HSK-100. The PIT keeps the two with the higher torque, 24 / 33 kW and 840 / 990 Nm, and lists a single taper: HSK-100 T. Cross travel of 1,250 / 1,500 mm and vertical travel of 1,500 / 2,000 mm carry over, as does the 30 m/min feed on each axis.

The turning table itself matches the NORMA PIT. If the work is only the turned part, that bed type machine covers it in X travels up to 4,500 mm. The L version earns its place when the same shift also has long workpieces to mill.
