Hanwha Precision Machinery Swiss-Type Lathes

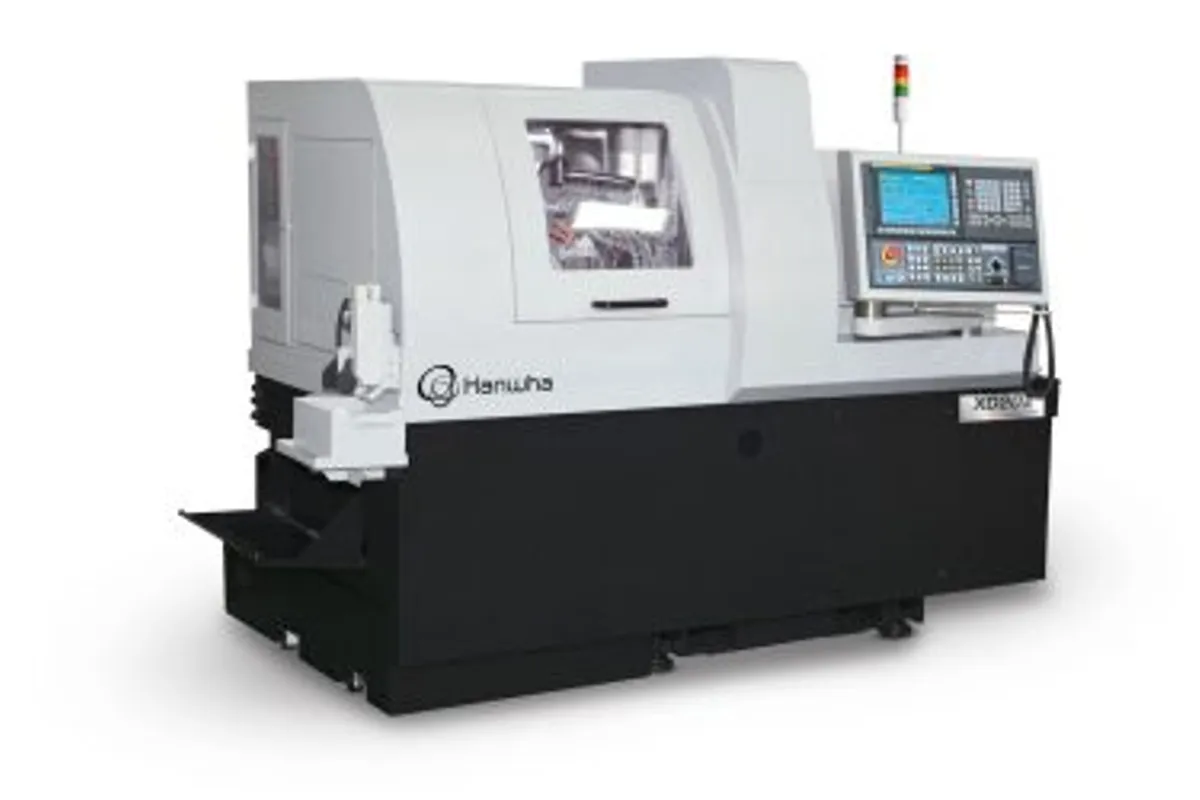

Hanwha XD26II

$150,000 - $250,000 (new) Updated 2025-03-15

Key Specifications

max bar capacity

26 mm (1.02 in)

guide bushing

Yes (removable for non-guide bushing mode)

main spindle speed

10,000 RPM

main spindle power

5.5 kW (7.4 HP)

sub spindle speed

10,000 RPM

sub spindle power

5.5 kW (7.4 HP)

Overview

The Hanwha XD26II is a Swiss-type (sliding headstock) CNC lathe designed for high-precision, high-volume production of small, slender parts. With a maximum bar capacity of 26 mm (1.02 in) and guide bushing support, it excels at parts with high length-to-diameter ratios that would deflect on conventional lathes.

The main spindle delivers up to 5.5 kW at 10,000 RPM. The sub-spindle provides backworking capability at 5.5 kW and 10,000 RPM. Both spindles include C-axis for angular positioning during cross-work and milling operations.

The XD26II features multiple tool stations including cross-working tools and back-working tools for comprehensive done-in-one machining. Driven (live) tool positions enable milling, drilling, and tapping operations. Gang-type and turret-type tool configurations are available.

Hanwha's Fanuc-based control handles multi-axis synchronized operations. The machine can operate with or without the guide bushing for maximum versatility -- removing the guide bushing converts it to a conventional fixed-headstock lathe for shorter parts.

New Hanwha XD26II machines price $150,000-$250,000, positioning it competitively against Citizen Cincom, Star, and Tsugami Swiss machines. Hanwha (formerly Samsung) offers strong value with Korean manufacturing quality at prices 15-25% below Japanese competitors.

Full Specifications

Parameter	Value
Max Bar Capacity	26 mm (1.02 in)
Guide Bushing	Yes (removable for non-guide bushing mode)
Main Spindle Speed	10,000 RPM
Main Spindle Power	5.5 kW (7.4 HP)
Sub Spindle Speed	10,000 RPM
Sub Spindle Power	5.5 kW (7.4 HP)
C Axis	Both spindles
Live Tooling	Yes, multiple driven positions
Cross Working Tools	Yes
Back Working Tools	Yes
CNC Control	Fanuc-based
Machine Type	Swiss-type (sliding headstock)
What Industries Are You Interested Inmultiple Selections Are Possible	AllEnergy & Ocean SolutionsAerospace & Defense, MechatronicsFinanceRetail & Services
Job Level	OwnerPartnerCXOVice presidentDirectorManagerSenior individual contributorEntry-level employeeTraineeUnpaid volunteer/internOther
Name	* Please enter your name.

Specifications sourced from machinetools.com — verified 2026-03-28

Strengths & Limitations

Strengths

Guide bushing supports slender parts for chatter-free machining at high L/D ratios
Removable guide bushing converts to fixed-headstock mode for shorter parts -- versatile configuration
10,000 RPM main and sub-spindles deliver high surface speeds for small parts
Competitive pricing 15-25% below Japanese Swiss-type competitors
Complete done-in-one machining with cross-work and back-work capability
Dual C-axis enables complex milling and angular features on both spindles

Limitations

26 mm bar capacity strictly limits to small-diameter parts only
5.5 kW spindle power is adequate for small parts but limited for aggressive cutting on harder materials
Hanwha has a smaller service network and brand recognition in North America vs Citizen or Star
Guide bushing mode requires ground bar stock for optimal results, adding material cost
Programming Swiss-type machines requires specialized knowledge vs conventional lathes

Best For

Medical device manufacturers producing bone screws, dental implants, and surgical instrument components Watchmaking and micro-mechanical precision component production Electronics manufacturers making connector pins, contacts, and small precision parts Automotive fuel system components, sensors, and micro-hydraulic fittings Shops entering Swiss-type machining at a lower price point than Japanese brands Production environments running high-volume small parts under 26 mm diameter

Frequently Asked Questions

01 What does it cost?

$150,000-$250,000 new, depending on configuration and tooling. Positioned 15-25% below equivalent Citizen and Star machines. Used machines $80,000-$150,000.

02 What is Swiss-type machining?

The headstock slides along the Z-axis, feeding bar stock through a guide bushing that supports the material close to the cutting point. This eliminates deflection on long slender parts, enabling tight tolerances on parts with high length-to-diameter ratios.

03 Can it run without the guide bushing?

Yes. The XD26II can operate in non-guide bushing mode as a conventional fixed-headstock lathe for shorter parts where guide bushing support is unnecessary. This eliminates the need for ground bar stock.

04 vs Citizen Cincom L20?

Both are 20mm-class Swiss machines. Citizen has a more established reputation and larger service network. Hanwha offers comparable capability at a lower price point. Citizen's LFV (low frequency vibration) chip breaking is a unique advantage.

05 Does it need ground bar stock?

In guide bushing mode, ground bar stock is recommended for optimal surface finish and guide bushing life. In non-guide bushing mode, standard drawn bar works fine.
