Hyundai WIA Horizontal Machining Centers (HMC)

Hyundai WIA HS4000/5000 II

Est. $170,000 - $300,000 Specs verified 2026-10-03 · wiamachine.com Updated 2026-10-03

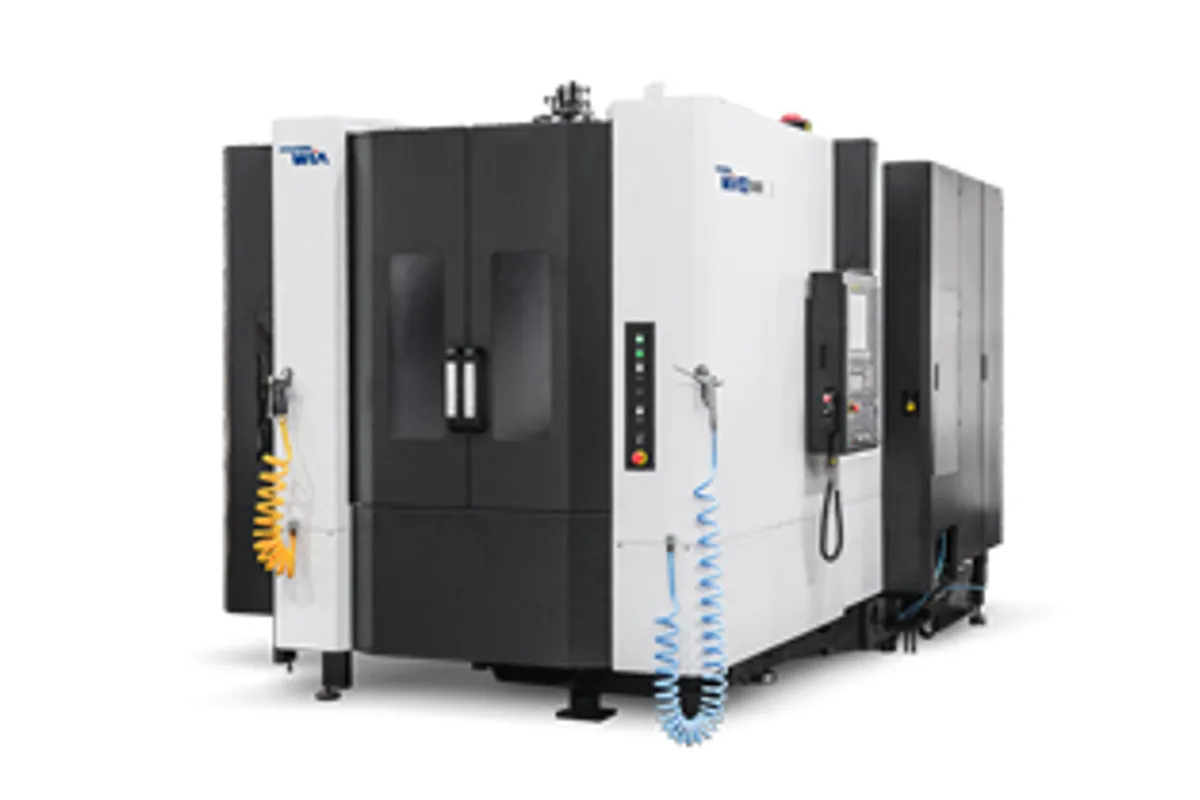

Image: wiamachine.com, Hyundai WIA

Key Specifications

Tool Capacity

HS4000 II: 40 [60, 90, 120]; HS5000 II: 40 [60,90,120]

Spindle Power

30 / 18.5 kW

hs4000 ii travel

560 x 640 x 660 mm

hs5000 ii travel

730 x 730 x 880 mm

hs5000 50 ii travel

800 x 800 x 880 mm

spindle speed bbt40

15,000 RPM

How much does the Hyundai WIA HS4000/5000 II cost?

Estimated price range

Est.$170,000 - $300,000

Our best estimate for a horizontal machining centers (hmc) in this class — not a quote from Hyundai WIA. Configuration moves it a long way.

Overview

The Hyundai WIA HS4000/5000 II covers two twin-pallet horizontal machining centers that share a 60 / 60 / 60 m/min rapid rate: the HS4000 II on 400 x 400 mm pallets and the HS5000 II on 500 x 500 mm pallets. The spindle in the main rows is a BBT40 unit at 15,000 RPM, 30 / 18.5 kW and 230 / 119 Nm.

Travels are 560 / 640 / 660 mm on the HS4000 II and 730 / 730 / 880 mm on the HS5000 II. On the smaller machine Y is longer than X, which suits a tall tombstone on a 400 mm pallet better than a wide plate. Each machine has two pallets and the load per pallet is modest: 400 kg on the HS4000 II and 500 kg on the HS5000 II, fixture included. That limit, the 15,000 RPM spindle and the 60 m/min rapids all point the same way, toward aluminium and light castings machined in volume.

The table also carries a BBT50 line: 10,000 RPM, 45/25 kW and 623/305 Nm, about 2.7 times the BBT40 torque. A separate travel row for an HS5000/50 II gives 800 x 800 x 880 mm. The rows do not tie the BBT50 spindle to a model in so many words, and the tool shank row reads BBT40, so have a BBT50 quotation state which machine and which travels it refers to.

Tool capacity is 40, with 60, 90 and 120 shown in brackets as the larger magazines. For heavier parts the HS6300/8000 II starts at 630 x 630 mm pallets and 1,500 kg.

Full Specifications

Parameter	Value
Hs4000 Ii Travel	560 x 640 x 660 mm
Hs5000 Ii Travel	730 x 730 x 880 mm
Hs5000 50 Ii Travel	800 x 800 x 880 mm
Spindle Speed Bbt40	15,000 RPM
Spindle Speed Bbt50	10,000 RPM
Spindle Power Bbt40	30/18.5 kW
Spindle Power Bbt50	45/25 kW
Spindle Torque Bbt40	230/119 Nm
Spindle Torque Bbt50	623/305 Nm
Pallet Size Hs4000	400 x 400 mm (2)
Pallet Size Hs5000	500 x 500 mm (2)
Tool Capacity	HS4000 II: 40 [60, 90, 120]; HS5000 II: 40 [60,90,120]
Max Table Load	HS4000 II: 2 - 400 kg; HS5000 II: 2 - 500 kg
Pallet Size	HS4000 II: 2 - 400 x 400 mm; HS5000 II: 2 - 500 x 500 mm
Rapid Traverse Xyz	60 / 60 / 60 m/min
Spindle Motor Power	30 / 18.5 kW
Tool Shank	BBT40
Spindle Torque	230 / 119 Nm
Travel Xyz	HS4000 II: 560 / 640 / 660 mm; HS5000 II: 730 / 730 / 880 mm
Catalogue Models	HS4000 II, HS5000 II

Specifications sourced from wiamachine.com — verified 2026-10-03

Strengths & Limitations

Strengths

60 / 60 / 60 m/min rapid traverse on both models
15,000 RPM BBT40 spindle with 30 / 18.5 kW and 230 / 119 Nm
Two pallets on each machine, 400 x 400 mm or 500 x 500 mm
Magazine of 40 tools with 60, 90 and 120 listed as larger sizes
A BBT50 spindle line at 10,000 RPM with 45/25 kW and 623/305 Nm is listed alongside the BBT40

Limitations

Pallet load is 400 kg on the HS4000 II and 500 kg on the HS5000 II, which has to cover fixture and parts
BBT40 torque of 230 / 119 Nm limits heavy roughing in steel
The table does not state plainly which model the BBT50 figures and the 800 x 800 x 880 mm travel row belong to
No machine weight, control or accuracy figures are listed

Best For

Aluminium housings and brackets on tombstones Volume production with two pallets and 60 m/min rapids Small prismatic parts within 560 / 640 / 660 mm on the HS4000 II Mid-size castings within 730 / 730 / 880 mm on the HS5000 II Long unattended runs using a 90 or 120 tool magazine

Frequently Asked Questions

01 What is the difference between the HS4000 II and the HS5000 II?

Pallet, load and travel. The HS4000 II has two 400 x 400 mm pallets at 400 kg each and travels of 560 / 640 / 660 mm. The HS5000 II has two 500 x 500 mm pallets at 500 kg each and travels of 730 / 730 / 880 mm. Rapids are 60 / 60 / 60 m/min and the standard magazine is 40 tools on both.

02 Which spindles are listed for the HS4000/5000 II?

Two. The BBT40 spindle runs to 15,000 RPM with 30/18.5 kW and 230/119 Nm. The BBT50 spindle runs to 10,000 RPM with 45/25 kW and 623/305 Nm. The tool shank row of the table reads BBT40, so treat that as the base machine and confirm BBT50 availability for the model you want.

03 How many tools can the HS4000/5000 II hold?

40 tools on either model, with 60, 90 and 120 given in brackets in WIA's table. The larger magazines matter on a twin-pallet machine, where two different jobs may sit on the two pallets and need their tools loaded at once.

04 How heavy a part can go on the pallet?

400 kg per pallet on the HS4000 II and 500 kg per pallet on the HS5000 II. A tombstone and its clamps count against that figure, so the weight left for parts is smaller. For more, the HS6300/8000 II lists 1,500 kg and 2,000 kg per pallet.
