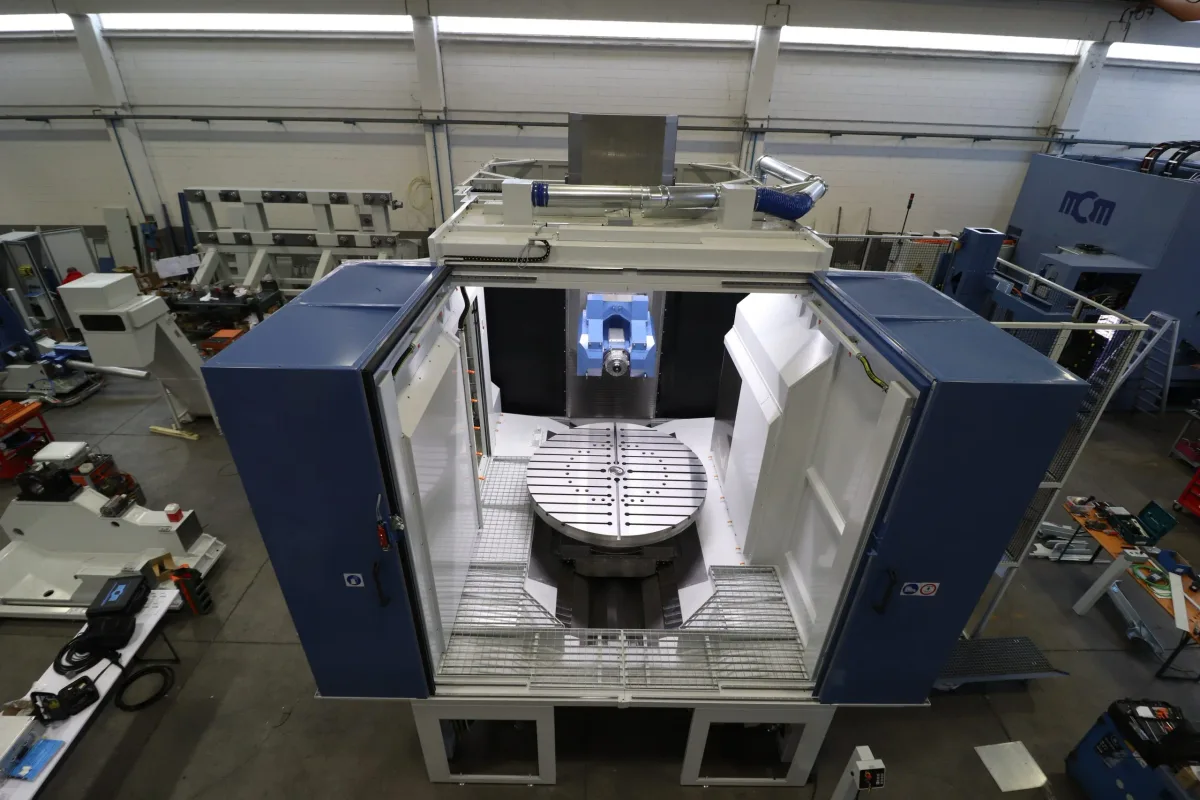

MCM TANK.G 2600
Image: mcm-group.com, MCM
Key Specifications
Spindle Taper
Tool Capacity
axes configuration
process technology
x axis travel
y axis travel
How much does the MCM TANK.G 2600 cost?
Price estimate
We do not have a price for the MCM TANK.G 2600 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 2,600 mm (102.4 in) of X travel, the MCM TANK.G 2600 is the medium-large machine of the TANK.G line, one size below the top. It is a horizontal machining center offered in 4-Axes, 5-Axes and 5-Axes Multitasking configurations.
The long axis is the whole story. Y and Z are the figures of the TANK.G 2000: on that machine and this one, Z is 2,000 mm (78.7 in) and Y is 2,000 mm (78.7 in) for the 4-Axes version or 1,700 mm (66.9 in) with a tilting head. The pallets match too. So the extra X stroke is for long workpieces, for two fixtures side by side, or simply for letting the spindle clear a wide part at both ends.
MCM's table has one detail worth a question. Rapid feed is 40 m/min (1,574.8 ipm) for the 4-Axes and 5-Axes versions but 45 m/min (1,771.7 ipm) for the Multitasking version. No reason is given for the faster figure on the machine that also turns, so ask MCM to confirm it for your order.
Milling pallets are 1,000 x 1,000 mm (39.3 x 39.3 in) or 1,250 x 1,250 mm (49.2 x 49.2 in) on a 20 min-1 B-axis. The Multitasking table lists Ø 1,000 mm (Ø 39.3 in) or Ø 1,250 mm (Ø 49.2 in) pallets at 200 min-1. The tilting head covers 175 degrees (+80/-95), tapers are HSK, ISO or CAPTO, and the magazine capacity is printed as "up to 80 (999)".
Full Specifications
| Parameter | Value |
|---|---|
| Axes Configuration | 4-Axes / 5-Axes / 5-Axes Multitasking |
| Process Technology | 5-Axes: Milling; 5-Axes Multitasking: Milling, Turning, Grinding |
| X Axis Travel | 2,600 mm (102.4 in) |
| Y Axis Travel | 4-Axes: 2,000 mm (78.7 in); 5-Axes, 5-Axes Multitasking: 1,700 mm (66.9 in) |
| Z Axis Travel | 2,000 mm (78.7 in) |
| Rapid Traverse Xyz | 4-Axes, 5-Axes: 40 m/min (1,574.8 ipm); 5-Axes Multitasking: 45 m/min (1,771.7 ipm) |
| Pallet Size | 4-Axes, 5-Axes: 1,000 x 1,000 mm (39.3 x 39.3 in); 5-Axes Multitasking: Ø 1,000 mm (Ø 39.3 in) |
| Pallet Size Option 2 | 4-Axes, 5-Axes: 1,250 x 1,250 mm (49.2 x 49.2 in); 5-Axes Multitasking: Ø 1,250 mm (Ø 49.2 in) |
| B Axis Max Rotation Speed | 4-Axes, 5-Axes: 20 min-1; 5-Axes Multitasking: 200 min-1 |
| Fifth Axis Type | 5-Axes, 5-Axes Multitasking: Tilting Head |
| Tilting Angle | 5-Axes, 5-Axes Multitasking: 175 (+80/-95) degrees |
| Spindle Taper | HSK / ISO / CAPTO |
| Tool Capacity | up to 80 (999) |
| Available Configurations | Single-Pallet / Twin-Pallet / Multi-Pallet / FMS |
Specifications sourced from mcm-group.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 2,600 mm (102.4 in) of X travel with 2,000 mm (78.7 in) of Z
- 4-Axes version offers 2,000 mm (78.7 in) of Y
- Tilting head with 175 degrees of travel (+80/-95) on both 5-axis versions
- Multitasking version is listed at 45 m/min (1,771.7 ipm) rapid feed and a 200 min-1 table
- Works with Single-Pallet, Twin-Pallet, Multi-Pallet and FMS layouts
Limitations
- 4-Axes and 5-Axes versions are listed at 40 m/min (1,574.8 ipm), slower than the 45 m/min (1,771.7 ipm) of the TANK.G 2000
- The largest pallet in the table is 1,250 x 1,250 mm (49.2 x 49.2 in), small against a 2,600 mm (102.4 in) X stroke
- Y drops to 1,700 mm (66.9 in) on the 5-axis versions
- MCM's own text on the page names pallet diameters that differ from the table, so pallet options need confirming
Best For
Frequently Asked Questions
01
X travel: 2,600 mm (102.4 in) against the 2,000 mm (78.7 in) of the TANK.G 2000. Y, Z, pallets, table speeds and the tilting head carry the same figures on both machines. The 4-Axes and 5-Axes versions of this machine have a lower rapid feed, 40 m/min (1,574.8 ipm).
02
Z is 2,000 mm (78.7 in) in every configuration. Y is 2,000 mm (78.7 in) on the 4-Axes version and 1,700 mm (66.9 in) on the 5-Axes and 5-Axes Multitasking versions, which carry the tilting head.
03
The table lists 1,000 x 1,000 mm (39.3 x 39.3 in) and 1,250 x 1,250 mm (49.2 x 49.2 in) for the milling versions, and Ø 1,000 mm (Ø 39.3 in) and Ø 1,250 mm (Ø 49.2 in) for the Multitasking version. The introduction on MCM's page names different round sizes from its own table, so get the pallet list in writing.
04
MCM does not say. The table gives 45 m/min (1,771.7 ipm) for the 5-Axes Multitasking version and 40 m/min (1,574.8 ipm) for the 4-Axes and 5-Axes versions, with no note. The neighbouring sizes list one rapid figure for all versions, so treat the difference as something to confirm.
More from MCM
Other Horizontal Machining Centers (HMC)
Niigata HN100D-II FC
Okuma MA-600HII
Enshu GE480H
SW BA W06-32

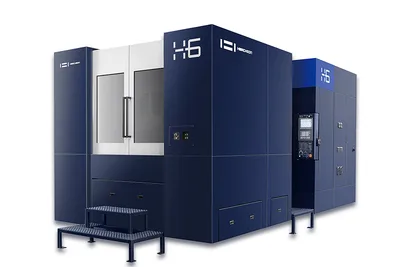

Hwacheon H6
