Machitech Maverick MV 6x12

Q: How much does the Machitech Maverick MV 6x12 cost?

The price estimate for the Machitech Maverick MV 6x12 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/machitech-maverick-mv-6x12#price; the request is passed to Machitech Automation or an authorised dealer.

Specs verified 2026-10-05 · machitech.com Updated 2026-10-05

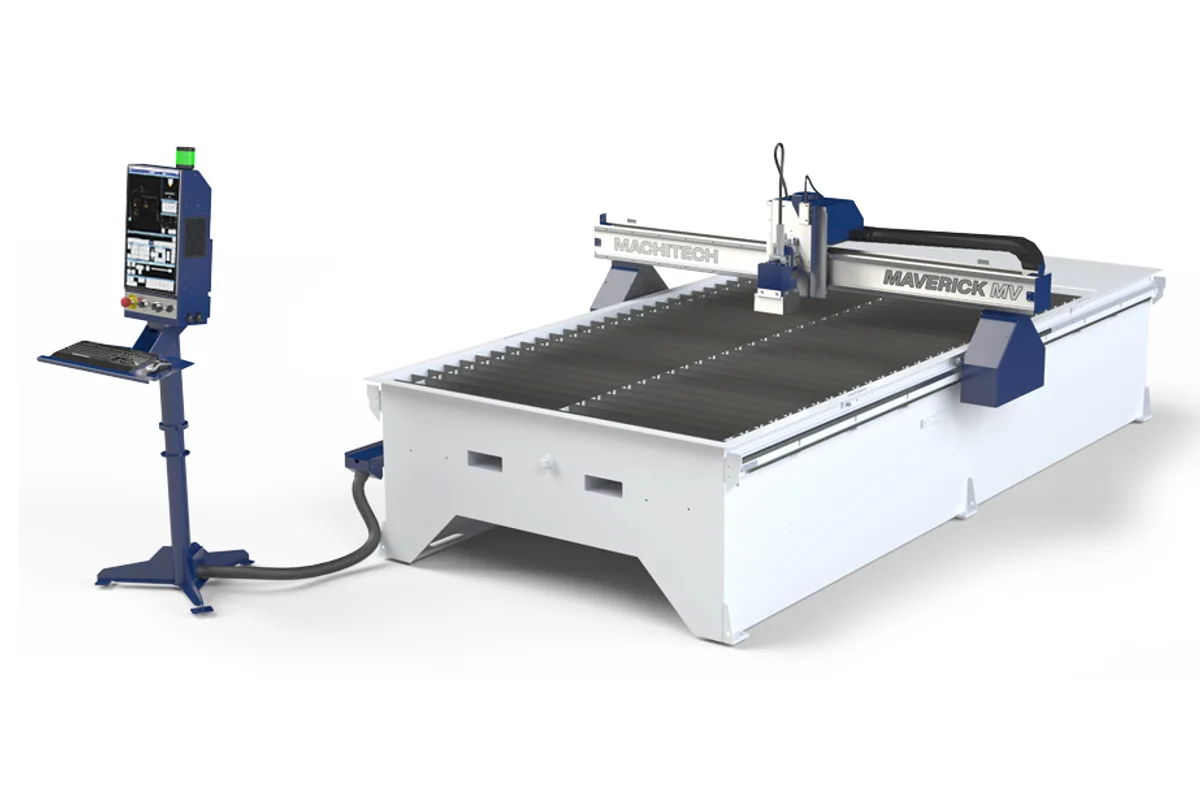

Machitech Maverick MV series CNC plasma table

Image: machitech.com, Machitech Automation

Key Specifications

Rapid Traverse

1,200 ipm (30,480 mm/min)

Accuracy

0.004 in (0.1 mm)

Repeatability

0.002 in (0.05 mm)

processing range

78 in - 150 in (1,980 - 3,810 mm)

table type

Water or downdraft

plasma amperage

45 to 125A, 200A

How much does the Machitech Maverick MV 6x12 cost?

Price estimate

Uncertain

We do not have a price for the Machitech Maverick MV 6x12 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Machitech Maverick MV 6x12 is the largest Maverick and the only one wider than the base frame. Machitech prints its processing range as 78 in - 150 in (1,980 - 3,810 mm), and the machine grows to 115 in (2,921 mm) wide and 187 in (4,749 mm) long.

The extra width is the point. Plate wider than the smaller tables accept fits here, and so do wide single parts such as trailer panels and tank heads that would otherwise be cut in two and welded. Workpiece weight rises to 4,410 lbs (2,000 kg), the highest of the three sizes.

Nothing else about the machine is scaled up, and a buyer should weigh that. The gantry is the same machined aluminum section spanning a wider bed, with the same Nema 34 motors on each side. Machitech states the same figures for all three sizes: 800 ipm (20,320 mm/min) cutting speed, 1,200 ipm (30,480 mm/min) rapid traverse, 0.004 in (0.1 mm) positional accuracy and 0.002 in (0.05 mm) repeatability. Maximum plate thickness stays at 1.5 in (38 mm) and Z-axis clearance at 5.5 in (140 mm).

At 2,500 lbs (1,130 kg) without the plasma source, it is still a light machine for its bed. Pipe cutting for 1.6 to 8 in diameter is optional, along with manual bevel, pneumatic scribing and oxyfuel. The bed serves as water or downdraft table. Shops that need this format with high-definition plasma can look at the Silver Cut 6x12, whose range Machitech gives in the same figures.

Full Specifications

Parameter	Value
Processing Range	78 in - 150 in (1,980 - 3,810 mm)
Table Type	Water or downdraft
Plasma Amperage	45 to 125A, 200A
Max Plate Thickness	1.5 in (38 mm)
Z Axis Clearance	5.5 in (140 mm)
Max Cutting Speed	800 ipm (20,320 mm/min)
Rapid Traverse Rate	1,200 ipm (30,480 mm/min)
Positioning Accuracy	0.004 in (0.1 mm)
Repeatability	0.002 in (0.05 mm)
Workpiece Weight	4,410 lbs (2,000 kg)
CNC Control	Machitech NX4 CNC
Laser Positioning	Included
Manual Bevel	Optional
Pneumatic Scribing	Optional
Oxyfuel Cutting	Optional, choice of fuel
Pipe Cutting	Optional, 1.6 to 8 in diameter
Machine Width	115 in (2,921 mm)
Machine Length	187 in (4,749 mm)
Machine Height	53 in (1,346 mm)
Machine Weight	2,500 lbs (1,130 kg), without plasma source or options
Install and Training	Included, on-site
Remote Support	Included, unlimited

Specifications sourced from machitech.com — verified 2026-10-05

Strengths & Limitations

Strengths

Widest Maverick: 115 in (2,921 mm) machine width for wider plate
Highest workpiece weight of the line, 4,410 lbs (2,000 kg)
Keeps the 1,200 ipm (30,480 mm/min) rapid traverse of the smaller sizes
Optional pipe cutting, scribing and oxyfuel
Weighs 2,500 lbs (1,130 kg) before the plasma source

Limitations

Same aluminum gantry and Nema 34 motors as the smaller tables, on a wider span
Maximum plate thickness remains 1.5 in (38 mm)
Needs 187 in (4,749 mm) of length
No larger Maverick exists; longer beds start with the Silver Cut

Best For

Wide plate and wide single parts Trailer, tank and agricultural fabrication with air plasma Shops outgrowing a 5x10 table Mixed sheet sizes on one bed

Frequently Asked Questions

01 What is the processing range of the Maverick MV 6x12?

Machitech's table prints it as 78 in - 150 in (1,980 - 3,810 mm). The table is rated for a workpiece weight of 4,410 lbs (2,000 kg), and maximum plate thickness is 1.5 in (38 mm).

02 Is the 6x12 slower than the smaller Mavericks?

Not according to the table. All three sizes are listed at 800 ipm (20,320 mm/min) maximum cutting speed and 1,200 ipm (30,480 mm/min) maximum rapid traverse, with 0.004 in (0.1 mm) positional accuracy.

03 What are the machine dimensions and weight?

Total width is 115 in (2,921 mm), total length 187 in (4,749 mm) and total height 53 in (1,346 mm). The machine weighs 2,500 lbs (1,130 kg) with standard equipment, without the plasma source or options.

04 Which options can be added?

Manual bevel, pneumatic scribing, oxyfuel cutting with a choice of fuel, and pipe cutting for 1.6 to 8 in diameter. On-site installation and training and unlimited remote support are included.
