Machitech Silver Cut 5x10

Q: How much does the Machitech Silver Cut 5x10 cost?

The price estimate for the Machitech Silver Cut 5x10 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/machitech-silver-cut-5x10#price; the request is passed to Machitech Automation or an authorised dealer.

Specs verified 2026-10-05 · machitech.com Updated 2026-10-05

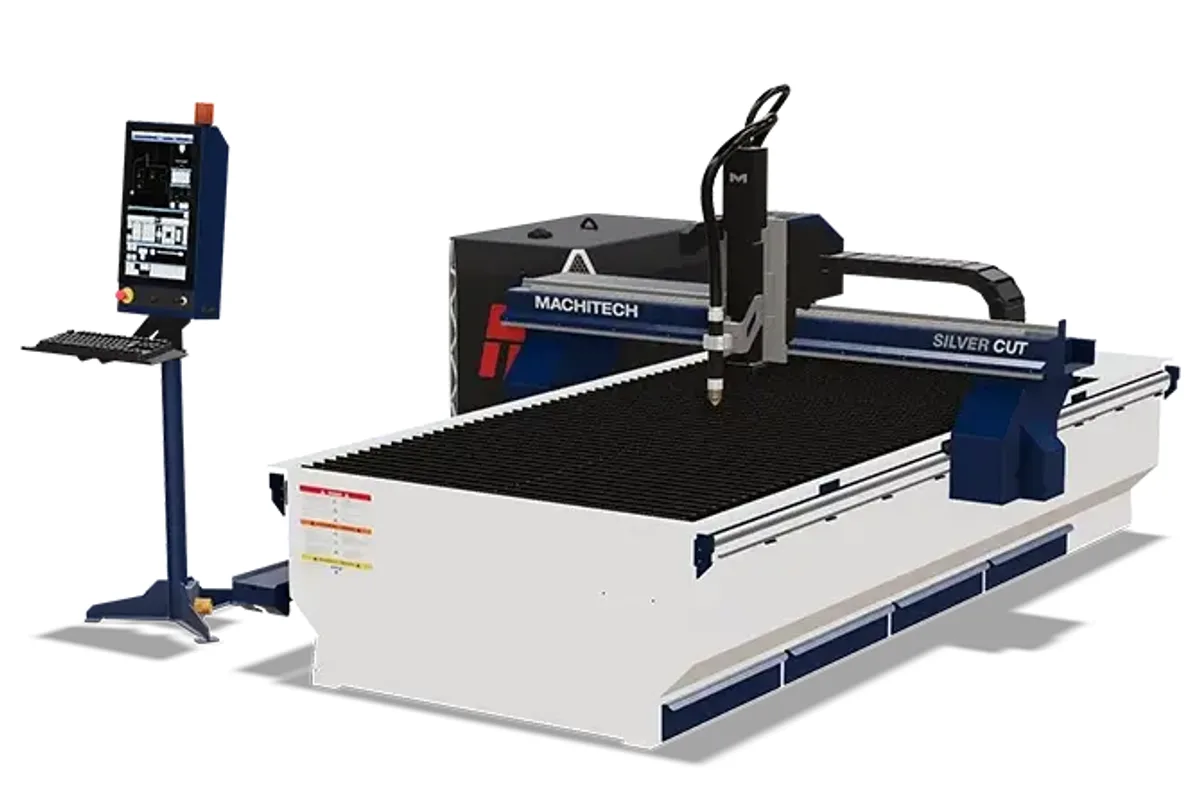

Machitech Silver Cut series CNC plasma table

Image: machitech.com, Machitech Automation

Key Specifications

Rapid Traverse

1,000 ipm (25,400 mm/min)

Accuracy

0.003 in (0.07 mm)

Repeatability

0.002 in (0.05 mm)

processing range

66 x 126 in (1,676 x 3,200 mm)

table type

Water or downdraft

plasma amperage

170A, 200A, 45-125A

How much does the Machitech Silver Cut 5x10 cost?

Price estimate

Uncertain

We do not have a price for the Machitech Silver Cut 5x10 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Machitech Silver Cut 5x10 is the base size of Machitech's compact high-definition plasma line. Its processing range is 66 x 126 in (1,676 x 3,200 mm), and it is built around the Hypertherm XPR170 CorePlus, with the Maxpro200 and Powermax as alternatives; the table lists 170A, 200A, 45-125A.

High definition changes what the motion system has to do. Hole quality and edge squareness depend on the torch holding speed through small radii, so the Silver Cut uses servo motors on all axes and a 6"x6" steel gantry, where the entry-level Maverick MV has an aluminum gantry. Positional accuracy is 0.003 in (0.07 mm) and repeatability 0.002 in (0.05 mm). Maximum cutting speed is 600 ipm (15,240 mm/min) and rapid traverse 1,000 ipm (25,400 mm/min).

This size can be ordered as a water table or a downdraft table. The choice affects daily work: the downdraft version has drawers for parts and slag, the water table has removable pans. Only the two shorter Silver Cut sizes offer water; the two longer beds are downdraft only.

The machine is 95 in (2,416 mm) wide and 167 in (4,232 mm) long, and at 3,140 lbs (1,424 kg) it is a good deal heavier than the Maverick MV 5x10, which weighs 2,100 lbs (950 kg). Workpiece weight is 3,060 lbs (1,388 kg), plate thickness up to 1.5 in (38 mm), and Z-axis clearance 7.5 in (190 mm). Pipe cutting for 1.6 to 8 in diameter, manual bevel, pneumatic scribing and oxyfuel are options. ProNest LT comes with the machine, and ProNest 2025 is the optional upgrade.

Full Specifications

Parameter	Value
Processing Range	66 x 126 in (1,676 x 3,200 mm)
Table Type	Water or downdraft
Plasma Amperage	170A, 200A, 45-125A
Max Plate Thickness	1.5 in (38 mm)
Z Axis Clearance	7.5 in (190 mm)
Max Cutting Speed	600 ipm (15,240 mm/min)
Rapid Traverse Rate	1,000 ipm (25,400 mm/min)
Positioning Accuracy	0.003 in (0.07 mm)
Repeatability	0.002 in (0.05 mm)
Workpiece Weight	3,060 lbs (1,388 kg)
CNC Control	Machitech NX4 CNC
Laser Positioning	Included
Manual Bevel	Optional
Pneumatic Scribing	Optional
Oxyfuel Cutting	Optional, choice of fuel
Pipe Cutting	Optional, 1.6 to 8 in diameter
Machine Width	95 in (2,416 mm)
Machine Length	167 in (4,232 mm)
Machine Height	72 in (1,816 mm)
Machine Weight	3,140 lbs (1,424 kg), without plasma source or options
Install and Training	Included, on-site
Remote Support	Included, unlimited

Specifications sourced from machitech.com — verified 2026-10-05

Strengths & Limitations

Strengths

Built for the XPR170 CorePlus high-definition plasma system
Servo motors on all axes with zero backlash
Positional accuracy of 0.003 in (0.07 mm)
Available as water table or downdraft table in this size
Z-axis clearance of 7.5 in (190 mm)

Limitations

Maximum cutting speed of 600 ipm (15,240 mm/min)
Plate thickness limited to 1.5 in (38 mm)
ProNest 2025 is an option; ProNest LT is standard
Bevel cutting is manual and optional

Best For

High-definition cutting of sheet and plate up to 1.5 in (38 mm) Parts with bolt holes cut by plasma Shops stepping up from air plasma Standard sheet in a compact footprint

Frequently Asked Questions

01 What plasma does the Silver Cut 5x10 use?

Machitech features the Hypertherm XPR170 CorePlus and also lists the Maxpro200 and PowerMax. The spec table gives plasma amperage as 170A, 200A, 45-125A. Automatic torch height control and a full process database are included.

02 Is it a water table or a downdraft table?

Either, in this size. The table type is listed as water or downdraft. The downdraft model has drawers for parts retrieval and the water table has removable pans.

03 How accurate and how fast is it?

Positional accuracy is 0.003 in (0.07 mm) and repeatability 0.002 in (0.05 mm). Maximum cutting speed is 600 ipm (15,240 mm/min) and maximum rapid traverse 1,000 ipm (25,400 mm/min).

04 What are the dimensions of the Silver Cut 5x10?

Total width 95 in (2,416 mm), total length 167 in (4,232 mm), total height 72 in (1,816 mm). Machine weight is 3,140 lbs (1,424 kg) with standard equipment, without the plasma source.
