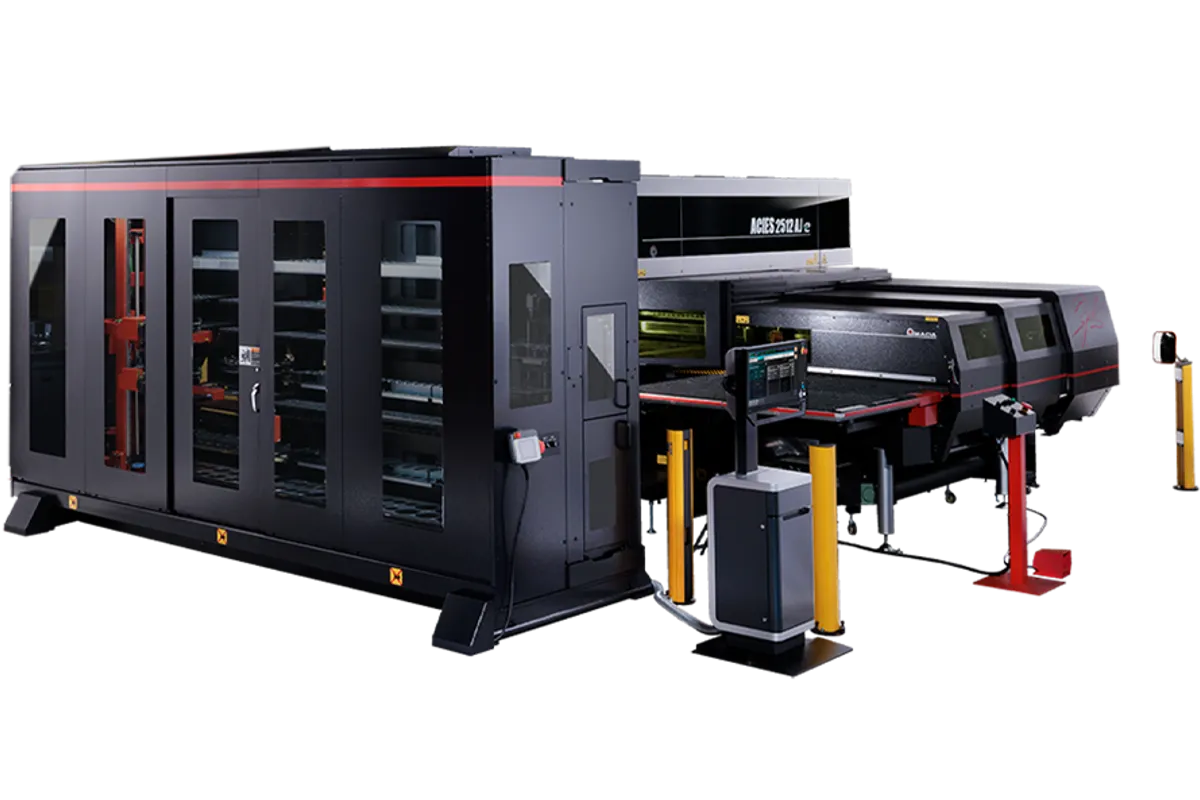

Amada ACIES 2515 AJe

$650,000 - $950,000 Updated 2026-03-19

Key Specifications

Laser Type

Fiber laser

Laser Power

3,000 W (3 kW)

Punching Force

330 kN (33 tons)

Work Area

2,500 x 1,250 mm (98.4 x 49.2 in)

Max Sheet Thickness (Laser, Mild Steel)

16 mm (0.63 in)

Max Sheet Thickness (Punch, Mild Steel)

4.5 mm (0.177 in)

Overview

The Amada ACIES 2515 AJe is a high-capacity fiber laser and turret punch combination machine featuring a 3 kW fiber laser paired with a 33-ton servo-electric punch press on a 2,500 x 1,250 mm work area. The ACIES platform is distinguished by its massive 300-station tool storage capacity with 600 dies, automatic tool and laser nozzle change capability, and a ZR turret with full flat brush table for scratch-free processing of decorative and pre-finished materials.

The AJe designation marks the fiber laser evolution of the ACIES platform, replacing older CO2 laser combination machines. The 3 kW fiber laser provides up to three times the cutting speed of the CO2 equivalent while consuming approximately 45% less electrical power. The fiber source eliminates laser gas consumables, mirror maintenance, and beam path alignment — maintenance burdens that added significant operating cost to CO2 combination machines.

The 33-ton servo-electric punching system delivers extremely fast hit rates with maintenance-free operation. The ZR turret design places all tools above the sheet plane, allowing the full flat brush table to support material from below without marks or scratches. This is critical for shops processing pre-painted, brushed stainless, or anodized aluminum where surface finish preservation is mandatory. The 4-station tapping capability and forming tool support enable complex multi-feature parts in a single setup.

The AMNC 4i touchscreen control with a 21-inch monitor manages both laser and punch operations from a single program. Automatic cutting plate cleaning, automatic laser slag removal, and quick-change lens with 4-nozzle availability reduce operator intervention during production runs. The ACIES 2515 AJe is Amada's premium combination machine for shops that demand maximum tool capacity, scratch-free processing, and fiber laser efficiency on the 2515 sheet format.

Full Specifications

Parameter	Value
Laser Type	Fiber laser
Laser Power	3,000 W (3 kW)
Punching Force	330 kN (33 tons)
Work Area	2,500 x 1,250 mm (98.4 x 49.2 in)
Max Sheet Thickness (Laser, Mild Steel)	16 mm (0.63 in)
Max Sheet Thickness (Punch, Mild Steel)	4.5 mm (0.177 in)
Tool Storage Capacity	300 punches / 600 dies
Tapping Stations	4 stations (MPT)
Turret Type	ZR turret with full flat brush table
Drive System (Punch)	Servo-electric (maintenance-free)
Control	Amada AMNC 4i (21-inch touchscreen)
Automatic Tool/Nozzle Change	Yes
Automatic Die Height Adjustment	Yes
Automatic Slag Removal	Yes
Quick-Change Lens	4-nozzle availability
Power Efficiency	~45% reduction vs CO2 equivalent
Machine Weight	Approximately 23,000 kg (50,700 lb)
E	e
Spindle Power	3KW
Punching Force	33 ton
Tool Capacity	300 station
Cnc Control	AMNC 4i touchscreen control w/ 21" monitor

Specifications sourced from amada.com — verified 2026-03-28

Strengths & Limitations

Strengths

Industry-leading 300-station tool storage with 600 dies provides unmatched flexibility for high-mix fabrication without manual tool changes
33-ton servo-electric punching force exceeds most combination machines, handling heavier forming operations without hydraulic maintenance
ZR turret with full flat brush table ensures scratch-free processing of pre-finished, painted, and decorative sheet materials
3 kW fiber laser delivers 3x cutting speed of CO2 at 45% lower power consumption with near-zero laser maintenance
Automatic tool, nozzle, and die changes enable extended unattended production runs
AMNC 4i control unifies laser and punch programming with intuitive touchscreen interface

Limitations

Premium pricing of $650K-$950K represents one of the highest capital investments in the combination machine category
3 kW laser power limits thick-plate cutting speed compared to dedicated 6-12 kW laser cutters
2,500 x 1,250 mm work area restricts maximum sheet size versus 3015-format machines
Complex dual-technology machine requires specialized service and carries higher maintenance risk than single-function machines

Best For

Fabricators processing pre-painted, brushed stainless, or anodized aluminum where scratch-free processing is mandatory High-mix job shops needing hundreds of tools available without manual changeover for short-run flexibility Electrical enclosure, HVAC, and control panel manufacturers combining cut profiles with punched forms and taps Shops consolidating separate laser cutting and turret punching into a single high-capacity machine Amada ecosystem shops upgrading from older ACIES CO2 or EM-series combination machines to fiber technology

Frequently Asked Questions

01 How does the ACIES 2515 AJe differ from the EML 2515 AJe?

The ACIES 2515 AJe offers higher punching force (33 tons vs 22 tons on the EML), significantly more tool storage (300 stations vs the EML's standard turret), and the ZR turret with full flat brush table for scratch-free processing. The EML is the more cost-effective option, while the ACIES is the premium choice for maximum tool capacity and surface-sensitive processing.

02 What does 300-station tool storage mean in practice?

The ACIES 2515 AJe stores 300 punch tools and 600 dies in an integrated tool magazine. During production, the machine automatically selects and loads tools into the active turret as needed. This means a shop can keep all commonly used tools loaded and ready, eliminating manual changeover between jobs. For high-mix environments, this translates to near-zero setup time.

03 Why is scratch-free processing important?

Many fabricated parts use pre-finished materials — pre-painted steel, brushed stainless, anodized aluminum — where surface marks must be avoided. Traditional turret punches can scratch material surfaces during repositioning. The ACIES ZR turret keeps all tools above the sheet while the flat brush table supports material from below, preventing contact marks throughout processing.

04 What automation can be added to the ACIES 2515 AJe?

The ACIES 2515 AJe supports Amada's MARS tower automation for multi-pallet raw material storage and automatic sheet loading/unloading. ASF compact sheet feeders are also compatible. Combined with 300-station automatic tool change and automatic nozzle management, full MARS integration enables extended lights-out production.
