Boschert TWIN / TRI

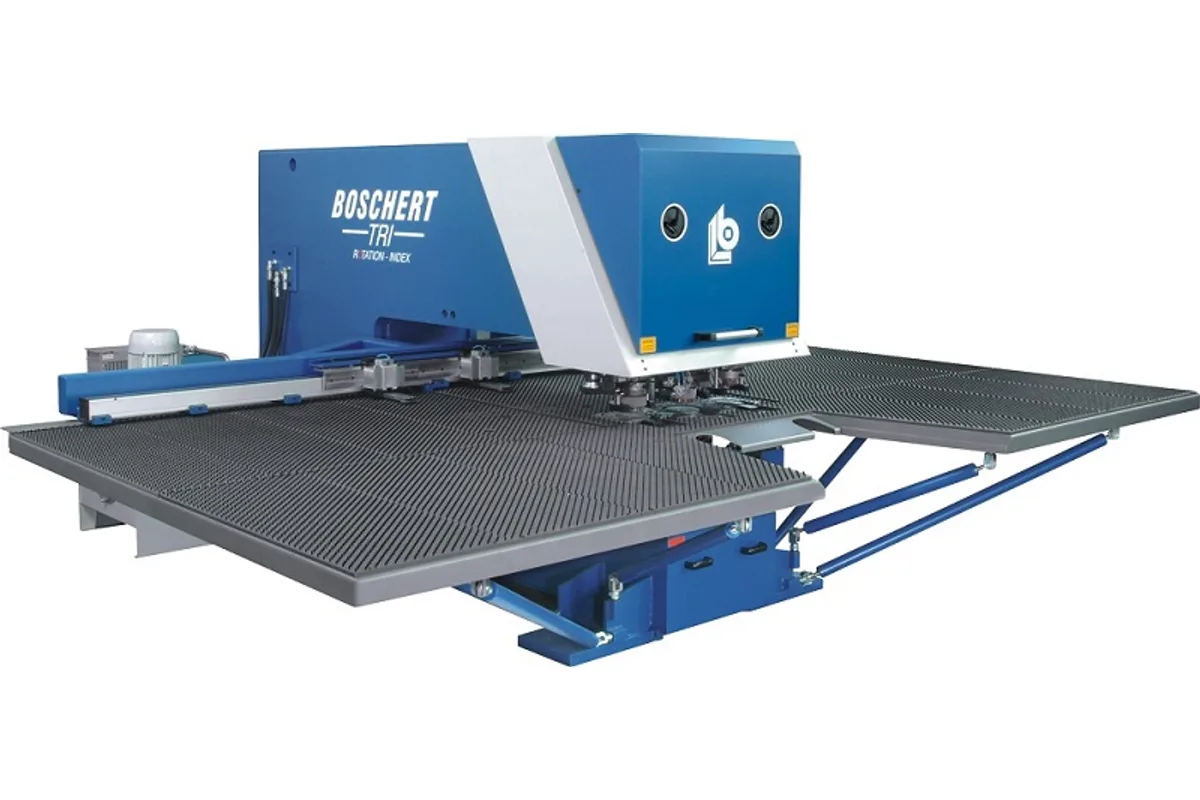

Image: boschert.de, Boschert
Key Specifications
Repeatability
working area
max sheet thickness clamp opening
max sheet thickness revotool
max sheet length
max hydraulic punching power
How much does the Boschert TWIN / TRI cost?
Price estimate
We do not have a price for the Boschert TWIN / TRI that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Boschert TWIN / TRI is a hydraulic CNC punching machine built in five table sizes, with working areas from 560 x 1,000 mm up to 1,560 x 3,000 mm. Punching power is 280 kN on every size, and sheets up to 9,999 mm long are processed by repositioning.
Thick material is where this model earns its place. The table lists a maximum sheet thickness of 12.7 mm at the clamp opening, with 6 mm as the limit through the Revotool. Heavy plate adds up quickly on the larger tables, so check the 200 kg maximum workpiece weight against the sheets you plan to load before settling on a size.
The axes position at 60 m/min in X and 30 m/min in Y, or 67 m/min with both moving. Stroke rate depends on the hydraulics ordered: 250 strokes/min with the standard unit and 800 strokes/min with the fast one. The fast unit brings the 11 kW hydraulic motor and the 25 kVA connection in place of 4.8 kW and 20 kVA.
Punches up to 105 mm in diameter, or any shape within 105 mm, are accepted. A Revotool with 4, 6, 7 or 8 stations changes tools in 2-4 sec., against 15 sec. for a manual change. During punching Boschert gives a positioning difference of +/- 0.05 mm and a repeatability of +/- 0.03 mm. Floor space runs from 4,480 x 4,088 mm for the smallest machine to 8,060 x 6,588 mm for the largest, and weight from 7,500 kg to 15,800 kg.
Full Specifications
| Parameter | Value |
|---|---|
| Working Area | 560 x 1,000 mm (22.0 x 39.4 in); 810 x 1,500 mm (31.9 x 59.1 in); 1,060 x 2,000 mm (41.7 x 78.7 in); 1,310 x 2,500 mm (51.6 x 98.4 in); 1,560 x 3,000 mm (61.4 x 118.1 in) |
| Max Sheet Thickness Clamp Opening | 12.7 mm (0.5 in) |
| Max Sheet Thickness Revotool | 6 mm (0.2 in) |
| Max Sheet Length | 9,999 mm (393.7 in) by repositioning |
| Max Hydraulic Punching Power | 280 kN |
| Max Workpiece Weight | 200 kg (441 lb) |
| Max Positioning Speed X | 60 m/min |
| Max Positioning Speed Y | 30 m/min |
| Max Positioning Speed Simultaneous X Y | 67 m/min |
| Max Strokes Standard Hydraulic | 250 strokes/min |
| Max Strokes Fast Hydraulic | 800 strokes/min |
| Tooling System | Trumpf® tooling system |
| Max Punching Diameter | 105 mm (4.1 in) or any shape within 105 mm |
| Revotool | 4 / 6 / 7 & 8 stations |
| Tool Change Time | 2-4 sec. Revotool; 15 sec. manual |
| Positioning Difference Punching | +/- 0.05 mm |
| Repeatability | +/- 0.03 mm |
| Machine Dimensions | 500x1000: 4,480 x 4,088 x 2,100 mm (176.4 x 160.9 x 82.7 in); 750x1500: 5,100 x 4,713 x 2,100 mm (200.8 x 185.6 x 82.7 in); 1000x2000: 6,100 x 5,338 x 2,100 mm (240.2 x 210.2 x 82.7 in); 1250x2500: 7,060 x 5,963 x 2,100 mm (278.0 x 234.8 x 82.7 in); 1500x3000: 8,060 x 6,588 x 2,100 mm (317.3 x 259.4 x 82.7 in) |
| Machine Weight | TWIN / TRI 500x1000: 7,500 kg (16,534 lb); 750x1500: 11,500 kg (25,353 lb); 1000x2000: 12,500 kg (27,557 lb); 1250x2500: 14,000 kg (30,864 lb); 1500x3000: 15,800 kg (34,832 lb) |
| Electrical Connecting Value | 20 / 25 kVA (standard hydr. / fast hydr.) |
| Hydraulic Motor | 4.8 / 11 kW (6.4 / 14.8 hp) |
| Electrical Consumption 2 Mm Sheet | 4.9 / 7.7 kW/h continuous operation |
| Electrical Consumption 4 Mm Sheet | 5.4 / 8.75 kW/h continuous operation |
| Required Fuse | 3 x 25 A / 3 x 35 A |
| Pneumatic Connecting Value | min. 4 bar |
| Hydraulic Oil | 115 / 160 Liter |
Specifications sourced from boschert.de — verified 2026-10-05
Strengths & Limitations
Strengths
- Clamp opening for sheet up to 12.7 mm thick, and up to 6 mm through the Revotool
- Five working areas from 560 x 1,000 mm to 1,560 x 3,000 mm, all with 280 kN of punching power
- Positioning difference of +/- 0.05 mm and repeatability of +/- 0.03 mm during punching
- 800 strokes/min with the fast hydraulic unit
- Sheet lengths up to 9,999 mm by repositioning
Limitations
- Y positioning speed is 30 m/min, half the 60 m/min of the X axis
- Standard hydraulics give 250 strokes/min; 800 strokes/min needs the fast unit with its 11 kW motor
- Maximum workpiece weight is 200 kg on every table size
- A manual tool change takes 15 sec.
Best For
Frequently Asked Questions
01
Five working areas are listed: 560 x 1,000 mm, 810 x 1,500 mm, 1,060 x 2,000 mm, 1,310 x 2,500 mm and 1,560 x 3,000 mm. Machine weight rises from 7,500 kg on the smallest to 15,800 kg on the largest, and the footprint from 4,480 x 4,088 mm to 8,060 x 6,588 mm.
02
The clamp opening takes sheet up to 12.7 mm, and work through the Revotool is limited to 6 mm. Punching power is 280 kN and the largest punch is 105 mm in diameter, or any shape that fits within 105 mm. Workpieces may weigh up to 200 kg.
03
Positioning speed is 60 m/min in X, 30 m/min in Y and 67 m/min with both axes moving. The standard hydraulics reach 250 strokes/min and the fast hydraulics 800 strokes/min. A Revotool changes tools in 2-4 sec.; a manual change takes 15 sec.
04
With standard hydraulics, a 20 kVA connection and 3 x 25 A fuses; with fast hydraulics, 25 kVA and 3 x 35 A. Compressed air is needed at min. 4 bar. The hydraulic oil fill is listed as 115 / 160 Liter for the two hydraulic units.
