Matsuura LF-160
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
Overview

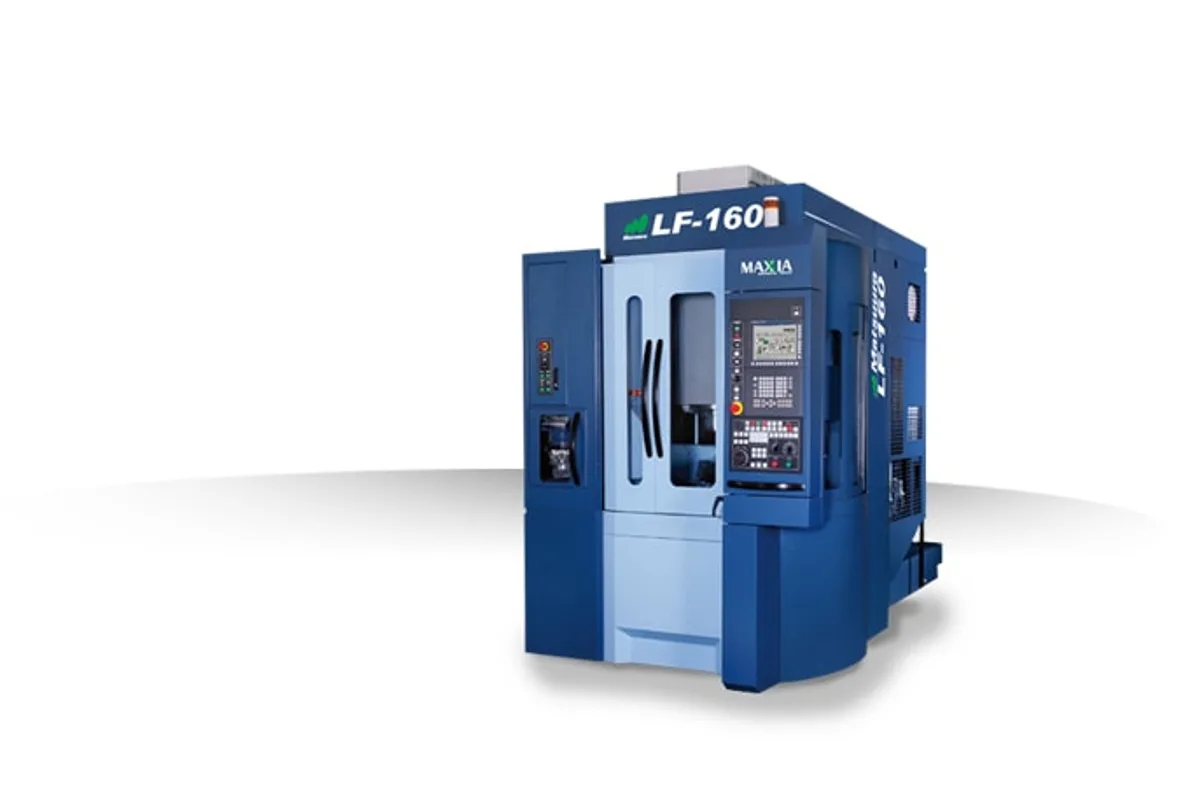

The Matsuura LF-160 is a high-rigidity vertical machining center from Matsuura's LF series, positioned as a general-purpose production VMC that balances speed, rigidity, and reliability. Unlike the linear-motor LX series, the LF-160 uses precision ballscrews on all axes, making it a more cost-effective option for shops that need solid 3-axis performance without the premium of linear motor drives. It's the kind of VMC that handles everything from aluminum housings to steel production parts without complaint.
Axis travel measures 900 x 500 x 460 mm (35.4 x 19.7 x 18.1 in) on X/Y/Z. The spindle runs at 12,000 RPM through a BT40 taper with 11/15 kW (15/20 hp) of power. A 15,000 RPM high-speed option is available for aluminum-dominant shops. Rapid traverse reaches 42 m/min on all three axes. The table is 1,100 x 500 mm (43.3 x 19.7 in) with a 500 kg (1,102 lb) load capacity, providing ample room for multi-part fixturing or larger single workpieces.
The machine features a C-frame construction with hardened and ground box ways on all axes for rigidity and vibration damping. The tool magazine holds 24 tools standard with a 30-tool option. Tool-to-tool change time is 1.2 seconds. The LF-160 runs on Matsuura's G-Tech 31i touchscreen control. Through-spindle coolant at 15 bar is standard. Machine weight is approximately 5,800 kg (12,787 lb) with a footprint of 2,700 x 2,300 mm. The LF-160 competes in the mid-range production VMC space against machines like the Okuma GENOS M560-V, Mazak VCN-530C, and Haas VF-3 — offering Japanese build quality at a competitive price point.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 900 mm (35.4 in) |
| Y-Axis Travel | 500 mm (19.7 in) |
| Z-Axis Travel | 460 mm (18.1 in) |
| Max Spindle Speed | 400 ~ 46.000 min-1 |
| Spindle Taper | BT40 |
| Spindle Motor Power | 7,5 / 15 kW |
| Spindle Torque | 120 Nm |
| Tool Capacity | 10 - 338 pieces |
| Table Size | 1,100 x 500 mm (43.3 x 19.7 in) |
| Table Load Capacity | 500 kg (1,102 lb) |
| Rapid Traverse Xyz | 42 m/min (1,654 ipm) |
| Tool Change Time | 1.2 sec (tool-to-tool) |
| Through Spindle Coolant | 15 bar standard |
| Guideway Type | Box ways (hardened and ground) |
| Machine Weight | 5,800 kg (12,787 lb) |
| Floor Space Required | 2,700 x 2,300 mm |
| CNC Control | Matsuura G-Tech 31i (FANUC 31i-B5 based, touch screen) |
| X Axis | 90/90 m/min |
| Y Axis | 90/90 m/min |
| Z Axis | 90/90 m/min |
| B Axis | 100 min-1 |
| C Axis | 200 min-1 |
| Number Of Pallets | 2 / 42 / 91 Stück |
| Pallet Size | Ø 100 mm |
| Loading Capacity Per Pallet | 20 kg |
| Max Work Size | Ø 160 x H 230 mm |
| Max Spindle Torque | 8,68 Nm / 16.500 min-1 |
| Tool Holder | BT30 / SK30 / HSK40 |
| Name | |
| Provider | LinkedIn Ireland Unlimited Company |
| Purpose | This is an advertising service. This service records what happens after a click on an advert and posts placed by us via LinkedIn when users subsequently visit the website. |
| Data Protection | https://www.linkedin.com/legal/privacy-policy |
| Precision Mechanics Optics | Medical Technology |
Specifications sourced from matsuura.de — verified 2026-03-28
Strengths & Limitations
Strengths
- Box-way construction on all axes delivers excellent rigidity and vibration damping for interrupted cuts in cast iron and steel
- Competitive price point for a Japanese-built VMC — delivers build quality above domestic alternatives in this range
- 1.2-second tool-to-tool change time keeps cycle times tight in multi-operation production work
- 900 mm X-travel and 1,100 mm table length support multi-part fixturing and larger single workpieces
- 500 kg table load handles heavy fixtures and production tombstone setups without concern
- Same G-Tech 31i control platform as Matsuura's 5-axis machines — consistent operator experience across the shop
Limitations
- 24-tool standard magazine is limiting for complex parts — the 30-tool option or a larger magazine would improve flexibility
- 12,000 RPM spindle with 15 kW is adequate but unremarkable in this machine class
- Matsuura's VMC market presence in North America is overshadowed by their 5-axis reputation, affecting resale value and service
- 460 mm Z-travel is on the shorter side and may limit tall part or deep cavity work
- No factory pallet changer option — automation requires third-party integration
Best For
Frequently Asked Questions
01
New LF-160 pricing typically ranges from $120,000 to $200,000 depending on spindle configuration and options. This puts it in the same price band as a well-equipped Haas VF-3 or Okuma GENOS M460-V-e, but with box-way rigidity and Matsuura's build quality. Used LF-series machines are uncommon in North America.
02
The Haas VF-3 is the volume leader in this segment with a massive installed base, extensive dealer network, and lower entry price. The LF-160 counters with box-way rigidity (vs the VF-3's linear guides), a faster tool change (1.2 vs ~4.2 sec), and higher build quality in terms of fit and finish. The Haas wins on price, parts availability, service network, and options variety. The Matsuura is the better machine for heavy cutting and long-term dimensional consistency.
03
It can handle basic mold roughing and semi-finishing in P20 and pre-hardened steels, but for precision mold finishing you'd want the LX-160 with its linear motor drives and 20,000 RPM spindle. The LF-160's box ways and 12,000 RPM spindle are better suited for general production work, plate machining, and component manufacturing rather than fine surface finishing on hardened mold steels.
