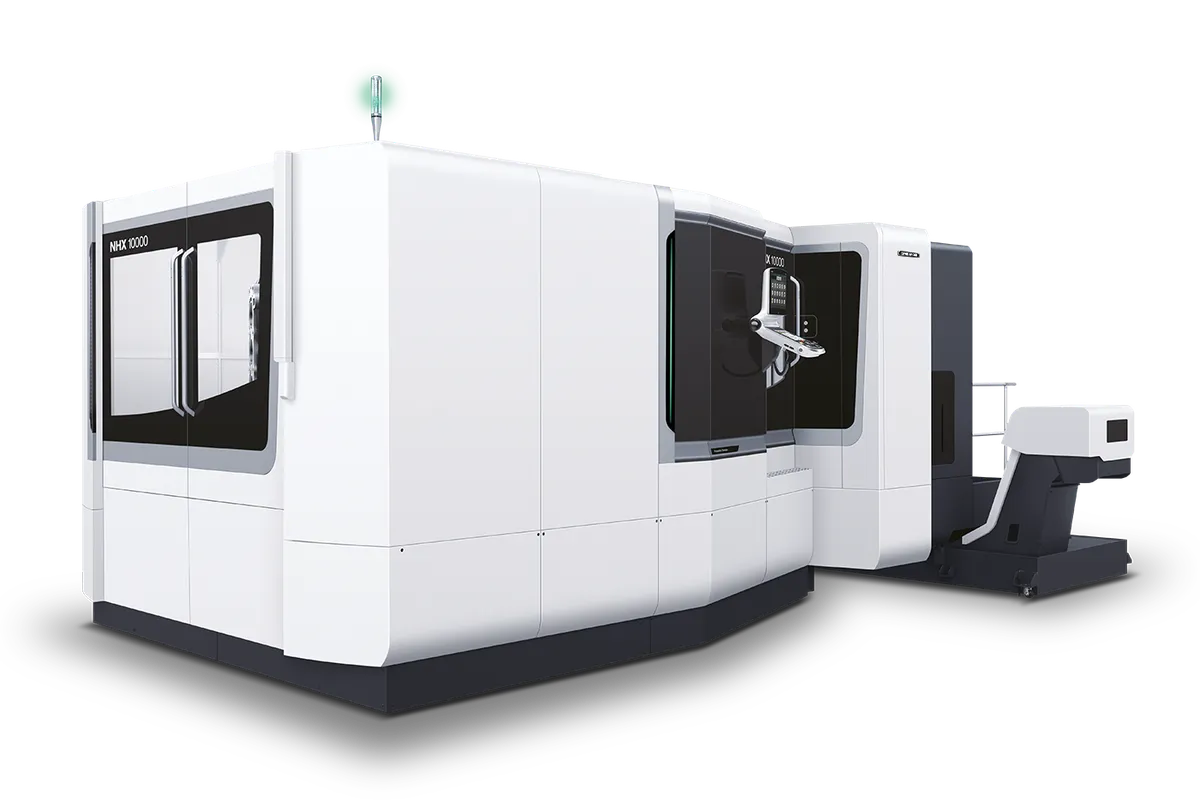

DMG Mori NHX 10000
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
Overview
The DMG Mori NHX 10000 is the flagship of the NHX horizontal machining center lineup, built around a massive 1,000 x 1,000 mm (39.4 x 39.4 in) pallet for the largest prismatic components in heavy industry, energy, and aerospace. With 1,300 x 1,100 x 1,200 mm (51.2 x 43.3 x 47.2 in) of travel, it handles workpieces that exceed 800mm platforms.
The speedMASTER spindle runs at 6,000 RPM through CAT 50, producing 45 kW (60 hp) and 700 Nm (516 ft-lb) torque. Rapid traverse hits 42 m/min. Maximum pallet load is 2,000 kg (4,409 lb). Standard 60-tool magazine expandable to 120 or 180. Thermo-symmetric design with comprehensive active cooling. Competitors include Okuma MB-10000H, Mazak HCN-10800, and Toyoda FH1250SX. New $800,000-$1,200,000. Specs sourced from DMG Mori published data.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 1,300 mm (51.2 in) |
| Y-Axis Travel | 1,100 mm (43.3 in) |
| Z-Axis Travel | 1,200 mm (47.2 in) |
| Max Spindle Speed | 6,000 RPM |
| Spindle Taper | No. 50 / CAT 50 |
| Spindle Motor Power | 45 kW (60 hp) |
| Spindle Torque | 700 Nm (516 ft-lb) |
| Tool Capacity | 60 tools standard (120, 180 optional) |
| Tool Change Time | 5.0 sec tool-to-tool |
| Pallet Size | 1,000 x 1,000 mm (39.4 x 39.4 in) |
| Pallet Change Time | 22 sec |
| Max Workpiece Size | 1,500 x 1,600 mm (59.1 x 63.0 in) |
| Max Work Weight | 2,000 kg (4,409 lb) |
| Rapid Traverse Rate | 42 m/min (1,654 ipm) |
| Table Indexing | 0.001 deg increment (B-axis) |
| Machine Weight | 35,000 kg (77,162 lb) |
| CNC Control | CELOS with Fanuc 31i-B5 |
| 1700 Mm | 66.9 in. |
| 1400 Mm | 55.1 in. |
| 1510 Mm | 59.4 in. |
| 2000 Mm | 78.7 in. |
| 1600 Mm | 63 in. |
| 3000 Kg | 6613.9 lbs. |
| Customer Benefits | MPC Graph: aktuelle und angelernte Prozesswerte. / MPC Diagnostics: Lagerzustand, Anzahl von Stoß und Crash. |
| Customer Benefitsshorter Set Up Timesno Great Experience Necessary To Take Measurements | Left : Structured user notes for the measurement results. / Right : Toolsetter mode – length / diameter and wear measurement. |
Specifications sourced from us.dmgmori.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 1,000 x 1,000 mm pallet with 2,000 kg load capacity handles the largest standard HMC workpieces
- Extended travel of 1,300 x 1,100 x 1,200 mm for deep-cavity work on the biggest industrial components
- 700 Nm spindle torque with CAT 50 delivers sustained heavy metal removal in cast iron and steel
- Thermo-symmetric design with active cooling maintains dimensional accuracy through multi-hour cycles
- CELOS ecosystem provides production monitoring, tool management, and IoT connectivity
- Two-pallet changer maintains productivity on largest workpieces
Limitations
- At 35,000 kg requires specialized foundation engineering and heavy crane access
- 6,000 RPM max strictly for ferrous material production
- 42 m/min rapids noticeably slower than smaller HMCs
- $800,000+ price plus $100,000-$200,000 foundation and installation costs
- 22-second pallet change time is longest in NHX range
Best For
Frequently Asked Questions
01
$800,000-$1,200,000. Foundation, rigging, and installation add $100,000-$200,000+. LPP typically exceeds $500,000. Used units trade $400,000-$750,000.
02
At 35,000 kg, heavily reinforced concrete 400-600mm thick. Plan for 30-40+ ton crane capacity.
03
Upgrade when workpieces exceed 800mm pallet capacity, weigh over 1,500 kg, or need more than 1,050mm X-travel.
04
Both top-tier 1,000mm HMCs. Okuma has Thermo-Friendly Concept and OSP control. DMG Mori offers CELOS and LPP ecosystem.
05
Yes, though not primary application. 700 Nm torque handles titanium with high-pressure coolant (70+ bar). Most buyers machine cast iron and steel.

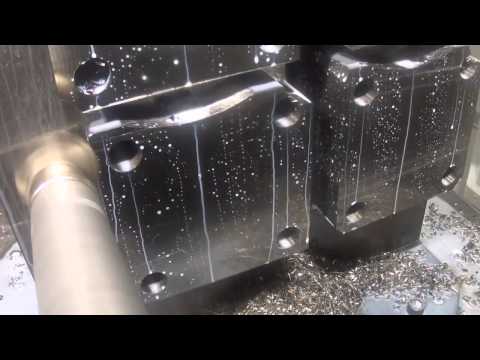

Videos
