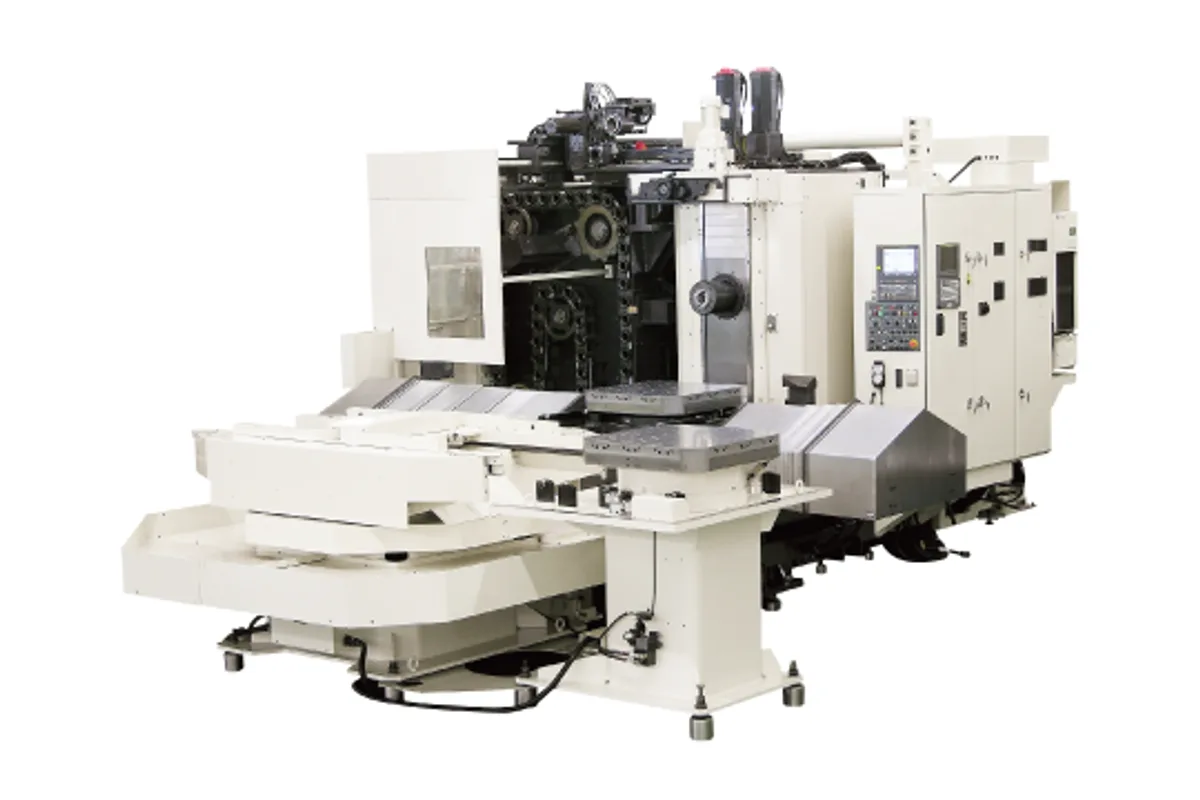

Yasda YBM 8T
Image: yasda.co.jp, Yasda Precision
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Yasda YBM 8T cost?
Price estimate
We do not have a price for the Yasda YBM 8T that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
An 800 mm square table and 1,100 mm (43.3 in) of Z travel place the Yasda YBM 8T in the middle of the precision center range. X travel is 1,300 mm (51.2 in) and Y is 1,000 mm (39.4 in). Yasda gives it the same short description as its siblings: a mother machine with excellent thermal stability and durability.
The long Z is what stands out against the smaller YBM 7T, which has 800 mm. On a horizontal machine Z is the axis that feeds a boring bar into the part, and 1,100 mm lets a bar pass through a deep housing or reach the far wall of a large casting from one side. That saves an index of the table, and with it one source of alignment error between bores.
Y travel can be ordered in two lengths. The base stroke is 1,000 mm, with a machine height of 3,495 mm (137.6 in); the extended stroke is 1,250 mm, and the height becomes 3,745 mm (147.4 in). Z can be extended to a total of 1,400 mm. Tall parts on angle plates are the reason to take the longer Y, and the building has to allow for it.
Spindles match those of the YBM 7T: 50-10,000 min-1 on MAS BT50 as the base, a 60-6,000 min-1 high-torque option, a 60-15,000 min-1 high-speed option, and a 200-20,000 min-1 spindle with MAS BT40. The machine comes with 60 tools and 2 pallets. Tool storage of 90 tools or 120-450 tools and a 6PLS APC are options. The control is a FANUC 31i-B5 Plus.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 1,300 mm (51.2 in) |
| Y-Axis Travel | 1,000 mm (39.4 in) |
| Z-Axis Travel | 1,100 mm (43.3 in) |
| Table Working Size | 800 x 800 mm (31.5 x 31.5 in) |
| Max Spindle Speed | 50-10,000 min-1 (60-6,000 min-1 high-torque spindle opt., 60-15,000 min-1 high-speed spindle opt., 200-20,000 min-1 high-speed spindle opt.) |
| Spindle Taper | MAS BT50 (MAS BT40 with the 200-20,000 min-1 high-speed spindle opt.) |
| Tool Capacity | 60 tools (90 tools/120-450 tools opt.) |
| APC | 2 pallets (6PLS opt.) |
| Stroke Extension | Y 1,250 mm / Z 1,400 mm total length (opt.) |
| CNC Control | FANUC 31i-B5 Plus |
| Machine Height | 3,495 mm (137.6 in) with Y = 1,000 mm stroke; 3,745 mm (147.4 in) with Y = 1,250 mm stroke |
Specifications sourced from yasda.co.jp — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,300 x 1,000 x 1,100 mm of travel around an 800 x 800 mm (31.5 x 31.5 in) table
- Z travel of 1,100 mm (43.3 in), extendable to 1,400 mm total length
- Y stroke available as 1,000 mm or 1,250 mm
- Base, high-torque and two high-speed spindles to choose from
- 2 pallets standard; 6PLS and up to 120-450 tools optional
Limitations
- Machine height rises to 3,745 mm (147.4 in) with the 1,250 mm Y stroke
- The 200-20,000 min-1 spindle uses MAS BT40 and not the BT50 of the other spindles
- 60 tools in the base magazine may be short for a multi-pallet cell
- Table load is not given on the product page
Best For
Frequently Asked Questions
01
1,300 mm (51.2 in) in X, 1,000 mm (39.4 in) in Y and 1,100 mm (43.3 in) in Z. Stroke extension is optional, to a total length of 1,250 mm in Y and 1,400 mm in Z.
02
Machine height is 3,495 mm (137.6 in) with the 1,000 mm Y stroke and 3,745 mm (147.4 in) with the 1,250 mm Y stroke. Check the figure for the configured machine before planning the installation.
03
The YBM 8T is the precision center with an 800 mm square table and 2 pallets. The YBM 8T-63TT is a table trunnion type 5-axis machine with a 630 x 630 mm table working size and 1,000 mm of X travel.
04
Besides the 50-10,000 min-1 MAS BT50 base spindle there is a 60-6,000 min-1 high-torque spindle, a 60-15,000 min-1 high-speed spindle, and a 200-20,000 min-1 high-speed spindle with a MAS BT40 taper.
