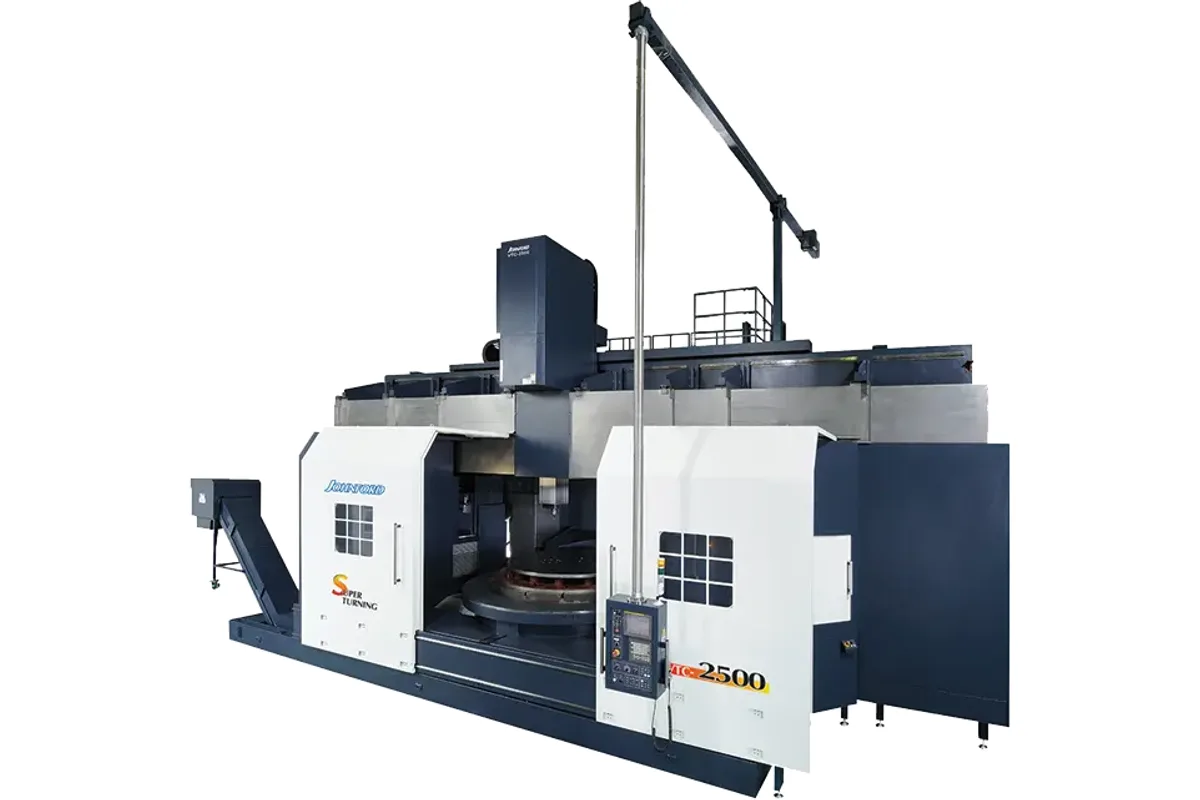

Johnford VTC-2500ATC
Image: johnford.com.tw, Johnford
Key Specifications
Tool Capacity
Spindle Power
max swing diameter
max turning diameter
max turning height
table diameter
How much does the Johnford VTC-2500ATC cost?
Price estimate
We do not have a price for the Johnford VTC-2500ATC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Johnford VTC-2500ATC is a three-metre vertical turning center. Maximum swing and turning diameter are Ø3,000 mm (Ø118.1 in), the work table is Ø2,500 mm (Ø98.4 in), and the table load is 15,000 kg (33,000 lb).
Mechanically it is close kin to the VTC-2000ATC. Both list 44,556 Nm (32,865 lb-ft) of torque, a 45 / 55 kW (60.3 / 73.8 hp) motor with a 60 / 75 kW (80.5 / 100.6 hp) option, 2-160 rpm at the table, 1,600 mm (63 in) of turning height and 1,000 mm of ram and cross rail travel. What the 2500 adds is half a metre of diameter and half as much load again over the 10,000 kg (22,000 lb) of the VTC-2000ATC. X travel goes to 1,935 mm (76.2 in).
Same torque at a larger radius means a lighter cut at the rim. A shop that mostly roughs at full diameter should note it. One that mostly needs the swing, for thin-walled rings, fabricated drums or large covers, loses nothing.
Fifteen tonnes on the table opens the machine to hydro turbine runners, large pump casings, crusher parts and mill heads. The standard table has 4 independent jaws; parts like these are usually set up on them with jacks and clamps, not in a chuck.
The maker's table has a misprint in this model's ram section, so that row is left out of this page. The machine weighs 75,000 kg (165,000 lb) and measures 9,200 x 7,820 x 6,860 mm (362.2 x 307.9 x 270.1 in).
Full Specifications
| Parameter | Value |
|---|---|
| Max Swing Diameter | Ø3,000 mm (Ø118.1 in) |
| Max Turning Diameter | Ø3,000 mm (Ø118.1 in) |
| Max Turning Height | 1,600 mm (63 in) |
| Table Diameter | Ø2,500 mm (Ø98.4 in) |
| Max Table Load | 15,000 kg (33,000 lb) |
| X Axis Travel | 1,935 mm (76.2 in) |
| Z Axis Travel | 1,000 mm (39.3 in) |
| W Axis Travel | 1,000 mm (39.4 in) |
| Table Speed | 2-160 rpm |
| Spindle Speed Steps | Auto Hi-Lo |
| Spindle Torque | 44,556 Nm (32,865 lb-ft) |
| Power Spindle Speed Optional | 2-2,400 rpm |
| Rapid Traverse Xz | 12 / 10 m/min (472 / 394 ipm) |
| Tool Capacity | ATC type: 12 (Std.); 16, 24, 40, 60 (Opt.) |
| Tool Shank | 7 / 24 taper BT-50 |
| Max Tool Size ATC | 300W x 155T x 500L (mm) |
| Max Tool Weight | 50 kg (110 lb) |
| Max ATC Load | 350 kg (770 lb) |
| Tool Change Time | 30 sec |
| Square Tool Holder Size | □32 x □32 (Ø60) (mm) |
| Spindle Motor Power | 45 / 55 kW (60.3 / 73.8 hp) Std. (60 / 75 kW (80.5 / 100.6 hp) Opt.) |
| Power Spindle Motor Optional | 11 / 15 kW (14.8 / 20.1 hp) (Std.); 15 / 18.5 kW (20.1 / 24.8 hp) (Opt.) |
| Axis Servo Motors Xz | 7 / 7 kW |
| Cf Axis Motor Optional | 4 kW |
| Coolant Pump Motor | 0.98 kW |
| Cross Rail Motor | 7.5 kW |
| Hydraulic Motor | 3.8 kW |
| Machine Weight | 75,000 kg (165,000 lb) |
| Machine Dimensions | 9,200 x 7,820 x 6,860 mm (362.2 x 307.9 x 270.1 in) |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Ø3,000 mm (Ø118.1 in) swing and turning diameter
- 15,000 kg (33,000 lb) table load on a Ø2,500 mm (Ø98.4 in) table
- 44,556 Nm (32,865 lb-ft) torque with 45 / 55 kW (60.3 / 73.8 hp) standard
- 1,600 mm (63 in) turning height
- Optional C-axis and 2-2,400 rpm power spindle for milling and drilling
Limitations
- Torque is the same as on the VTC-2000ATC although the turning radius is larger
- Table speed range of 2-160 rpm only
- The ram section cannot be taken from the maker's table for this model
- 75,000 kg (165,000 lb) and a 9,200 x 7,820 mm (362.2 x 307.9 in) footprint
Best For
Frequently Asked Questions
01
Up to Ø3,000 mm (Ø118.1 in) in diameter, 1,600 mm (63 in) in height and 15,000 kg (33,000 lb) in weight, on a Ø2,500 mm (Ø98.4 in) table.
02
The VTC-3000ATC swings Ø4,000 mm (Ø157.5 in) on a Ø3,000 mm (Ø118.1 in) table, has a 60 / 75 kW (80.5 / 100.6 hp) motor as its listed drive and 47,275 Nm (34,870 lb-ft) of torque at 2-75 rpm. The VTC-3000ATC has the same 15,000 kg (33,000 lb) table load and weighs 85,000 kg (187,000 lb).
03
Cross travel (X) is 1,935 mm (76.2 in), vertical travel of the ram (Z) is 1,000 mm (39.3 in) and vertical travel of the cross rail (W) is 1,000 mm (39.4 in). Rapid traverse is 12 / 10 m/min (472 / 394 ipm) in X and Z.
04
A work table with 4 independent jaws, a 12-tool ATC for BT-50, an automatic 2-speed gearbox, a 4 bar external coolant supply, a topless splash guard with interlocks, a chain type chip conveyor and a Fanuc 0i-TF PLUS controller.
