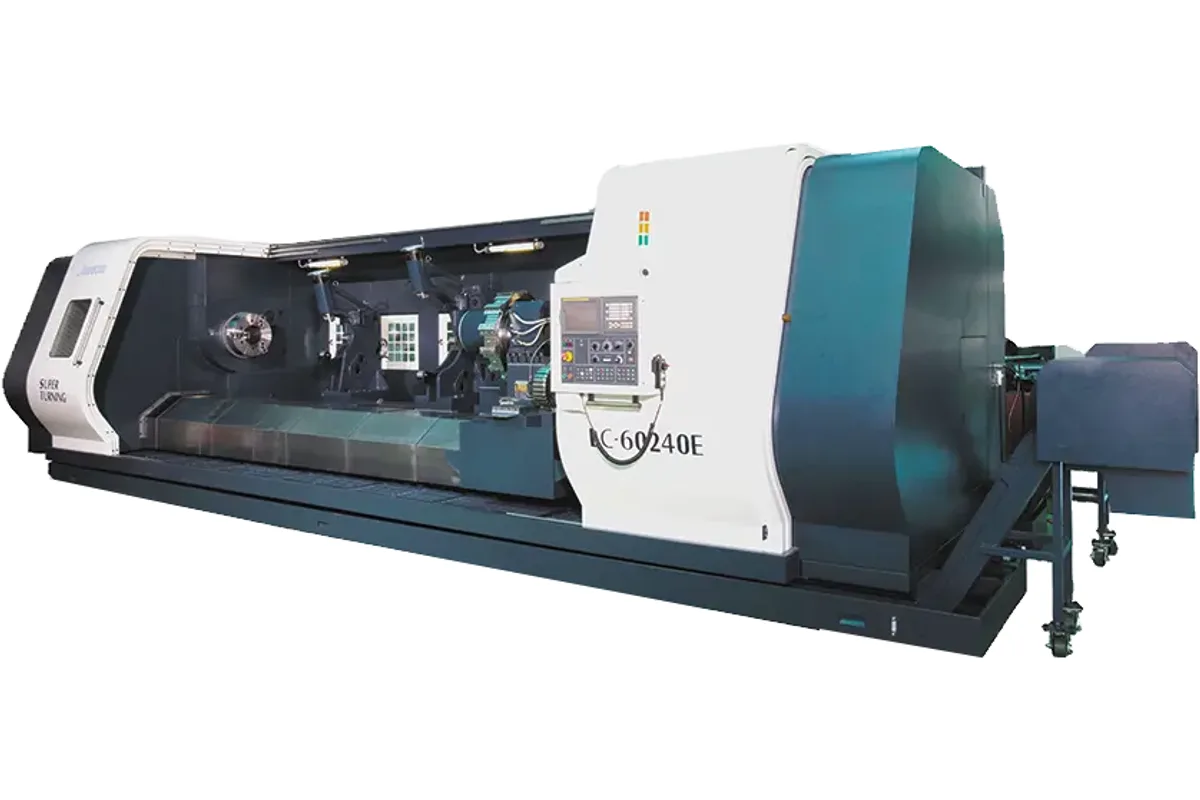

Johnford LC-60
Image: johnford.com.tw, Johnford
Key Specifications
Max Spindle
Rapid Traverse
Spindle Power
swing over bed
swing over cross slide
distance between centers
How much does the Johnford LC-60 cost?
Price estimate
We do not have a price for the Johnford LC-60 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Johnford LC-60 is the top of Johnford's flat-bed range and the only LC model with larger drives. It swings 1,550 mm (61 in) over the bed and 1,100 mm (43.3 in) over the cross slide.
Every motor row differs from the LC-40 and LC-50 columns. The spindle motor is 30 / 37 kW (40.2 / 49.6 hp), with 37 / 45 kW (49.6 / 60.3 hp) as the option. The X-axis servo motor is 4 kW, the Z-axis servo motor 7 kW and the C-axis motor 3 kW. With a carriage that has to feed a tool through a cut at a radius of half a metre or more, the heavier Z drive is the one that counts.
What stays the same is the 1,145 mm (45 in) bed width, the automatic 4-speed gearbox, the ten spindle variants from B to K and the tailstock with its Ø250 mm (9.8 in) quill. An auto 4-speed gearhead for heavier cutting is an option.
Rapid traverse is 6 m/min on X and 8 m/min on Z. On beds that can reach 20,000 mm between centers, long moves take time, and a second carriage is on the options list: an additional CNC-driven carriage for a boring bar system. Listed weights run from 24,000 kg (model 6080) to 38,000 kg (model 60360).
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | 1,550 mm (61 in) |
| Swing Over Cross Slide | 1,100 mm (43.3 in) |
| Distance Between Centers | 2,000 / 3,000 / 4,000 / 5,000 / 6,000 / 7,000 / 8,000 / 9,000 mm, up to 20,000 mm |
| Bed Width | 1,145 mm (45 in) |
| Spindle Nose | B: A2-11 / C, D, E, F: A2-15 / G, H: A2-20 / I, J: A2-28 / K: A2-32 |
| Spindle Bore | B: Ø132.5 mm / C: Ø152 mm / D: Ø176 mm / E: Ø236 mm / F: Ø255 mm / G: Ø318 mm / H: Ø360 mm / I: Ø410 mm / J: Ø535 mm / K: Ø610 mm |
| Spindle Transmission | Auto 4-speeds |
| Max Spindle Speed | B: 2,000 rpm / C: 1,200 rpm / D: 1,000 rpm / E: 750 rpm / F: 600 rpm / G: 500 rpm / H: 400 rpm / I: 300 rpm / J: 250 rpm / K: 220 rpm |
| Spindle Bearing Diameter | B: Ø180 mm / C: Ø220 mm / D: Ø240 mm / E: Ø280 mm / F: Ø305 mm / G: Ø381 mm / H: Ø457 mm / I: Ø480 mm / J: Ø610 mm / K: Ø700 mm |
| Turret Stations | 4 / 6 / 8 / 12 position, or Twin turret (Opt.) |
| Square Tool Holder Size | 32 x 32 mm (1.3 x 1.3 in) |
| Tool Shank Size | Ø50 (Std.), Ø60 (Opt.) / VDI 50 (Std.), VDI 60 (Opt.) (mm) |
| Rapid Traverse Rate | X: 6 m/min (236 ipm); Z: 8 m/min (315 ipm) |
| Tailstock Quill Type | Rotary tailstock spindle |
| Tailstock Quill Travel | 250 mm (9.8 in) |
| Tailstock Quill Diameter | Ø250 mm (Ø9.8 in) |
| Tailstock Taper | MT#6 (MT#7 Opt.) |
| Spindle Motor Power | 30 / 37 kW (40.2 / 49.6 hp); 37 / 45 kW (49.6 / 60.3 hp) Opt. |
| Servo Motor X | 4 kW |
| Servo Motor Z | 7 kW |
| Coolant Pump Motor | 0.98 kW |
| Hydraulic Motor | 3.8 kW |
| C Axis Motor | 3 kW |
| Machine Weight | LC-6080: 24,000 kg / LC-60120: 26,000 kg / LC-60160: 28,000 kg / LC-60200: 30,000 kg / LC-60240: 32,000 kg / LC-60280: 34,000 kg / LC-60320: 36,000 kg / LC-60360: 38,000 kg |
| Series Models | 6080, 60120, 60160, 60200, 60240, 60280, 60320, 60360, 60400, 60440, 60480 |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,550 mm (61 in) swing over the bed, 1,100 mm (43.3 in) over the cross slide
- 30 / 37 kW (40.2 / 49.6 hp) standard, 37 / 45 kW (49.6 / 60.3 hp) optional
- 7 kW Z-axis and 4 kW X-axis servo motors
- Spindle bores from Ø132.5 mm to Ø610 mm
- Distances between centers up to 20,000 mm
Limitations
- Rapid traverse of 6 m/min on X and 8 m/min on Z
- No chuck is included with the machine
- Bed width is the same 1,145 mm (45 in) as on the smaller LC models
- Semi-enclosure as standard
Best For
Frequently Asked Questions
01
Swing and drives. The LC-50 swings 1,275 mm (50.2 in) over the bed with a 22 / 26 kW (29.5 / 34.9 hp) motor and 3 kW and 4 kW axis motors. The LC-60 swings 1,550 mm (61 in) with 30 / 37 kW (40.2 / 49.6 hp) and 4 kW and 7 kW axis motors.
02
Distances between centers are listed as 2,000, 3,000, 4,000, 5,000, 6,000, 7,000, 8,000 and 9,000 mm, and up to 20,000 mm. The model names in the heading run from 6080 to 60480.
03
The table lists eight lengths, from 24,000 kg (model 6080) to 38,000 kg (model 60360). Longer beds, up to model 60480, have no listed weight.
04
A programmable hydraulic tailstock with a rotary quill of Ø250 mm (9.8 in), 250 mm (9.8 in) of quill travel and an MT#6 taper, with MT#7 as an option.
