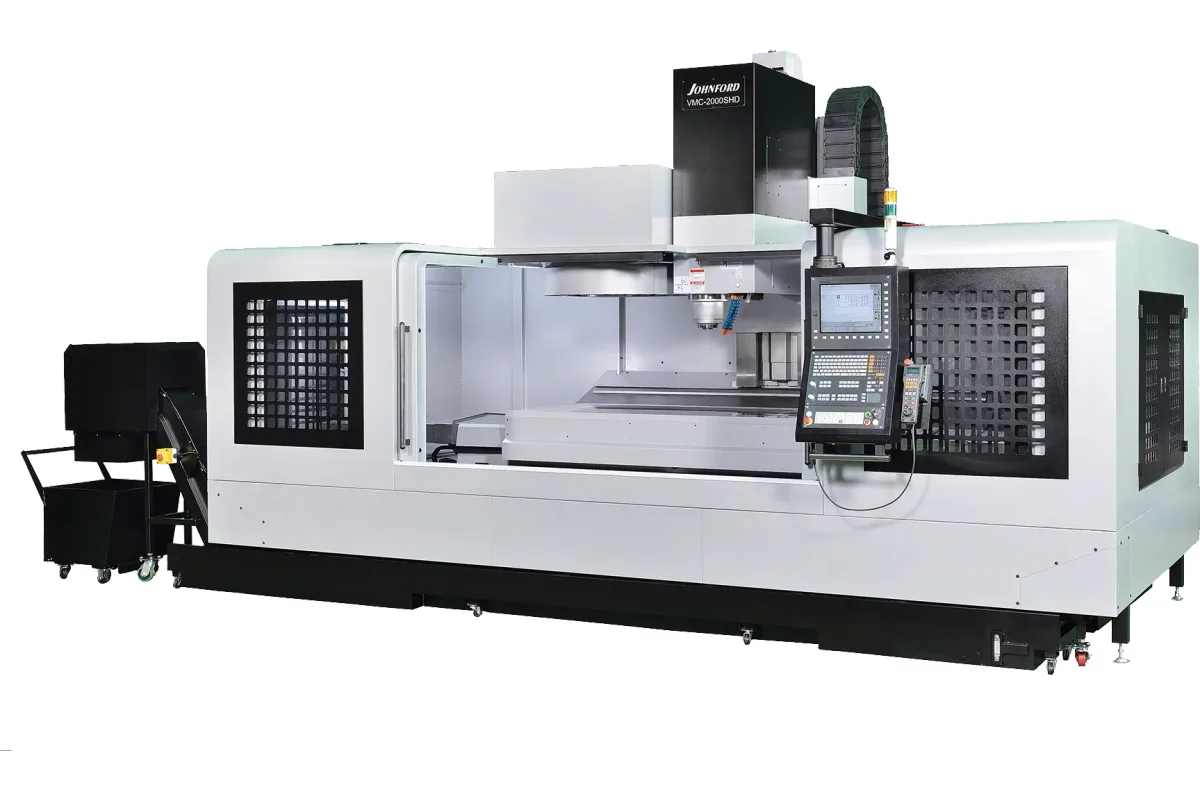

Johnford VMC-2000SHD
Image: johnford.com.tw, Johnford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Johnford VMC-2000SHD cost?
Price estimate
We do not have a price for the Johnford VMC-2000SHD that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Johnford VMC-2000SHD is a 20,000 kg (44,000 lb) vertical machining center with a BT-50 / CAT-50 spindle and 2,050 mm (80.7 in) of X travel. It is the heavy-cutting counterpart of the VMC-2000S, sharing that model's 2,200 x 1,000 mm (86.6 x 39.4 in) table, 1,100 mm (43.3 in) of Y and 800 mm (31.5 in) of Z.
What kind of work justifies it? Parts that are long, heavy and need metal removed in quantity: machine beds, mold frames, structural plates, large die shoes. The table takes 4,800 kg (10,560 lb), and the spindle delivers 15 / 18.5 kW (20.1 / 24.8 hp) through an automatic Hi-Lo gearbox at 10-4,500 rpm. The VMC-2000S, with the smaller BT-40 / CAT-40 head, has 7.5 / 11 kW (10.1 / 14.8 hp), which is the practical argument for the HD on a machine this large.
Feeds are conservative. Johnford lists rapid traverse of 15 / 15 / 12 m/min (591 / 591 / 472 ipm) and cutting feed of 1~8,000 mm/min, with Φ63 ball screws on X and Y and Φ50 on Z. For heavy milling those limits are rarely reached; they matter more for air-cutting time on a table over two metres long.
The 20-tool armless changer accepts tools to 15 kg (33 lb) and 400 mm (15.7 in). Since large cutters of 250 mm (9.8 in) need empty neighbours, a buyer running several of them should price the arm type magazines on the option list. The machine stands 3,695 mm (145.5 in) high on a 5,500 x 4,580 mm (216.5 x 180.3 in) plan.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 2,200 x 1,000 mm (86.6 x 39.4 in) |
| X Axis Travel | 2,050 mm (80.7 in) |
| Y Axis Travel | 1,100 mm (43.3 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| Distance Spindle Nose to Table | 150~950 mm (5.9~37.4 in) |
| Distance Spindle Center to Column | 1,150 mm (45.3 in) |
| Spindle Taper | BT-50 / CAT-50 |
| Spindle Diameter | 100 mm (3.9 in) |
| Spindle Speed | Auto Hi-Lo Gear; 10-4,500 rpm |
| Spindle Motor Power | 15 / 18.5 kW (20.1 / 24.8 hp) |
| Rapid Traverse Xyz | 15 / 15 / 12 m/min (591 / 591 / 472 ipm) |
| Cutting Feed Rate | 1~8,000 mm/min (0.04~315 ipm) |
| Tool Capacity | Armless 20; Arm type 24/32 (Opt.) |
| Max Tool Diameter Adjacent Pockets | 125 mm (5 in) |
| Max Tool Diameter (full magazine) | 250 mm (9.8 in) |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 15 kg (33 lb) |
| Max Table Load | 4,800 kg (10,560 lb) |
| Machine Weight | 20,000 kg (44,000 lb) |
| Machine Dimensions | 5,500 x 4,580 x 3,695 mm (216.5 x 180.3 x 145.5 in) |
| Ball Screw Diameter Xyz | Φ63,Φ63,Φ50 |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 15 / 18.5 kW (20.1 / 24.8 hp) geared 50-taper spindle on a 2,050 mm (80.7 in) X machine
- 20,000 kg (44,000 lb) of machine weight under the cut
- 4,800 kg (10,560 lb) table load
- Full 800 mm (31.5 in) of Z travel with the 50-taper head
- Φ63 ball screws on X and Y
Limitations
- Spindle speed limited to 4,500 rpm
- Cutting feed capped at 8,000 mm/min (315 ipm) and X-Y rapids at 15 m/min (591 ipm)
- Only 20 pockets in the standard armless changer
- Spindle center is 1,150 mm (45.3 in) from the column
Best For
Frequently Asked Questions
01
The spindle motor is 15 / 18.5 kW (20.1 / 24.8 hp), driving a BT-50 / CAT-50 spindle of 100 mm (3.9 in) diameter through an Auto Hi-Lo Gear at 10-4,500 rpm.
02
Travels, table, table load, weight and dimensions are identical. The VMC-2000S has a BT-40 / CAT-40 spindle at 80-8,000 rpm with 7.5 / 11 kW (10.1 / 14.8 hp), 24 tools and a 10 kg (22 lb) tool limit. The SHD has the 50-taper head, 20 tools and a 15 kg (33 lb) tool limit.
03
X 2,050 mm (80.7 in), Y 1,100 mm (43.3 in), Z 800 mm (31.5 in), with 150~950 mm (5.9~37.4 in) from spindle nose to table. The table is 2,200 x 1,000 mm (86.6 x 39.4 in).
04
The Large VMC option list includes 24, 32, 40 and 60-tool arm type changers, high pressure coolant through the spindle or tool tip at 20 bar, a 10,000 rpm HSK A100 built-in spindle, linear scales, a 4th-axis rotary table with tailstock, and Siemens or Fanuc 31i-MB PLUS controls.
