Johnford DMC-4100SH

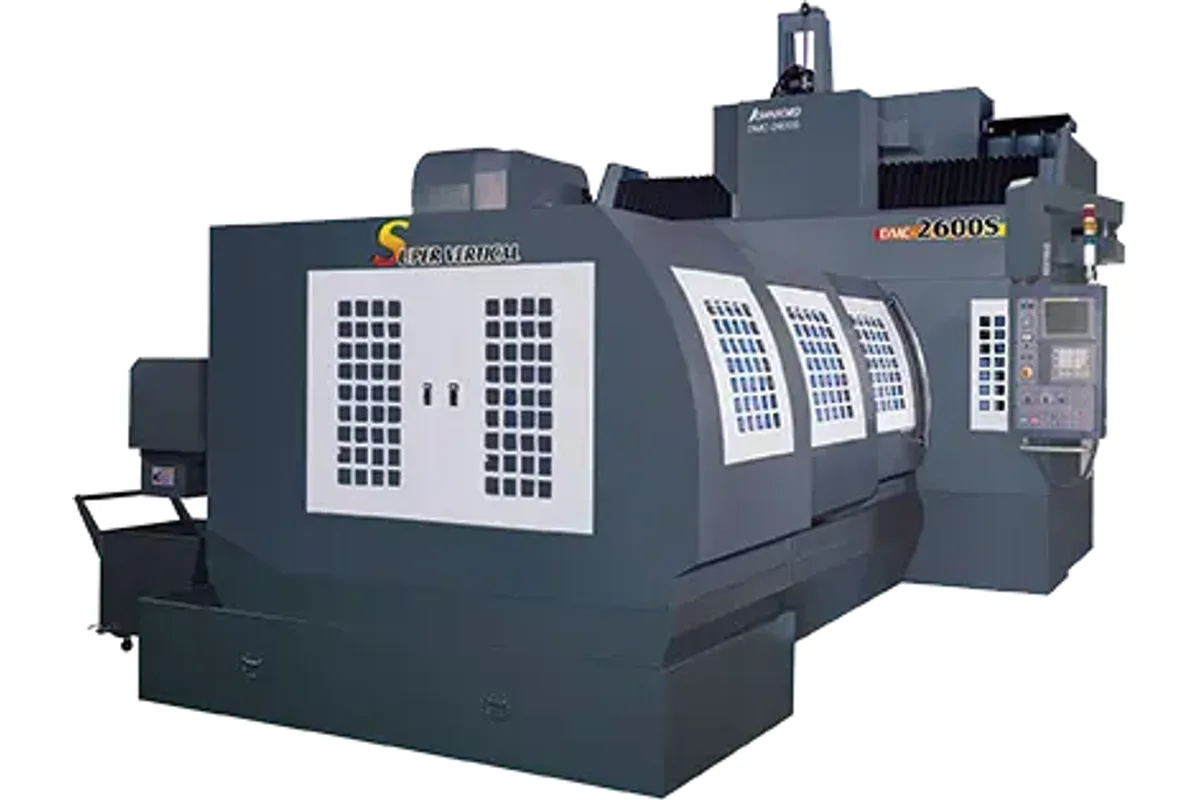

Image: johnford.com.tw, Johnford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
distance between columns
x axis travel
How much does the Johnford DMC-4100SH cost?
Price estimate
We do not have a price for the Johnford DMC-4100SH that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Johnford DMC-4100SH is a four-metre double column machining center with a No.50 geared spindle: 4,100 mm (161.4 in) in X, 1,778 mm (70 in) in Y, 800 mm (31.5 in) in Z. Johnford's narrower DMC frame offers a 4,100 mm machine only with the 40-taper spindle, the DMC-4100, so this is the smallest frame on which that length can be bought with BT-50 / CAT-50.
Mass is on its side. The machine weighs 37,500 kg (82,500 lb), and the spindle runs on a 90 mm (3.5 in) bearing behind a 22 / 26 kW (29.5 / 34.9 hp) motor and a Hi Lo Gear. With 6,000 rpm as the standard speed, the cutting it is laid out for is slow and heavy: slab milling of long bars, facing of weldments, boring with tools up to 400 mm (15.7 in) long.
Where does it run out? Width and load. Between columns there is 1,796 mm (70.7 in), and the table is rated 10,000 kg (22,000 lb). The DMC-4100PH answers both, with 2,400 mm (94.4 in) between columns and 13,000 kg (28,600 lb), at a weight of 42,200 kg (92,840 lb). A buyer with one wide or heavy part family should price both.
Chips from a 50-taper roughing cut on a four-metre table are a handling job of their own. Two screw type conveyors and a chain type conveyor with trolley are standard, and a scraper type conveyor with magnetic separator is on the options list.
Full Specifications
| Parameter | Value |
|---|---|
| Distance Between Columns | 1,796 mm (70.7 in) |
| Table Size | 4,200 x 1,500 mm (165.4 x 59 in) |
| X Axis Travel | 4,100 mm (161.4 in) |
| Y Axis Travel | 1,778 mm (70 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| Distance Spindle Nose to Table | 150~950 mm (5.9~37.4 in) |
| Spindle Taper | BT-50 / CAT-50; HSK A100(Opt.) |
| Spindle Bearing Diameter | 90 mm (3.5 in) |
| Spindle Speed | 6,000; 10,000 rpm |
| Spindle Motor Power | 22 / 26 kW (29.5 / 34.9 hp) Hi Lo Gear; 26 / 31 kW (34.9 / 41.6 hp) or 31 / 40 kW (41.6 / 53.6 hp) Built-in |
| Rapid Traverse Xyz | 12 / 12 / 12 m/min (472 / 472 / 472 ipm) |
| Cutting Feed Rate | 1~10,000 mm/min (0.04~394 ipm) |
| Max Tool Diameter Adjacent Pockets | Ø125 mm (Ø5 in) |
| Tool Capacity | Arm type 24 ; 32 / 40 (Opt.) |
| Max Tool Diameter (full magazine) | Ø200 mm (Ø7.8 in) |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 15 kg (33 lb) |
| Tool Selection | Bi-direction random type, Shortest path |
| Max Table Load | 10,000 kg (22,000 lb) |
| Machine Dimensions | 11,590 x 4,600 x 4,013 mm (456.3 x 181.1 x 158 in) |
| Machine Weight | 37,500 kg (82,500 lb) |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Smallest Johnford frame that pairs 4,100 mm (161.4 in) of X with a 50-taper spindle
- 22 / 26 kW (29.5 / 34.9 hp) Hi Lo Gear drive in a 37,500 kg (82,500 lb) machine
- Tool limits of Ø200 mm (Ø7.8 in), 400 mm (15.7 in) and 15 kg (33 lb)
- Two screw conveyors and one chain conveyor with trolley included
Limitations
- 10,000 kg (22,000 lb) table load on a 4,200 x 1,500 mm (165.4 x 59 in) table
- Geared spindle tops out at 6,000 rpm
- The DMC-4100PH offers 13,000 kg (28,600 lb) and 2,300 mm of Y for parts that outgrow this frame
- Machine height of 4,013 mm (158 in) and length of 11,590 mm (456.3 in)
Best For
Frequently Asked Questions
01
The DMC-4100 is a 40-taper machine with 1,300 mm (51.2 in) of Y, a 6,000 kg (13,200 lb) table and a weight of 30,100 kg (66,370 lb). The DMC-4100SH has a BT-50 / CAT-50 spindle, 1,778 mm (70 in) of Y, a 10,000 kg (22,000 lb) table and weighs 37,500 kg (82,500 lb).
02
X 4,100 mm (161.4 in), Y 1,778 mm (70 in), Z 800 mm (31.5 in). The table is 4,200 x 1,500 mm (165.4 x 59 in) and the spindle nose sits 150~950 mm (5.9~37.4 in) above it.
03
Yes. Built-in spindles of 26 / 31 kW (34.9 / 41.6 hp) or 31 / 40 kW (41.6 / 53.6 hp) run at 10,000 rpm, and HSK A100 is the optional taper named for the built-in unit.
04
24 in the standard arm type changer. The table lists 32 and 40 as options. With all pockets full a tool can be Ø125 mm (Ø5 in); leaving the neighbouring pockets empty raises that to Ø200 mm (Ø7.8 in).
