Schaublin 102 CNC

Est. $60,000 - $120,000 Possible older model Updated 2026-10-03

This model was not found in Schaublin Machines's current lineup when we checked on 2026-10-03 . It may be a superseded or older model; the specifications below are as we last recorded them.

Key Specifications

X Travel

160 mm (6.3 in)

Z Travel

400 mm (15.7 in)

Max Spindle

4,000 RPM

Spindle Power

7.5 kW (10 hp)

Accuracy

±0.003 mm

Repeatability

±0.001 mm

How much does the Schaublin 102 CNC cost?

Estimated price range

Est.$60,000 - $120,000

Our best estimate for a cnc lathes / turning center in this class — not a quote from Schaublin Machines. Configuration moves it a long way.

Overview

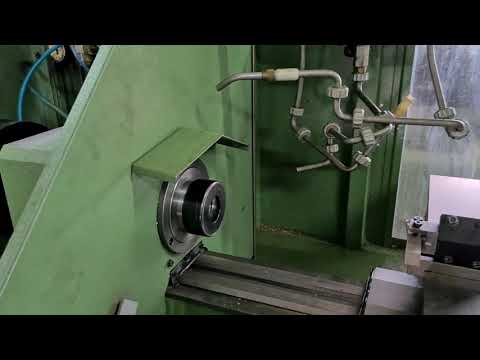

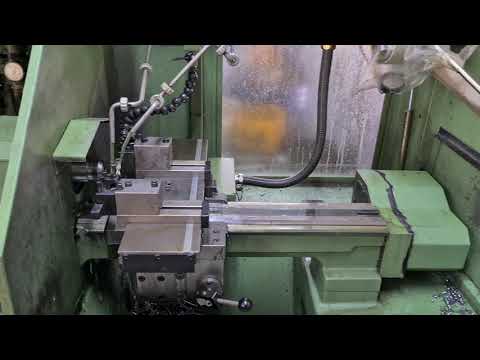

The Schaublin 102 CNC is a small collet lathe for precision work, listed with W25 collet workholding, a 4,000 RPM spindle with runout below 1 µm, and travels of 160 mm (6.3 in) in X and 400 mm (15.7 in) in Z. Schaublin's current lineup does not include it. The listed figures have no maker document behind them and should be treated as unconfirmed.

Size is the defining limit. Maximum workpiece diameter is 90 mm (3.5 in) over the cross-slide, and the machine weighs 950 kg (2,094 lb), so this is a lathe for small turned parts and second operations. Standard workholding is the W25 Schaublin collet; a chuck adapter is optional, as is a precision tailstock with an MT3 taper.

Listed positioning accuracy is ±0.003 mm with ±0.001 mm repeatability. Spindle power is 7.5 kW (10 hp), and tools sit in an 8-station VDI turret. No live tooling row appears in the table, so plan on turning operations only unless the machine in front of you shows otherwise.

Services are light: 400 VAC 3-phase 50 Hz at 16 A, and an 80 L (21 gal) coolant tank. The control is listed as Fanuc 0i-TF or Siemens 828D depending on configuration. One row should be read with caution: the spindle bore entry pairs a large bore figure with the W25 collet system, and the two do not fit together, so measure the through-hole instead of relying on it.

Full Specifications

Parameter	Value
Spindle Bore	102 mm (W25 Schaublin collet system)
Max Spindle Speed	4,000 RPM
Spindle Runout	< 1 µm (precision Schaublin standard)
Spindle Motor Power	7.5 kW (10 hp)
X-Axis Travel	160 mm (6.3 in)
Z-Axis Travel	400 mm (15.7 in)
Workpiece Diameter Max	90 mm (3.5 in) over cross-slide
Positioning Accuracy	±0.003 mm
Repeatability	±0.001 mm
Workholding	W25 Schaublin collet (standard); chuck adapter optional
Tailstock	Precision tailstock with MT3 taper (optional)
Turret	8-station VDI turret
Machine Weight	950 kg (2,094 lb)
CNC Control	Fanuc 0i-TF or Siemens 828D (configuration dependent)
Coolant Capacity	80 L (21 gal)
Electrical	400 VAC 3-phase 50 Hz, 16 A

Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.

Strengths & Limitations

Strengths

Spindle runout listed below 1 µm
Positioning accuracy of ±0.003 mm with ±0.001 mm repeatability
W25 Schaublin collet as standard workholding, with a chuck adapter available as an option
Light and small: 950 kg (2,094 lb) and a 400 VAC 3-phase 50 Hz, 16 A supply
8-station VDI turret on a 7.5 kW (10 hp) spindle

Limitations

Maximum workpiece diameter is 90 mm (3.5 in) over the cross-slide
The tailstock and the chuck adapter are both listed as optional, so a given machine may have neither
No live tooling, C-axis or sub-spindle row appears in the table
The spindle bore row conflicts with the W25 collet system and cannot be relied on
Not in Schaublin's current lineup, and the listed figures are unconfirmed

Best For

Small precision parts held in W25 collets Second-operation turning that needs ±0.001 mm repeatability Short runs of parts under 90 mm (3.5 in) in diameter Toolrooms with limited floor loading and a 16 A supply

Frequently Asked Questions

01 What size parts does the Schaublin 102 CNC handle?

Maximum workpiece diameter is listed as 90 mm (3.5 in) over the cross-slide. X travel is 160 mm (6.3 in) and Z travel is 400 mm (15.7 in). Workholding is a W25 Schaublin collet as standard, with a chuck adapter as an option, so the collet range sets the practical bar size.

02 How accurate is the 102 CNC?

The listed figures are ±0.003 mm positioning accuracy, ±0.001 mm repeatability and spindle runout below 1 µm. None of these has been confirmed against a maker document, and on an older machine they depend on condition, so ask for a recent test cut or inspection report.

03 Does the 102 CNC come with a tailstock?

Not necessarily. The table lists a precision tailstock with an MT3 taper as optional. The chuck adapter is optional too. Check both on the machine if you need to support long parts or hold work that will not fit a collet.

04 Which control and electrical supply does it use?

The control is listed as Fanuc 0i-TF or Siemens 828D, depending on configuration. Electrical supply is 400 VAC 3-phase 50 Hz at 16 A. Spindle power is 7.5 kW (10 hp), top speed is 4,000 RPM, and coolant capacity is 80 L (21 gal).
