Johnford DMC-4000x2800-5F

Q: How much does the Johnford DMC-4000x2800-5F cost?

The price estimate for the Johnford DMC-4000x2800-5F is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/johnford-dmc-4000x2800-5f#price; the request is passed to Johnford or an authorised dealer.

Specs verified 2026-10-04 · johnford.com.tw Updated 2026-10-04

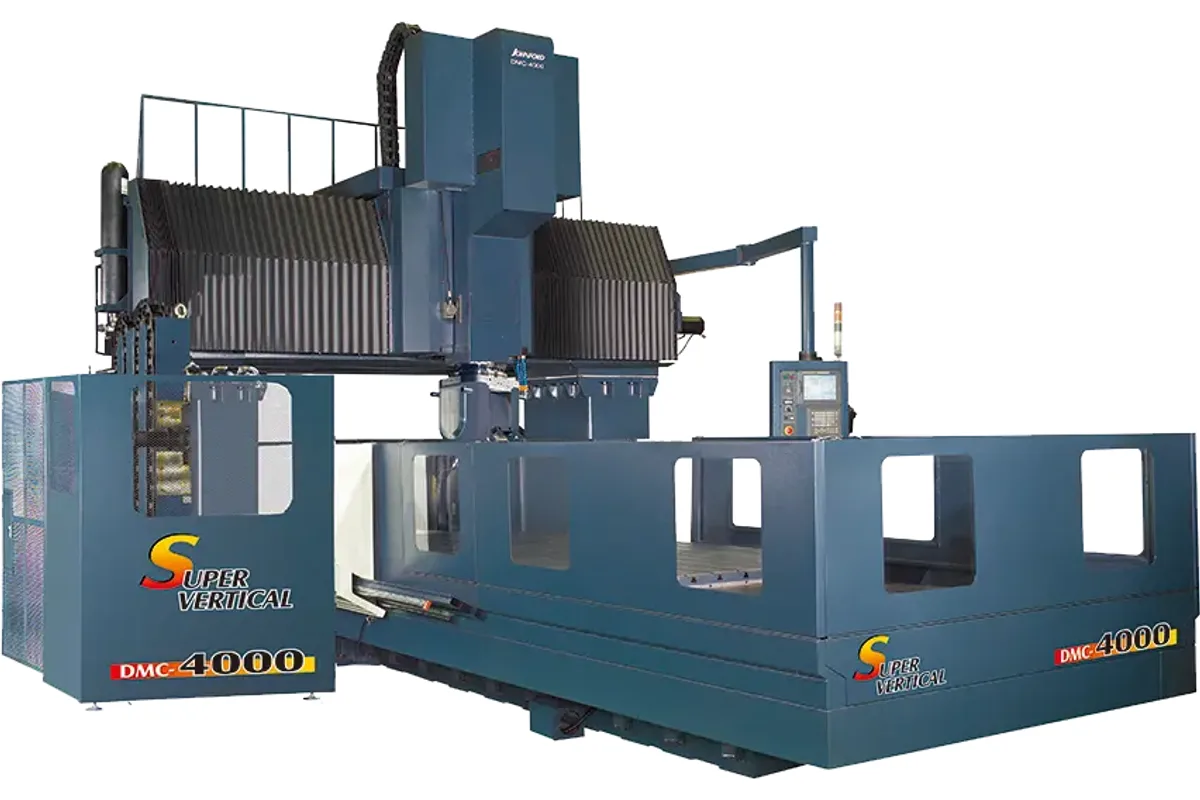

Johnford Large DMC series (the picture the maker shows for Large DMC; a DMC-4000 with 5-axis head)

Image: johnford.com.tw, Johnford

Key Specifications

Spindle Taper

BT-50 / CAT-50

Tool Capacity

40 tools Std. (60, 80, 120 Opt.); Vertical & Horizontal tool change

Table Size

4,200 x 2,200 mm (165.3 x 86.6 in)

Spindle Power

22 / 26 kW (29.5 / 34.9 hp)

distance between columns

2,800 mm (110.2 in)

x axis travel

4,000 mm (157.4 in)

How much does the Johnford DMC-4000x2800-5F cost?

Price estimate

Uncertain

We do not have a price for the Johnford DMC-4000x2800-5F that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Five sides of a part in one clamping is what the Johnford DMC-4000x2800-5F is built for. Its spindle works vertically at 10~6,000 rpm and horizontally at 10~2,000 rpm, and the tool changer serves both positions: the table lists vertical and horizontal tool change.

Travels are 4,000 mm (157.4 in) in X, 3,600 mm (141.7 in) in Y and 1,066 mm (42 in) in Z. The Y stroke is longer than the 2,800 mm (110.2 in) between the columns because the head has to travel past the edges of the part to reach its sides. For the same reason the spindle nose starts higher, 420~1,486 mm (16.5~58.5 in) above the table.

Drive and tooling are the heavy set. A 22 / 26 kW (29.5 / 34.9 hp) motor, BT-50 / CAT-50 taper, Ø90 mm (Ø3.5 in) spindle diameter, tools to 20 kg (44 lb). The low horizontal speed tells you what the side spindle is for: face milling, drilling and boring on the flanks of gearbox housings, machine frames and engine blocks, not high-speed contouring.

Six-sided castings up to 20,000 kg (44,000 lb) can sit on the 4,200 x 2,200 mm (165.3 x 86.6 in) table. Remember the part must leave room around it for the head in the horizontal position, so the usable part size is smaller than the table.

At 7,400 mm (291.3 in) this is the widest Large DMC model, and it weighs 68,000 kg (149,600 lb).

Full Specifications

Parameter	Value
Distance Between Columns	2,800 mm (110.2 in)
Table Size	4,200 x 2,200 mm (165.3 x 86.6 in)
X Axis Travel	4,000 mm (157.4 in)
Y Axis Travel	3,600 mm (141.7 in)
Z Axis Travel	1,066 mm (42 in)
W Axis Travel	1,000~2,500 mm (39.4~98.4 in)
Distance Spindle Nose to Table	420~1,486 mm (16.5~58.5 in)
Spindle Taper	BT-50 / CAT-50
Spindle Diameter	Ø90 mm (Ø3.5 in)
Spindle Speed	10~6,000 rpm (Vertical); 10~2,000 rpm (Horizontal)
Spindle Motor Power	22 / 26 kW (29.5 / 34.9 hp)
Rapid Traverse Xyz	12 / 12 / 10 m/min (472 / 472 / 394 ipm)
Cutting Feed Rate	1~10,000 mm/min (0.04~394 ipm)
Max Tool Diameter Adjacent Pockets	Ø125 mm (Ø4.9 in)
Tool Capacity	40 tools Std. (60, 80, 120 Opt.); Vertical & Horizontal tool change
Max Tool Diameter (full magazine)	Ø200 mm (Ø7.8 in)
Max Tool Length	400 mm (15.7 in)
Max Tool Weight	20 kg (44 lb)
Tool Selection	Bi-direction random type, Shortest path
Max Table Load	20,000 kg (44,000 lb)
Machine Length	10,900 mm (429 in)
Machine Width	7,400 mm (291.3 in)
Machine Height	5,920 mm (233.1 in)
Machine Weight	68,000 kg (149,600 lb)

Specifications sourced from johnford.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

Vertical and horizontal spindle positions with automatic tool change in both
3,600 mm (141.7 in) of Y travel to reach both sides of a part
22 / 26 kW (29.5 / 34.9 hp) BT-50 / CAT-50 spindle
20,000 kg (44,000 lb) table load
1,066 mm (42 in) of Z travel

Limitations

Horizontal spindle speed is limited to 2,000 rpm
Minimum spindle nose height of 420 mm (16.5 in) above the table
Widest of the group at 7,400 mm (291.3 in)
Semi-enclosure as standard

Best For

Gearbox housings and machine frames machined on five sides Large castings up to 20,000 kg (44,000 lb) in one clamping Side drilling, facing and boring on big prismatic parts

Frequently Asked Questions

01 What does 5F mean on the DMC-4000x2800-5F?

The table for this model gives separate vertical and horizontal spindle speeds, 10~6,000 rpm and 10~2,000 rpm, and vertical and horizontal tool change, which is five-face machining: the top and four sides of a part in one setup.

02 Why is Y travel on the DMC-4000x2800-5F longer than the distance between columns?

The maker's table lists 3,600 mm (141.7 in) of Y travel and 2,800 mm (110.2 in) between columns. The base DMC-4000x2800x800 has 2,800 mm (110.2 in) of Y. The page gives no reason; the extra stroke is consistent with a head that must move beyond the part to machine its sides.

03 What is the spindle power of the DMC-4000x2800-5F?

22 / 26 kW (29.5 / 34.9 hp), with BT-50 / CAT-50 tooling and a Ø90 mm (Ø3.5 in) spindle diameter. Tools may be up to Ø200 mm (Ø7.8 in), 400 mm (15.7 in) long and 20 kg (44 lb).

04 How big and heavy is the DMC-4000x2800-5F?

10,900 mm (429 in) long, 7,400 mm (291.3 in) wide and 5,920 mm (233.1 in) high, with a weight of 68,000 kg (149,600 lb). That is the same weight as the DMC-4000x2800-R2-AC5.
