Johnford DMC-4000x2800-R2-AC4

Q: How much does the Johnford DMC-4000x2800-R2-AC4 cost?

The price estimate for the Johnford DMC-4000x2800-R2-AC4 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/johnford-dmc-4000x2800-r2-ac4#price; the request is passed to Johnford or an authorised dealer.

Specs verified 2026-10-04 · johnford.com.tw Updated 2026-10-04

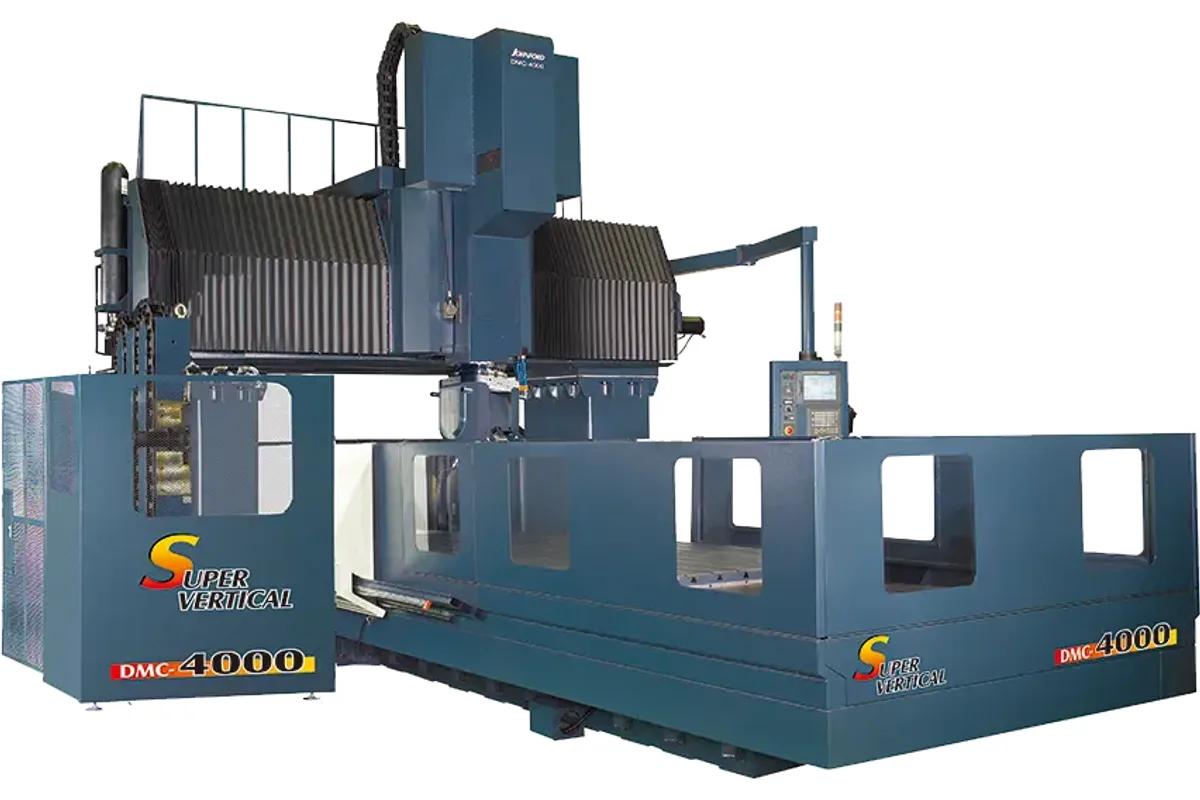

Johnford Large DMC series (the picture the maker shows for Large DMC; a DMC-4000 with 5-axis head)

Image: johnford.com.tw, Johnford

Key Specifications

Spindle Taper

AC41:No.40; AC42:HSK A63

Tool Capacity

40 tools Std. (60, 80, 120 Opt.)

Table Size

4,200 x 2,200 mm (165.3 x 86.6 in)

Spindle Power

21 / 24 kW (28.2 / 32.2 hp)

distance between columns

2,800 mm (110.2 in)

x axis travel

4,000 mm (157.4 in)

How much does the Johnford DMC-4000x2800-R2-AC4 cost?

Price estimate

Uncertain

We do not have a price for the Johnford DMC-4000x2800-R2-AC4 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Among the Large DMC models, the Johnford DMC-4000x2800-R2-AC4 is the high-speed one. Its head carries a spindle that runs from 50 to 20,000 rpm with 21 / 24 kW (28.2 / 32.2 hp), on a machine with 4,000 mm (157.4 in) of X, 3,600 mm (141.7 in) of Y and 1,066 mm (42 in) of Z.

The maker's table gives two taper codes for it, AC41 with a No.40 taper and AC42 with HSK A63. Both are small-taper, high-speed interfaces, and the tool limits follow: Ø100 mm (Ø3.9 in) maximum diameter, 320 mm (12.6 in) length, 10 kg (22 lb). The page does not print the swivel ranges of the head, so the angular reach has to come from Johnford's quotation.

Put those figures on a 4,200 x 2,200 mm (165.3 x 86.6 in) table rated 20,000 kg (44,000 lb) and the intended work is clear enough. Large moulds, stamping dies for body panels, and models or patterns need long finishing passes with ball-nose tools at high rpm over a big, heavy block.

Head clearance costs height. The spindle nose can stand 150~1,216 mm (5.9~47.9 in) above the table and the machine is 6,280 mm (247.2 in) tall, against 4,550 mm (180 in) for the DMC-4000x2800x800. Weight is 65,000 kg (143,000 lb). For the same frame with a No.50 or HSK A100 spindle and 31 / 40 kW (41.6 / 53.6 hp), Johnford lists the DMC-4000x2800-R2-AC5.

Full Specifications

Parameter	Value
Distance Between Columns	2,800 mm (110.2 in)
Table Size	4,200 x 2,200 mm (165.3 x 86.6 in)
X Axis Travel	4,000 mm (157.4 in)
Y Axis Travel	3,600 mm (141.7 in)
Z Axis Travel	1,066 mm (42 in)
W Axis Travel	1,000~2,500 mm (39.4~98.4 in)
Distance Spindle Nose to Table	150~1,216 mm (5.9~47.9 in)
Spindle Taper	AC41:No.40; AC42:HSK A63
Spindle Speed	50~20,000 rpm
Spindle Motor Power	21 / 24 kW (28.2 / 32.2 hp)
Rapid Traverse Xyz	12 / 12 / 10 m/min (472 / 472 / 394 ipm)
Cutting Feed Rate	1~10,000 mm/min (0.04~394 ipm)
Max Tool Diameter Adjacent Pockets	Ø75 mm (Ø3 in)
Tool Capacity	40 tools Std. (60, 80, 120 Opt.)
Max Tool Diameter (full magazine)	Ø100 mm (Ø3.9 in)
Max Tool Length	320 mm (12.6 in)
Max Tool Weight	10 kg (22 lb)
Tool Selection	Bi-direction random type, Shortest path
Max Table Load	20,000 kg (44,000 lb)
Machine Length	10,900 mm (429 in)
Machine Width	6,500 mm (256 in)
Machine Height	6,280 mm (247.2 in)
Machine Weight	65,000 kg (143,000 lb)

Specifications sourced from johnford.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

Spindle speed range of 50~20,000 rpm with 21 / 24 kW (28.2 / 32.2 hp)
3,600 mm (141.7 in) of Y and 1,066 mm (42 in) of Z travel
20,000 kg (44,000 lb) table load under a high-speed head
Choice of No.40 (AC41) or HSK A63 (AC42) spindle taper

Limitations

Tools limited to 10 kg (22 lb) and Ø75 mm (Ø3 in) with adjacent pockets filled
Machine height of 6,280 mm (247.2 in)
The maker's page gives no swivel ranges for the head
Semi-enclosure as standard, and Z rapid of 10 m/min (394 ipm)

Best For

Finishing large moulds and body-panel dies at high spindle speed Patterns, models and composite tooling up to 4,000 mm long Heavy blocks up to 20,000 kg (44,000 lb) that need small-tool finishing

Frequently Asked Questions

01 What spindle does the DMC-4000x2800-R2-AC4 have?

A 50~20,000 rpm spindle rated 21 / 24 kW (28.2 / 32.2 hp). The taper is No.40 in the AC41 version and HSK A63 in the AC42 version, as coded in the maker's table.

02 What is the difference between the DMC-4000x2800-R2-AC4 and the DMC-4000x2800-R2-AC5?

The DMC-4000x2800-R2-AC5 has a No.50 or HSK A100 spindle at 50~10,000 rpm with 31 / 40 kW (41.6 / 53.6 hp), 20 kg (44 lb) tools and a weight of 68,000 kg (149,600 lb). The DMC-4000x2800-R2-AC4 runs to 20,000 rpm with 21 / 24 kW (28.2 / 32.2 hp), takes 10 kg (22 lb) tools and weighs 65,000 kg (143,000 lb).

03 How large is the working envelope of the DMC-4000x2800-R2-AC4?

X 4,000 mm (157.4 in), Y 3,600 mm (141.7 in), Z 1,066 mm (42 in), over a 4,200 x 2,200 mm (165.3 x 86.6 in) table. The distance between columns is 2,800 mm (110.2 in), so the Y travel is longer than the opening between the columns.

04 What probing and coolant options are listed for the DMC-4000x2800-R2-AC4?

Renishaw TS-27R tool touch probe, Renishaw NC4 laser tool probe and Renishaw OMP60 workpiece probe are optional, as is high pressure coolant through the spindle or tool tip at 20 bar. The standard coolant is an external 2 bar supply with spindle nozzles.
