ITM UFGG
Image: floridagrinding.com, ITM
Key Specifications
Rapid Traverse
Spindle Power
Max Workpiece ⌀
min workpiece diameter
max grinding length
max workpiece length
How much does the ITM UFGG cost?
Price estimate
We do not have a price for the ITM UFGG that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

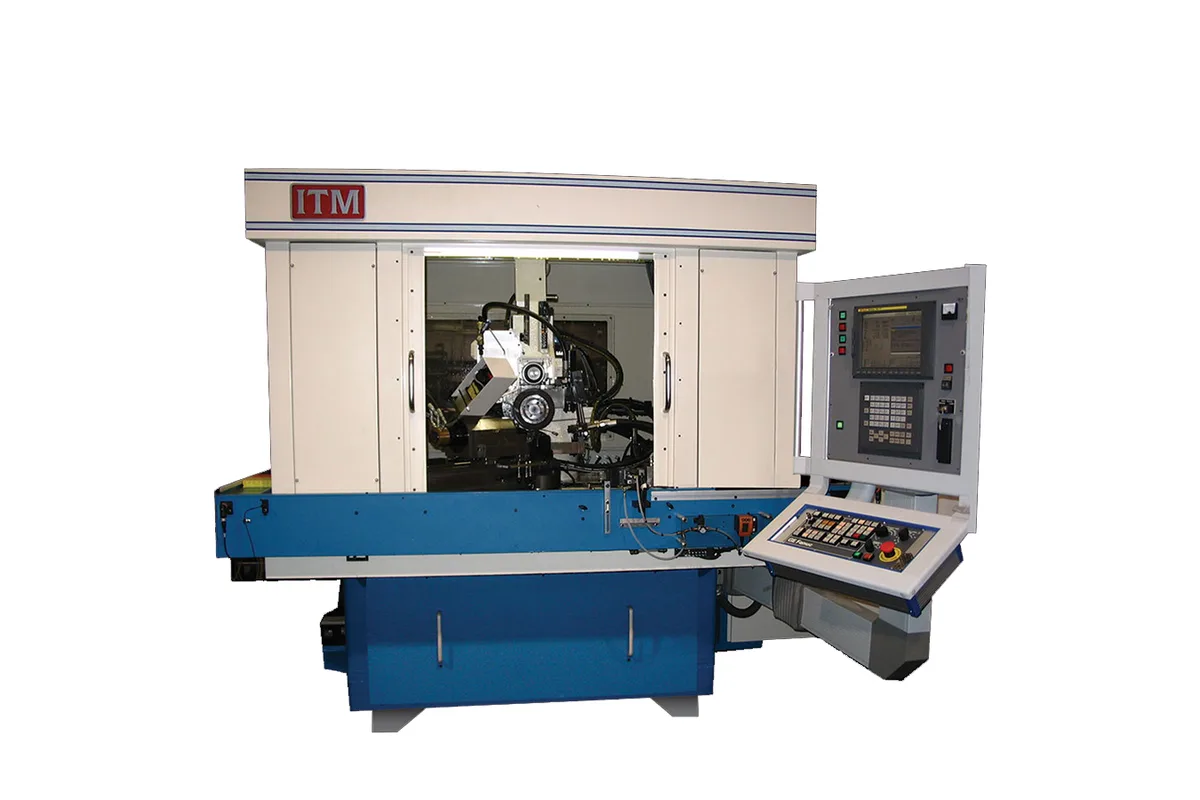

The ITM UFGG is a CNC flute and gunnose grinder that carries two wheels in one setup: wheel #1 for fluting and wheel #2 for the gunnose or chamfer. It takes tools from 0.2 mm (0.008 in) to 50 mm (2 in) in diameter, with a maximum grinding length of 250 mm (10 in) and an overall length of 300 mm (12 in).
The helix is set by turning the work, not the wheel. A CNC rotary table swivels from -45° to +52°; the workhead is the A axis, the rotary table the U axis, and the cross slide, longitudinal slide and column are X, Y and Z. Spiral flutes are generated by interpolating X, Y and Z while the A axis rotates. For straight flutes the U axis stays at zero and the A axis only indexes.
An integrated CNC dresser runs on two further axes, V and W, and the machine can load the next blank while the wheel is being dressed. ITM counts 7 CNC controlled axes on the machine, plus a 2-axis CNC loader or a 6-axis Fanuc robot. The linear axes move in increments of 0.00004 in with a rapid traverse of up to 98.4 in/min, and the A and U axes resolve 0.001°.
It is a heavy machine, at 10,230 kg (22,500 lbs) on a floor area of 2,690 mm (106 in) by 2,840 mm (112 in). The motor-spindles are rated up to 40 HP (29.8 kW) with HSK quick change tooling, wheels are 200 mm – 250 mm (8 in – 10 in) and wheel speed goes up to 100 m/s. Control is by Fanuc CNC with a built-in PC.
Full Specifications
| Parameter | Value |
|---|---|
| Min Workpiece Diameter | 0.2 mm (0.008 in) |
| Max Workpiece Diameter | 50 mm (2 in) |
| Max Grinding Length | 250 mm (10 in) |
| Max Workpiece Length | 300 mm (12 in) OAL |
| Wheel Size | 200 mm – 250 mm (8 in – 10 in) fluting |
| Wheel Speed | up to 100 m/s (20,000 sfm) |
| Wheel Capacity | 1 or 2 wheels in one setup (wheel #1 for fluting, wheel #2 for grinding gunnose or chamfer) |
| Abrasives | Diamond, CBN or conventional abrasives |
| Rotary Table Swivel | -45° to +52° (CNC) |
| Spindle Motor Power | up to 40 HP (29.8 kW) |
| Axes | 7 CNC controlled axes plus a 2 axes CNC loader or 6 axes Fanuc robot loader |
| Min Programmable Increment | 0.00004 in (0.001 mm), X, Y and Z axes |
| Rapid Traverse Rate | up to 98.4 in/min (2,499 mm/min), X, Y and Z axes |
| Rotary Axis Resolution | 0.001° (A and U axes) |
| CNC Control | Fanuc controls with built-in PC |
| Machine Width | 2,690 mm (106 in) |
| Machine Depth | 2,840 mm (112 in) |
| Machine Height | 2,790 mm (110 in) |
| Machine Weight | 10,230 kg (22,500 lbs) |
Specifications sourced from floridagrinding.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Two wheels in one setup: flutes and then gunnose or chamfer are ground in one clamping
- Integrated CNC dresser on its own V and W axes, with loading while dressing
- Handles diameters from 0.2 mm (0.008 in) to 50 mm (2 in)
- Motor-spindles up to 40 HP (29.8 kW) with HSK quick change tooling
- Rotary table swivels from -45° to +52° for spiral flutes of either hand
Limitations
- At 10,230 kg (22,500 lbs) it weighs about twice the 5,000 kg (11,000 lbs) of the UFG
- Maximum grinding length is 250 mm (10 in) within a 300 mm (12 in) overall length
- Dressing is only possible for standard and CBN wheels, as ITM notes
- Rapid traverse on the linear axes is up to 98.4 in/min
Best For
Frequently Asked Questions
01
The UFGG adds a second wheel and an integrated CNC dresser. It can grind the flutes and then the gunnose or chamfer in one clamping, and it sets the helix with a rotary table that swivels from -45° to +52°. The UFG swivels its wheel head from -60° to +60° instead and weighs 5,000 kg (11,000 lbs), against 10,230 kg (22,500 lbs) for the UFGG.
02
Diameters from 0.2 mm (0.008 in) to 50 mm (2 in). Maximum grinding length is 250 mm (10 in) and maximum overall length is 300 mm (12 in). Fluting wheels are 200 mm – 250 mm (8 in – 10 in) in diameter.
03
The product page counts 7 CNC controlled axes: A for the workhead, U for the rotary table, X, Y and Z, and V and W for the in-process dresser. A 2-axis CNC loader or a 6-axis Fanuc robot loader comes on top. ITM's home page describes the machine as having 9 or 13 CNC axes, which is the same count with one loader or the other.
04
ITM states that setup time is usually 25 minutes or less, and its feature list gives 15 minutes as typical. Absolute encoders on all axes remove homing after power-up, and wheels are mounted on HSK quick change tooling. Loading the next blank while the wheel is dressed shortens the cycle as well.
