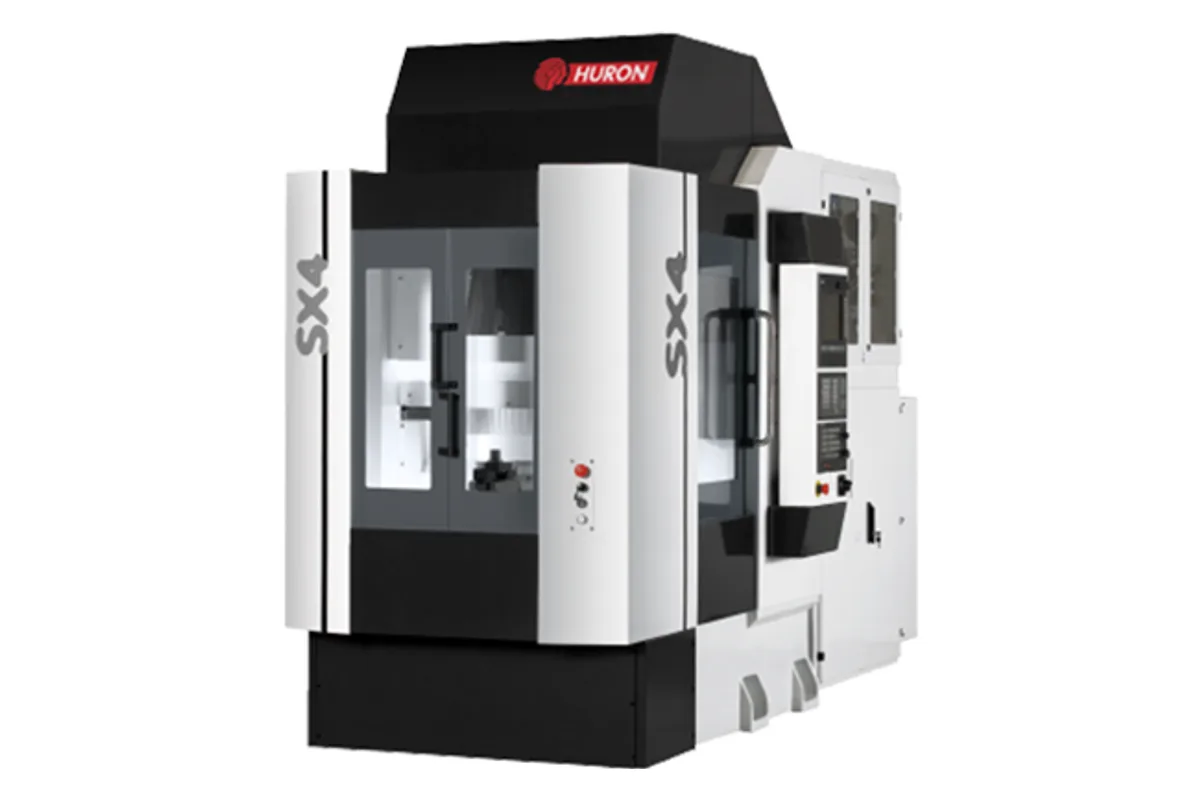

Huron SX 4
Image: huron.fr, Huron
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Spindle Power
Accuracy
Repeatability
How much does the Huron SX 4 cost?
Price estimate
We do not have a price for the Huron SX 4 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Huron SX 4 is a compact column-travelling machining centre with an integral twin-pallet changer, made for short-cycle production of small parts. Travels are 400 x 300 x 300 mm (15.7 x 11.8 x 11.8 in), rapids are 50 m/min on all axes, and the 12,000 rpm spindle uses an HSK 50-A taper.
Huron's concept is a fixed base with a travelling column. Every axis movement is on the tool, and the table does not move. Two pallets of 550 x 300 mm, each rated for 125 kg (276 lb), swap between the work zone and the loading station, so the operator loads one while the other is cut.
The spindle is a liquid-chilled electrospindle rated 13.5 / 13.5 kW and 45 / 64 Nm (S1 / S6). Huron stresses how quickly it accelerates, which matters on parts where the spindle starts and stops for every tool. The magazine holds 16 tools up to 250 mm long and 3 kg.
Positioning is stated as 0.010 mm and repeatability as 0.005 mm. The spindle nose stands 150 to 450 mm from the pallet centre, and the pallet surface is 900 mm above the floor. Huron also lists a swivelling control panel, a rear chip conveyor and provision for interfacing as an in-line machine.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 400 mm (15.7 in) |
| Y Axis Travel | 300 mm (11.8 in) |
| Z Axis Travel | 300 mm (11.8 in) |
| Rapid Traverse Xyz | X / Y / Z: 50 m/min |
| Pallet Count | 2 |
| Pallet Size | 550 x 300 mm (21.7 x 11.8 in) |
| Max Pallet Load | 125 kg (276 lb) |
| Pallet Height From Floor | 900 mm (35.4 in) |
| Distance Spindle Nose to Pallet Centre | 150 - 450 mm (5.9 - 17.7 in) |
| Max Spindle Speed | 12,000 rpm |
| Spindle Taper | HSK 50-A |
| Spindle Motor Power | 13.5 / 13.5 kW (18.1 / 18.1 hp) (S1 / S6) |
| Spindle Torque | 45 / 64 Nm (33.2 / 47.2 lb-ft) (S1 / S6) |
| Tool Capacity | 16 |
| Max Tool Diameter (full magazine) | 80 / 100 mm (3.1 / 3.9 in) |
| Max Tool Weight | 3 kg (7 lb) |
| Max Tool Length | 250 mm (9.8 in) |
| Positioning Accuracy | X / Y / Z: 0.010 mm (0.0004 in) |
| Repeatability | X / Y / Z: 0.005 mm (0.0002 in) |
Specifications sourced from huron.fr — verified 2026-10-04
Strengths & Limitations
Strengths
- Two pallets with an integral automatic changer
- 50 m/min rapids with all axis motion on the tool side
- 12,000 rpm liquid-chilled electrospindle on HSK 50-A
- Prepared for in-line interfacing, per Huron's feature list
- Repeatability of 0.005 mm
Limitations
- Pallet load is 125 kg (276 lb)
- Only 16 tools, each limited to 3 kg
- Travels of 400 x 300 x 300 mm suit small parts only
- Huron's published table does not give weight or footprint in a consistent number format
Best For
Frequently Asked Questions
01
The machine has 2 pallets of 550 x 300 mm (21.7 x 11.8 in), each with a maximum load of 125 kg (276 lb). Huron describes an integral automatic workpiece changer, so loading and unloading take place while the other pallet is in the cut.
02
400 mm in X, 300 mm in Y and 300 mm in Z, with rapids of 50 m/min on each axis. The distance from spindle nose to pallet centre ranges from 150 to 450 mm.
03
An electrospindle with a maximum of 12,000 rpm and an HSK 50-A taper, cooled by a liquid chiller. Power is 13.5 / 13.5 kW and torque 45 / 64 Nm, given as S1 / S6 values.
04
The SX 6 is larger: 500 x 400 x 400 mm travels and pallets of 650 x 400 mm rated for 300 kg. Spindle, rapids and the 16-tool magazine are the same. The SX 4 carries tighter accuracy figures, 0.010 mm positioning against 0.020 mm for the SX 6.
