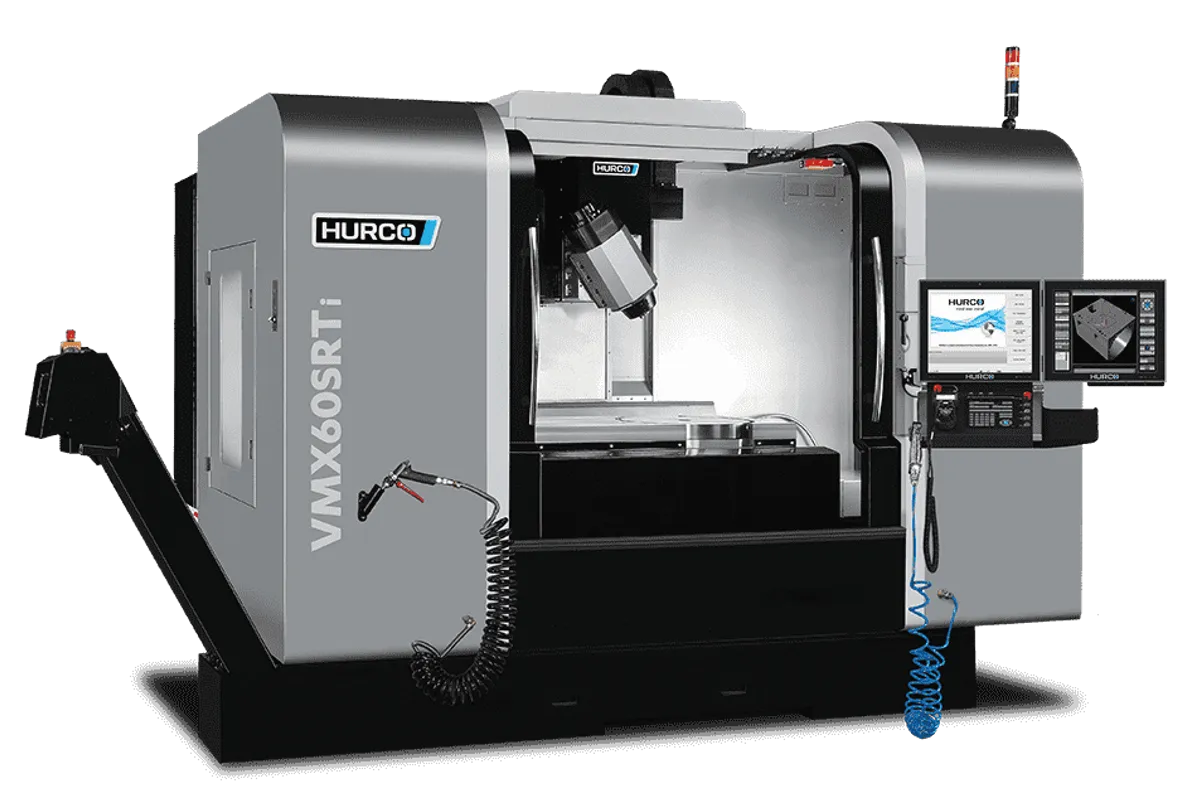

Hurco VMX60SRTi
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
Overview
The Hurco VMX60SRTi is the largest swivel-head rotary table 5-axis in Hurco's lineup, combining 60 inches of X travel with a B/C swivel-head rotary table configuration built for heavy, oversized parts. When parts are too big or too heavy for trunnion-style 5-axis machines, this is where Hurco sends you.
Travels are 1,524 x 660 x 610 mm (60 x 26 x 24 in) with a fixed table of 1,676 x 660 mm (66 x 26 in) rated for 1,360 kg (3,000 lb). The integrated 599 mm (23.6 in) rotary table handles 500 kg (1,100 lb) of rotating load. B-axis swivels +/-92 degrees, C-axis rotates 360 degrees. That's a massive work envelope for 5-axis machining — few competitors offer this combination of travel and table load at this price point.
The spindle runs 12,000 RPM through a CAT 40 / Big Plus taper, delivering 36.5 kW (48 hp) of peak power with 118 Nm (87 ft-lbs) of torque at 2,900 RPM. This is the most powerful spindle in Hurco's SRT lineup, reflecting the larger cuts this machine can take on bigger workpieces. The 40-tool ATC keeps tooling loaded with 75 mm max diameter and 249 mm max length.
Rapids run 32 m/min (1,259 ipm) on X/Y and 24 m/min (945 ipm) on Z. Rotary axis rapids are fast: B-axis at 90 RPM and C-axis at 100 RPM, enabling quick repositioning during indexed operations. WinMax control handles everything from conversational programming to full simultaneous 5-axis from CAM.
At 10,900 kg (23,980 lb), this is a heavy machine requiring a proper reinforced foundation. Floor space is 5,662 x 3,921 mm (223 x 154 in) and power draw is 70 KVA. The machine's mass provides excellent vibration damping for heavy cuts on large parts.
New pricing runs $320,000-$420,000. This machine competes with the Mazak VARIAXIS i-700 and DMG MORI DMU 80 P in the large-format 5-axis market.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 1,524 mm (60 in) |
| Y-Axis Travel | 660 mm (26 in) |
| Z-Axis Travel | 610 mm (24 in) |
| B Axis Range | +/- 92° |
| C Axis Range | 360° |
| Max Spindle Speed | 12,000 RPM |
| Spindle Taper | CAT 40 / Big Plus |
| Spindle Motor Power | 48 hp (36.5 kW) |
| Spindle Torque | 87 ft lbs @ 2,900 rpm (118 Nm @ 2,900 rpm) |
| Tool Capacity | 40 |
| Table Size | 66 x 26 in (1,676 x 660 mm) |
| Rotary Table Diameter | 599 mm (23.6 in) |
| Max Table Load | 1,360 kg (3,000 lb) |
| Max Rotary Table Load | 500 kg (1,100 lb) |
| Rapid Traverse Xy | 32 m/min (1,259 ipm) |
| Rapid Traverse Z | 24 m/min (945 ipm) |
| Rotary Axis Rapid B | 90 RPM |
| Rotary Axis Rapid C | 100 RPM |
| Max Tool Diameter | 2.95 in (75 mm) |
| Max Tool Length | 9.8 in (249 mm) |
| Max Tool Weight | 15.4 lb (7 kg) |
| Machine Weight | 10,900 kg (23,980 lb) |
| Floor Space | 5,662 x 3,921 mm (223 x 154 in) |
| CNC Control | Hurco WinMax |
| Travels Capacityx Y Z Axis Travel | 60 x 26 x 24 in (1,524 x 660 x 610 mm) |
| B C Axis Travel | +/- 92°, 360° |
| Spindle Nose To Table | .5 / 24.5 in (13 / 622 mm) |
| Table Size C | 23.6 in diameter (599 mm diameter) |
| Max Weight On Table | 3,000 lbs (1,360 kg) |
| Max Weight On Rotary Trunnion Table | 1,100 lbs (500 kg) |
| T Slot Size | 5 x .71 in (5 x 18 mm) |
| Spindlemax Spindle Speed | 12,000 rpm |
| Tool Changertool Type | CAT, BT, DIN 40 |
| Feedratesrapid Traverse Xyz Axis | 1,259, 1,259, 945 in/min (32, 32, 24 m/min) |
| Max Programmable Feedrate | 945 in/min (24 m/min) |
| Rapid Traverse B C Axis | 90, 100 rpm |
| Sizemax Operating Floor Space | 222.9 x 154.4 in (5,662 x 3,921 mm) |
| Machine Height | 129.8 in (3,298 mm) |
| Machine Weight | 23,980 lb (10,900 kg) |
| Electricalpower Rating Full Load Kva | 70 KVA |
Specifications sourced from hurco.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 60 inches of X travel with 5-axis swivel-head access covers oversized parts that most 5-axis machines can't reach
- 1,360 kg (3,000 lb) table load supports heavy steel castings and forgings without weight concerns
- 36.5 kW (48 hp) spindle is the most powerful in Hurco's SRT lineup, driving through large cuts aggressively
- 90 RPM B-axis rapid is the fastest in the VMX SRT family, minimizing repositioning time
- 10,900 kg machine weight provides excellent vibration damping for heavy cuts on large workpieces
- 66 x 26 inch fixed table accommodates large workpieces and multi-part fixturing setups
Limitations
- 5,662 x 3,921 mm footprint requires substantial floor space that many shops cannot dedicate
- 32/24 m/min linear rapids are slower than smaller VMX models, adding non-cutting time on complex programs
- 70 KVA power draw requires serious electrical infrastructure planning
- CAT 40 taper may be undersized for the heaviest cuts this machine's envelope and power can support
- 10,900 kg weight requires a reinforced concrete foundation designed for concentrated dynamic loads
Best For
Frequently Asked Questions
01
New pricing runs $320,000-$420,000 depending on options. Through-spindle coolant, probing, and chip management systems are essential at this machine size. Used machines from 2016-2021 sell for $180,000-$280,000 depending on hours and condition.
02
The SRTi handles 1,360 kg vs 400 kg on the table, has a larger fixed table (66x26 vs 19.7" rotary), 90 mm more Z travel (610 vs 520 mm), and faster B/C rapids. The Ui has a simpler trunnion mechanism and costs $70-90K less. Choose the SRTi for heavy, large parts; the Ui for lighter parts where trunnion accuracy is preferred.
03
For heavy steel work, a 50-taper spindle provides significantly more rigidity and power. The VMX60SRTi's 40-taper CAT 40 is adequate for aluminum and moderate steel work, but for production heavy-metal cutting, consider Hurco's HM1700Ri (CAT 50) or competitors' 50-taper 5-axis offerings.
04
Plan for a reinforced concrete pad at least 250 mm thick, designed for 10,900 kg static load plus dynamic cutting forces. Anchor bolts are critical. Hurco provides a detailed foundation plan with recommended reinforcement and grouting specifications.
05
Yes. The fixed table can be used as a standard 3-axis work surface with the full 1,360 kg load capacity. Many shops use the SRTi as a dual-purpose machine — 5-axis work on the rotary table and large 3-axis work on the surrounding fixed table area.
