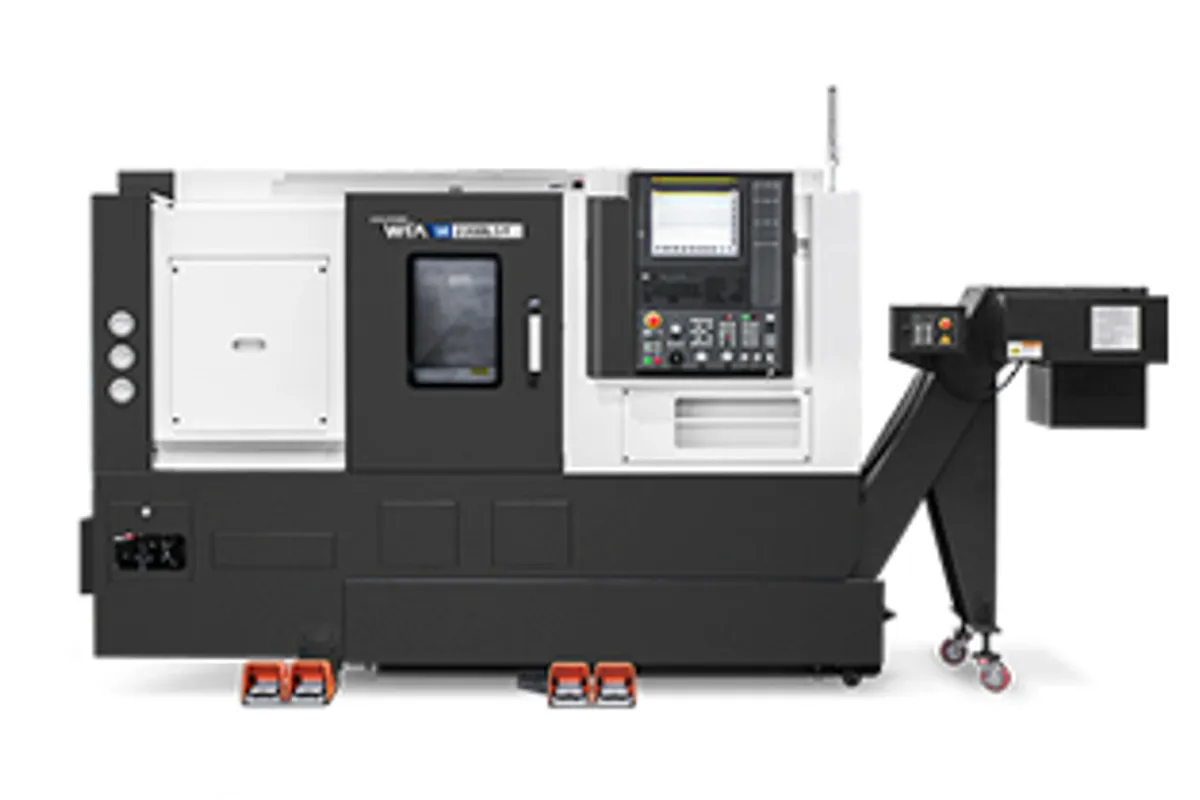

Hyundai WIA SE2200YA Series
Key Specifications
Max Spindle
Rapid Traverse
Spindle Power
Max Turn Length
max turning diameter
chuck size
Overview
The Hyundai WIA SE2200YA Series is a compact Y-axis CNC turning center built on the SE2200A platform with a 6-inch chuck and built-in spindle reaching 6,000 RPM. The YA designation indicates a smaller chuck (A = 6-inch) combined with Y-axis and live tooling capability, optimized for high-speed production of small-diameter precision parts requiring off-center milling operations.
The built-in spindle delivers 15/11 kW (20/15 hp) at up to 6,000 RPM with 127/70 N.m of torque. The built-in design eliminates belt vibration for the smoothest possible surface finishes at high speed, critical when machining small-diameter medical, electronics, and precision components. The 6-inch hydraulic chuck is sized appropriately for bar-fed production of small parts, with approximately 51 mm bar capacity through the spindle.
Y-axis travel of approximately 100 mm enables off-center milling, cross-drilling, and tapping through the BMT55P wedge-type turret with 6,000 RPM live tooling. The 12-station turret with 20/32 mm tooling provides ample capacity for complex multi-operation programs. Roller guideways on the 30-degree one-piece bed deliver the combination of speed and rigidity needed for high-volume production, with rapid traverse rates of 30/10/36 m/min on X/Y/Z.
New SE2200YA machines price between $70,000 and $100,000, making this the most affordable Y-axis turning center in Hyundai WIA's lineup. The SE2200YA competes with the DN Solutions Lynx 2100A MY, Haas ST-10Y, and similar compact Y-axis lathes. For shops machining small, complex parts that require both turning and milling operations at high production rates, the SE2200YA delivers 6,000 RPM speed with Y-axis versatility.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | 260 mm (10.2 in) |
| Max Turning Length | mm |
| Chuck Size | inch |
| Bar Capacity | 51 mm (2 in) |
| Max Spindle Speed | 6,000 RPM |
| Spindle Motor Power | 15/11 kW (20/15 hp) |
| Spindle Torque | N.m |
| Spindle Drive | Built-in |
| X Axis Travel | 170 mm (6.7 in) |
| Y Axis Travel | 100 mm (3.9 in) |
| Z Axis Travel | 310 mm (12.2 in) / 560 mm (22 in) L-variant |
| Rapid Traverse Rate | 30/10/36 m/min X/Y/Z |
| Turret Stations | 12 |
| Turret Type | BMT55P wedge-type Y-axis |
| Tool Size | mm |
| Live Tool Speed | 6,000 RPM |
| Guideway Type | Roller guideways |
| Bed Angle | 30 degrees |
| CNC Control | Fanuc 0i-TF Plus |
| Description | Unit |
| Max Turning Dia | mm |
| Spindle Rpm | r/min |
| Spindle Output | kW |
| Travel | mm |
| Rapid Travel | m/min |
| No Of Tools | EA |
| Milling Tool Speed | r/min |
| Type Of Business | Business Type 1VehiclesIT/ElectronicsMachinery/ShipbuildingComplex & Precise PartsDie&Mold IndustryEnergyOthersBusiness Type 2 |
| E Mail | @ |
Specifications sourced from wiamachine.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 6,000 RPM built-in spindle delivers the highest speed in the SE2200 family for maximum surface speed on small-diameter finishing
- Y-axis with BMT55P wedge-type turret adds off-center milling to a compact 6-inch chuck platform at an affordable price
- Built-in spindle eliminates belt vibration for superior surface finish quality on precision medical and electronics components
- Most affordable Y-axis turning center in Hyundai WIA's lineup, making Y-axis capability accessible to smaller shops
- 6,000 RPM live tooling matches the spindle speed for productive milling and drilling operations
- Roller guideway construction provides high rigidity and smooth motion for consistent quality across production runs
Limitations
- 6-inch chuck limits workpiece size — shops machining parts over 51 mm bar diameter should consider the SE2200Y (8-inch)
- 127 N.m spindle torque is modest — not suitable for heavy roughing on large-diameter or hard materials
- Standard model Z-axis travel of 310 mm limits turning length for shaft-type components
- No sub-spindle option for backworking — complete done-in-one requires the SE2200 S-type or L-SY series
Best For
Frequently Asked Questions
01
The SE2200YA has a 6-inch chuck (A = smaller) versus the SE2200Y's 8-inch chuck. The SE2200YA runs faster at 6,000 RPM versus 4,500 RPM, with a built-in spindle versus belt-driven. The SE2200Y has more torque (167 N.m versus 127 N.m) for larger parts. Choose the YA for small parts at high speed; the Y for larger parts requiring more clamping force.
02
New SE2200YA machines price between $70,000 and $100,000. The standard-bed model starts around $70,000-$85,000, while the long-bed variant with extended Z-travel reaches $85,000-$100,000. This is Hyundai WIA's most affordable Y-axis turning center.
03
Yes. With a bar feeder for continuous stock supply and a parts catcher for finished parts, the SE2200YA is well suited for lights-out production of small bar-fed components. The 12-station turret and Fanuc control with tool life management support extended unattended runs.
04
The 100 mm Y-axis travel enables milling flats and keyways, cross-drilling and tapping off-center holes, hexagonal profiling, and contour milling. The 6,000 RPM live tooling through the BMT55P turret handles milling on steel, aluminum, brass, and engineering plastics typically used in small precision components.
