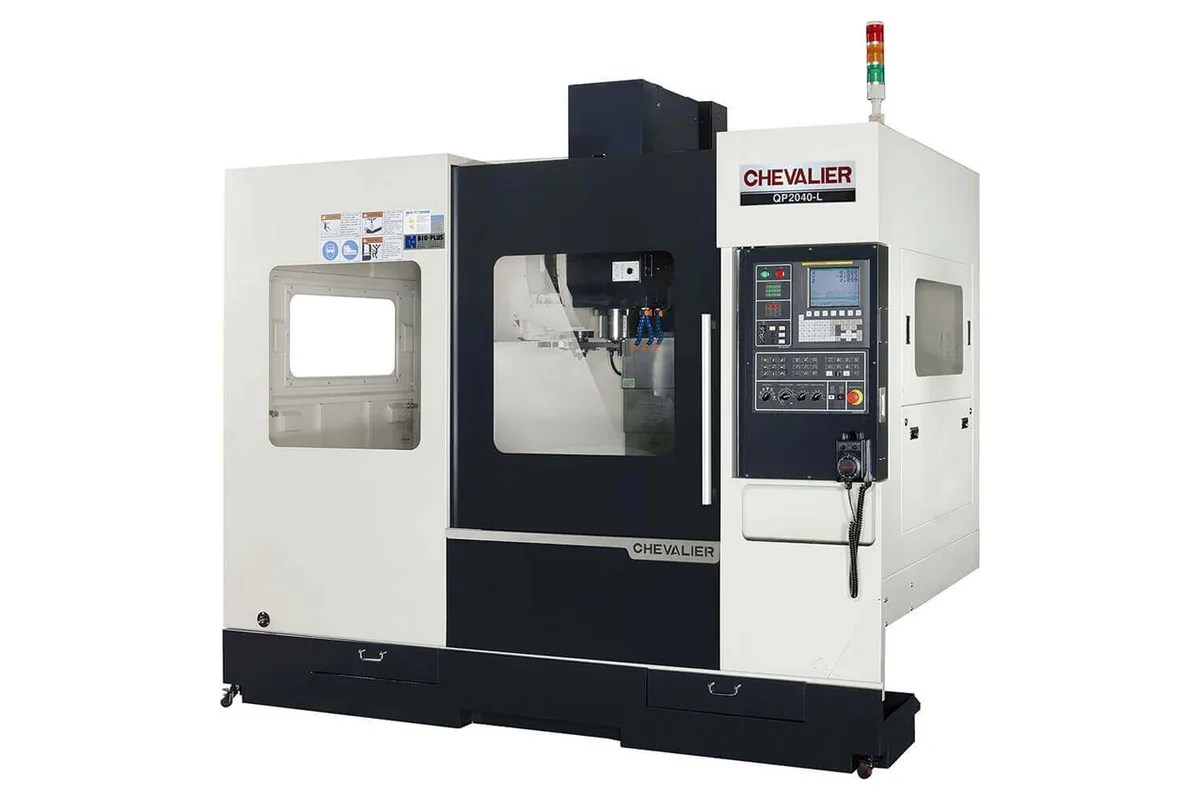

Chevalier QP2040-L
Image: chevalierusa.com, Chevalier Machinery
Key Specifications
Spindle Taper
Tool Capacity
Table Size
control
max table load
x axis travel
How much does the Chevalier QP2040-L cost?
Price estimate
We do not have a price for the Chevalier QP2040-L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Chevalier QP2040-L gives 40.2 in (1,020 mm) of X travel with a high-speed spindle, on a 47.2 in x 20.1 in (1,200 x 510 mm) table. It is the QP series model for long parts on a standard-depth machine: Y is 20.9 in (530 mm) and Z 20.1 in (510 mm), with 23.0 in (585 mm) from spindle center to column.
Two neighbours define it. The QP2033-L is the same machine with a shorter X axis and table. The QP2440-L keeps the 40.2 in X travel and adds Y, Z and throat depth on a wider table. A shop choosing among the three is really choosing how much of the part hangs in Y, since the spindle, changer and controls are the same on all of them.
That spindle is a #40 Big Plus unit with a 2.8 in (70 mm) diameter, available as belt drive at 100 to 10,000 rpm or direct drive at 120 to 12,000 rpm. The 24+1 arm type magazine changes in 2 sec tool-to-tool and holds tools up to 11.8 in (300 mm) long. Cutting feed is 39.3 to 393 ipm.
The table accepts 1,320 lb (600 kg), and the spindle nose ranges from 5.1 in to 25.2 in (130 to 640 mm) above it. Net weight is 13,600 lb (6,200 kg) on a footprint of 110.2 in x 118.9 in, with the enclosure 116.7 in high. Chevalier lists high pressure coolant and directly coupled ball screws and servo motors for the series. As with the QP2033-L, the maker's rapid traverse row for this model is not printed cleanly and is left out.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | Fanuc 0i-M |
| Table Size | 47.2 in x 20.1 in (1,200 x 510 mm) |
| Max Table Load | 1,320 lb (600 kg) |
| X Axis Travel | 40.2 in (1,020 mm) |
| Y Axis Travel | 20.9 in (530 mm) |
| Z Axis Travel | 20.1 in (510 mm) |
| Distance Spindle Nose to Table | 5.1 in to 25.2 in (130 to 640 mm) |
| Distance Spindle Center to Column | 23.0 in (585 mm) |
| Spindle Taper | #40 Big Plus |
| Spindle Speed | Belt drive: 100 to 10,000 rpm / Direct drive: 120 to 12,000 rpm |
| Spindle Diameter | 2.8 in (70 mm) |
| Cutting Feed Rate | 39.3 to 393 ipm (1 to 10 m/min) |
| Tool Capacity | 24+1 arm type |
| Tool Shank | BT40 (Opt. CT40 or DIN40) |
| Tool Change Time | 2 sec |
| Pull Stud | P40T-1 |
| Max Tool Diameter (full magazine) | 3.1 in (Ø80 mm) |
| Max Tool Length | 11.8 in (300 mm) |
| Max Tool Weight | 15.4 lb (7 kg) |
| Machine Dimensions | 110.2 in x 118.9 in x 116.7 in (2,800 x 3,020 x 2,963 mm) |
| Machine Weight | 13,600 lb (6,200 kg) |
Specifications sourced from chevalierusa.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 40.2 in (1,020 mm) X travel with a 12,000 rpm direct drive option
- 47.2 in x 20.1 in (1,200 x 510 mm) table carrying 1,320 lb (600 kg)
- 2 sec tool-to-tool change, 24+1 tools
- 2.8 in (70 mm) spindle diameter with #40 Big Plus taper
- Ball screws coupled directly to the servo motors on all linear axes, per the maker
Limitations
- Y travel is 20.9 in (530 mm); the QP2440-L offers 24.0 in (610 mm)
- Rapid traverse is not printed cleanly for this model in the maker's table
- 116.7 in (2,963 mm) enclosure height
- Table load is the same 1,320 lb (600 kg) as on the larger QP2440-L, so heavy fixtures gain nothing by staying small
Best For
Frequently Asked Questions
01
Both have 40.2 in (1,020 mm) of X travel and a 1,320 lb (600 kg) table load. The QP2440-L has 24.0 in (610 mm) of Y, 21.7 in (550 mm) of Z and a 47.2 in x 24.0 in table. The QP2040-L has 20.9 in (530 mm) of Y, 20.1 in (510 mm) of Z and a 47.2 in x 20.1 in table.
02
Belt drive at 100 to 10,000 rpm or direct drive at 120 to 12,000 rpm, both with a #40 Big Plus taper and a 2.8 in (70 mm) spindle diameter. Tool shank is BT40, with CT40 or DIN40 optional and a P40T-1 pull stud.
03
Net weight is 13,600 lb (6,200 kg). Floor space is 110.2 in x 118.9 in x 116.7 in (2,800 x 3,020 x 2,963 mm). The height is the dimension most likely to cause trouble during delivery.
04
The travels, table and table load match. The QP2040-L adds the 120 to 12,000 rpm direct drive option, a 2.8 in (70 mm) spindle diameter against 2.4 in (60 mm) on the EM2040L, and a 2 sec tool change against 3 sec.
