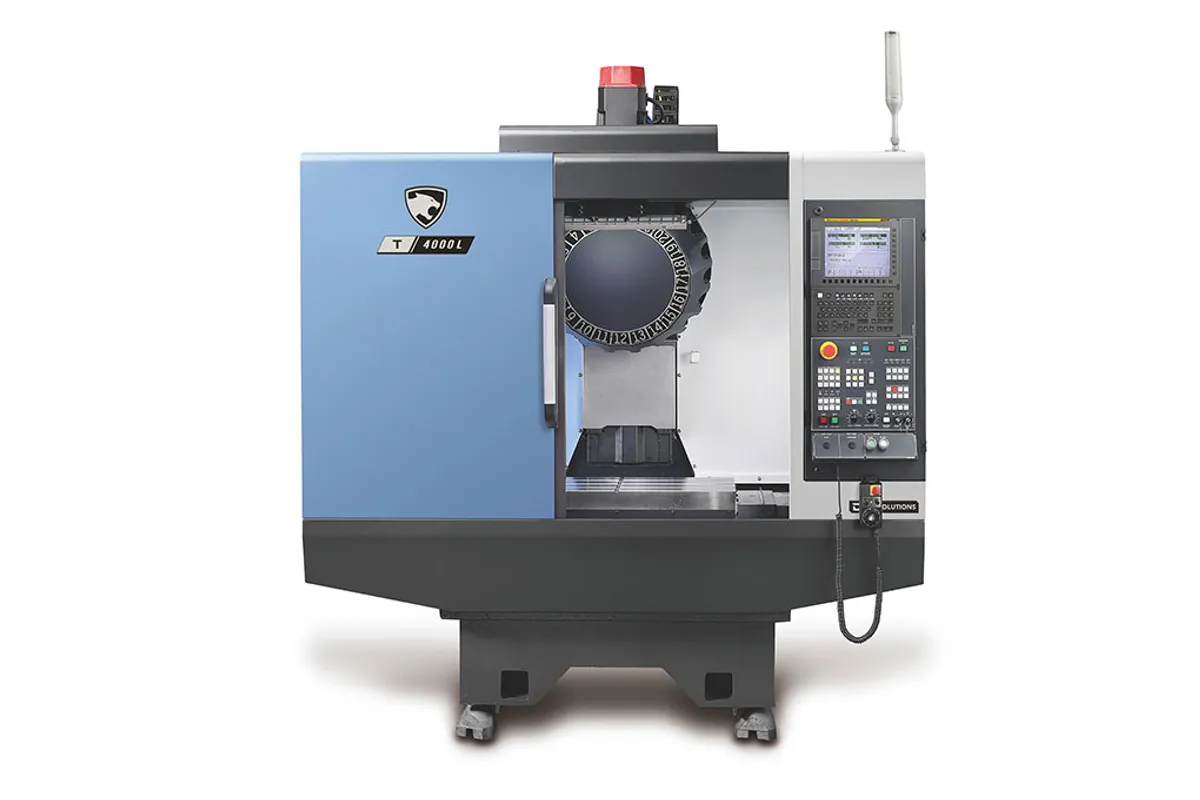

DN Solutions T 4000 L

$50,000 - $80,000 Updated 2026-03-19

Key Specifications

X Travel

350 mm (14 in)

Y Travel

700 mm (28 in)

Z Travel

400 mm (14 in)

Max Spindle

12,000 RPM

Table Size

850 x 400 mm (33 x 16 in)

Spindle Power

13 kW (17 hp)

Overview

The DN Solutions T 4000 L is the long-bed variant of DN Solutions' compact tapping center lineup. The "L" means extended Y-axis — 700 mm (28 in) versus 520 mm on the standard T 4000 — which opens up this machine to longer parts and multi-part fixtures that the standard model can't accommodate. The table grows to 850 x 400 mm to match, giving you more real estate for fixturing without leaving the compact tapping center class.

The spindle runs at 12,000 RPM with 13 kW (17 hp) and 82.7 Nm of torque through a standard taper. That's a balanced spindle for general-purpose production work — enough speed for efficient aluminum machining, enough torque for drilling and tapping steel. The X and Z travels remain at 350 mm and 400 mm respectively, so the machine stays compact in the directions that matter for floor space. At 300 kg table load capacity, you can run heavier fixtures than the HS model allows.

The T 4000 L fits a specific production niche: shops making parts that are too long for the standard T 4000 but don't need (or can't justify) a full-size VMC. Think about long brackets, rails, cover plates, or multi-cavity fixtures holding several small parts in a row along the Y-axis. At 3,000 kg machine weight, installation is dead simple. The FANUC control makes programming and operation identical to the rest of the T 4000 family, so operators move between models without retraining.

Full Specifications

Parameter	Value
X-Axis Travel	350 mm (14 in)
Y-Axis Travel	700 mm (28 in)
Z-Axis Travel	400 mm (14 in)
Max Spindle Speed	12,000 RPM
Spindle Motor Power	13 kW (17 hp)
Spindle Torque	82.7 Nm (61 ft-lb)
Table Size	850 x 400 mm (33 x 16 in)
Table Load Capacity	300 kg (661 lb)
Machine Weight	3,000 kg (6,614 lb)
CNC Control	FANUC 0i-Plus with iHMI
Max Spindle Speed	12000 r/min
X Axis Travel Distance	350 mm
Y Axis Travel Distance	700 mm
Metric	IMPERIAL
Travels	X-Axis Travel DistanceY-Axis Travel DistanceZ-Axis Travel Distance
Feed Rates	X-Axis Rapid TraverseY-Axis Rapid TraverseZ-Axis Rapid Traverse
Main Spindle	Max. Spindle SpeedMax. Spindle PowerMax. Spindle Torque
Table	Table LengthTable WidthMaximum Workpiece weight
Dimensions	LengthHeightWidthWeight
Favorites	T 4000LHS

Specifications sourced from dn-solutions.com — verified 2026-03-28

Strengths & Limitations

Strengths

700 mm Y-axis travel accommodates longer parts and multi-part fixtures that the standard T 4000 can't handle
82.7 Nm spindle torque is significantly more than the HS model, enabling steel drilling and tapping alongside aluminum work
850 x 400 mm table provides generous fixturing space for the tapping center class
Compact X and Z footprint keeps floor space requirements minimal despite the extended Y-axis
3,000 kg machine weight means hassle-free installation on standard shop floors
Balanced 12,000 RPM spindle handles both aluminum speed work and steel production effectively

Limitations

350 mm X-travel remains compact — parts wider than about 300 mm need a full-size VMC
13 kW spindle power limits heavy milling capability compared to the T 4000 HP's 36 kW
400 mm Z-travel restricts tall parts and deep-cavity work
Extended Y-axis adds cycle time on long traverses compared to the shorter standard models

Best For

Production shops running longer parts that exceed the standard tapping center's Y-axis travel Multi-part fixture setups where parts are arranged along the Y-axis for batch processing Shops making brackets, rails, cover plates, and other elongated components in production volumes Facilities needing a versatile tapping center that handles both aluminum and mild steel work Production cells where the extended Y-travel eliminates the need for a larger, more expensive VMC

Frequently Asked Questions

01 What does a DN Solutions T 4000 L cost?

New T 4000 L machines run $50,000-$80,000 depending on options. The base machine starts around $50,000-$60,000. Adding through-spindle coolant, probing, chip conveyor, and automation interface pushes pricing to $70,000-$80,000. Pricing is similar to the standard T 4000 models with a small premium for the extended bed.

02 What's the difference between the T 4000 L and T 4000 LHS?

Both have the extended 700mm Y-axis travel. The T 4000 L runs a 12,000 RPM spindle with 13 kW and 82.7 Nm torque — a balanced general-purpose spindle. The T 4000 LHS runs at 24,000 RPM with 11 kW and 17.5 Nm — a high-speed aluminum spindle. Choose the L for mixed materials; choose the LHS for pure high-speed aluminum production.

03 Can the T 4000 L replace a small VMC?

For parts that fit within 350mm X-travel and 400mm Z-travel, yes. The extended 700mm Y-travel actually exceeds some small VMCs. The 82.7 Nm torque handles drilling and tapping in steel effectively. But for parts needing more X or Z travel, or for heavy milling operations, a DNM 4000 or DNM 4500 is the right choice.

04 How many parts can I fixture on the extended table?

The 850x400mm table with 700mm Y-travel accommodates significantly more parts than the standard 650x400mm table. For typical small production parts (50-75mm each), you can fit 8-12 parts in a multi-part fixture along the Y-axis, versus 4-6 on the standard model. That roughly doubles your parts-per-load without increasing cycle time proportionally.
