HNK HPM-35H (35x60)
Key Specifications
Max Spindle
Spindle Taper
Table Size
Spindle Power
distance between columns
distance spindle nose to table
How much does the HNK HPM-35H (35x60) cost?
Price estimate
We do not have a price for the HNK HPM-35H (35x60) that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The HNK HPM-35H (35x60) is wide for its length. A 3,500 x 6,000 mm (137.8 x 236.2 in) table sits between columns 4,500 mm (177.2 in) apart, and the head crosses 5,500 mm (216.5 in) in Y, not far short of the 6,250 mm (246.1 in) of X.
Near-square working areas like this suit a specific kind of tool: large one-piece dies for roofs, floors and truck cabs, and the big compression and thermoforming molds used for composite panels. Such tools are broad in both directions and seldom long enough to need eight metres.
Table load is 30,000 kg (66,138 lb). The frame is the tall one introduced with the HPM-30H, giving 2,000 mm (78.7 in) between table and spindle end, 2,350 mm (92.5 in) in braces, with 1,500 mm (59.1 in) of W and 800 mm (31.5 in) of Z in a 400 x 400 mm (15.7 x 15.7 in) ram.
A long crossrail span is harder on accuracy than a short one, because the head's weight bends the rail most at mid-travel. HNK does not publish accuracy data for the series, so it is a point to raise. The spindle is ISO No.50, 6,000 rpm with 8,000 rpm in braces, at 22/25 kW (29.5/33.5 hp), cont/30min.
Full Specifications
| Parameter | Value |
|---|---|
| Distance Between Columns | 4,500 mm (177.2 in) |
| Distance Spindle Nose to Table | 2,000 mm (78.7 in) {2,350 mm (92.5 in)} |
| X Axis Travel | 6,250 mm (246.1 in) |
| Y Axis Travel | 5,500 mm (216.5 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| W Axis Travel | 1,500 mm (59.1 in) |
| Table Size | 3,500 x 6,000 mm (137.8 x 236.2 in) |
| Max Table Load | 30,000 kg (66,138 lb) |
| Spindle Taper | ISO No.50 |
| Spindle Diameter | Ø100 mm (3.9 in) |
| Ram Size | 400 x 400 mm (15.7 x 15.7 in) |
| Max Spindle Speed | 6,000 rpm {8,000 rpm} |
| Spindle Motor Power | 22/25 kW (29.5/33.5 hp) (cont/30min) |
| CNC Control | Fanuc 31i-B, Siemens 840D |
Specifications sourced from en.hnkkorea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Y travel of 5,500 mm (216.5 in) on a six-metre machine
- 4,500 mm (177.2 in) between columns
- 30,000 kg (66,138 lb) table load
- 2,000 mm (78.7 in) under the spindle, 2,350 mm (92.5 in) in braces
Limitations
- No accuracy figures published for a crossrail of this span
- X travel of 6,250 mm (246.1 in) is no longer than on the HPM-20H (20x60)
- Ø100 mm (3.9 in) spindle with 22/25 kW
Best For
Frequently Asked Questions
01
The table is 3,500 mm (137.8 in) wide and 6,000 mm (236.2 in) long. Effective distance between columns is 4,500 mm (177.2 in) and Y travel 5,500 mm (216.5 in).
02
Width and load. The HPM-30H (30x60) has a 3,000 mm wide table, 4,000 mm (157.5 in) between columns, 5,000 mm (196.9 in) of Y and 25,000 kg (55,115 lb). The HPM-35H (35x60) has 3,500 mm, 4,500 mm, 5,500 mm and 30,000 kg.
03
Yes. The HPM-35H (35x80) has a 3,500 x 8,000 mm (137.8 x 315.0 in) table and 8,250 mm (324.8 in) of X travel, with the same load rating and head.
04
800 mm (31.5 in) in Z, in a 400 x 400 mm (15.7 x 15.7 in) ram. The crossrail adds 1,500 mm (59.1 in) of W travel, so tall work is reached by raising the rail, not by extending the ram.
More from HNK
Other Vertical Machining Centers (VMC)
Vision Wide GSA-5027
Feeler SVW-2113

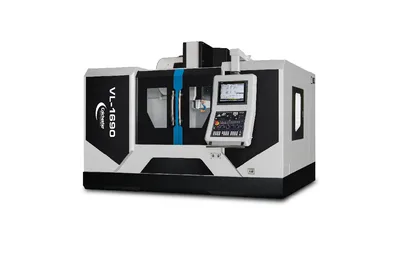

Colchester Storm VL-1690
